PN Racing | SKU:
500840
Sold out
PN Racing Anima V4 30A 1/28 Sensored Brushless ESC
Regular price
$89.99
Unit price
PN Racing Anima V4 30A 1/28 Sensored Brushless ESC is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at ICRC Complex
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
PN Racing Anima V4 30A 1/28 Sensored Brushless ESC is backordered and will ship as soon as it is back in stock.
Description
Description
FEATURES:
Small size: Tinny size, design for 1/27 1/28 class
Extremely high output: Current 30A , powerful output support
Extremely light: Greatly reduced vehicle weight
Multi setting: Multi adjustable parameter items support, created for competition
Excellent heat dissipation: Full metal CNC housing, perfect combination of shaped and function)
Small size: Tinny size, design for 1/27 1/28 class
Extremely high output: Current 30A , powerful output support
Extremely light: Greatly reduced vehicle weight
Multi setting: Multi adjustable parameter items support, created for competition
Excellent heat dissipation: Full metal CNC housing, perfect combination of shaped and function)
SPECIFICATION:
Input Voltage: 2S LiPo 6V-8.4V
BEC: 6V/7.4V 3A
Continues Current: 30A
Peak Current: 80A
Motor Size Limit: 1525 1626
Motor Maximum: 10000kv with 0 deg timing
Size: 19.5x13.7x11.0mm (not include the plug)
Weight: 7.1g (without any wire installed)
Input Voltage: 2S LiPo 6V-8.4V
BEC: 6V/7.4V 3A
Continues Current: 30A
Peak Current: 80A
Motor Size Limit: 1525 1626
Motor Maximum: 10000kv with 0 deg timing
Size: 19.5x13.7x11.0mm (not include the plug)
Weight: 7.1g (without any wire installed)

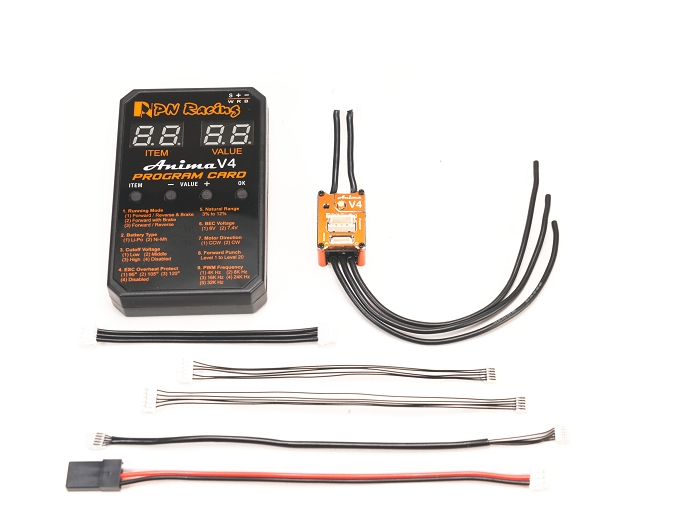

PACKAGE INCLUDED:
1 x Anima V4 30A ESC
1 x 80mm Motor Sensor Wire for #500822 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 100mm Motor Sensor Wire for #50085 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 125mm Motor Sensor Wire for Atomic; Hobbywing; MWX; Motor
1 x Wire Connector ESC to Receiver #500826
1 x JST2.0 Female plug to 2S LiPo Battery
1 x Anima V4 30A ESC
1 x 80mm Motor Sensor Wire for #500822 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 100mm Motor Sensor Wire for #50085 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 125mm Motor Sensor Wire for Atomic; Hobbywing; MWX; Motor
1 x Wire Connector ESC to Receiver #500826
1 x JST2.0 Female plug to 2S LiPo Battery
