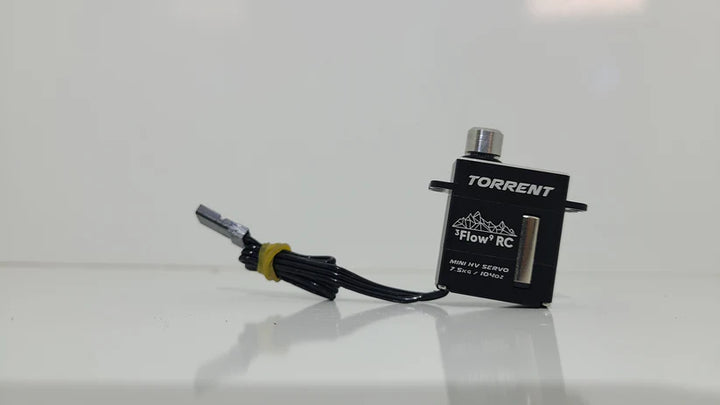

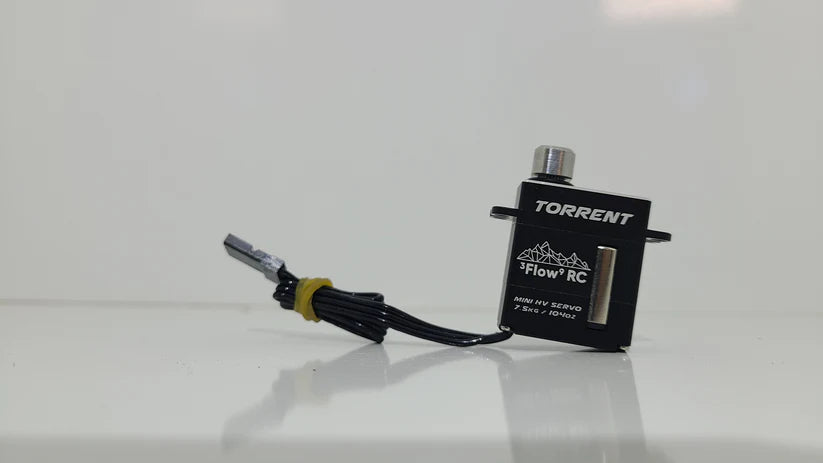

A servo designed with 1:18 - 1:24 crawlers in mind. High Voltage capable with 104 oz of torque at 8.4 volts. Servo cable comes out the bottom to not interfere with shocks. All black housing and black cable. All metal gears. Oh and it's programmable! Get the optional Program Card and you can fine tune settings as power output, center horn, soft start up, power shut off parameters. Comes with plastic Servo horn or opt for the Torrent Servo Horn made from Stainless Steel. Strongest micro Servo Horn on the planet!
Tech Specs
- High Performance Digital Micro Servo
- High Precision Metal Gears
- High Quality Coreless Motor
- Dual Ball Bearing
- Full CNC Aluminum Housing

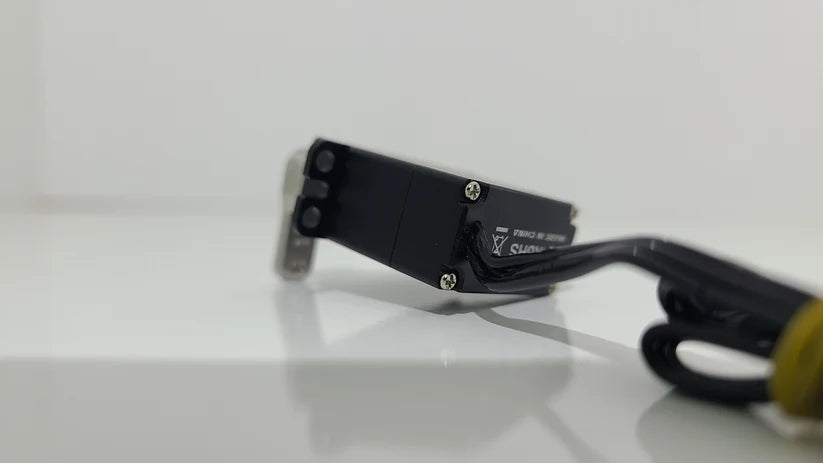

- Cable comes out the bottom for maximum clearance
Ideal for 1/24 and 1/18th scale
Specification
Operating Voltage: 4.8-8.4V
Operating speed: 0.11sec/60°@ 6.0V
Operating speed: 0.09sec/60°@ 7.4V
Operating speed: 0.08sec/60°@ 8.4V
Stall Torque: 5.8 kg-cm (80 oz-in) @ 6.0V
Stall Torque: 6.8 kg-cm (95 oz-in) @ 7.4V
Stall Torque: 7.5 kg-cm (104oz-in) @ 8.4V
Gear: Steel + Copper
Motor：Coreless
Size: 23*12*27.5mm (0.90 x 0.47 x 1.08 in)
Weight: 21g
Connector Wire: TYU 150 mm 26AWG
Here at Iron City EVERY Package Shipped is signed by the employee that packs it!
We Strive to Ship Same Day!
