Mofo RC | Lower Link Set (For Axial SCX30)

The Mofo RC lower link set provides higher rear clearance than stock and additional weight options for those looking for additional weight down low. These links utilize the stock link balls.

Weight:

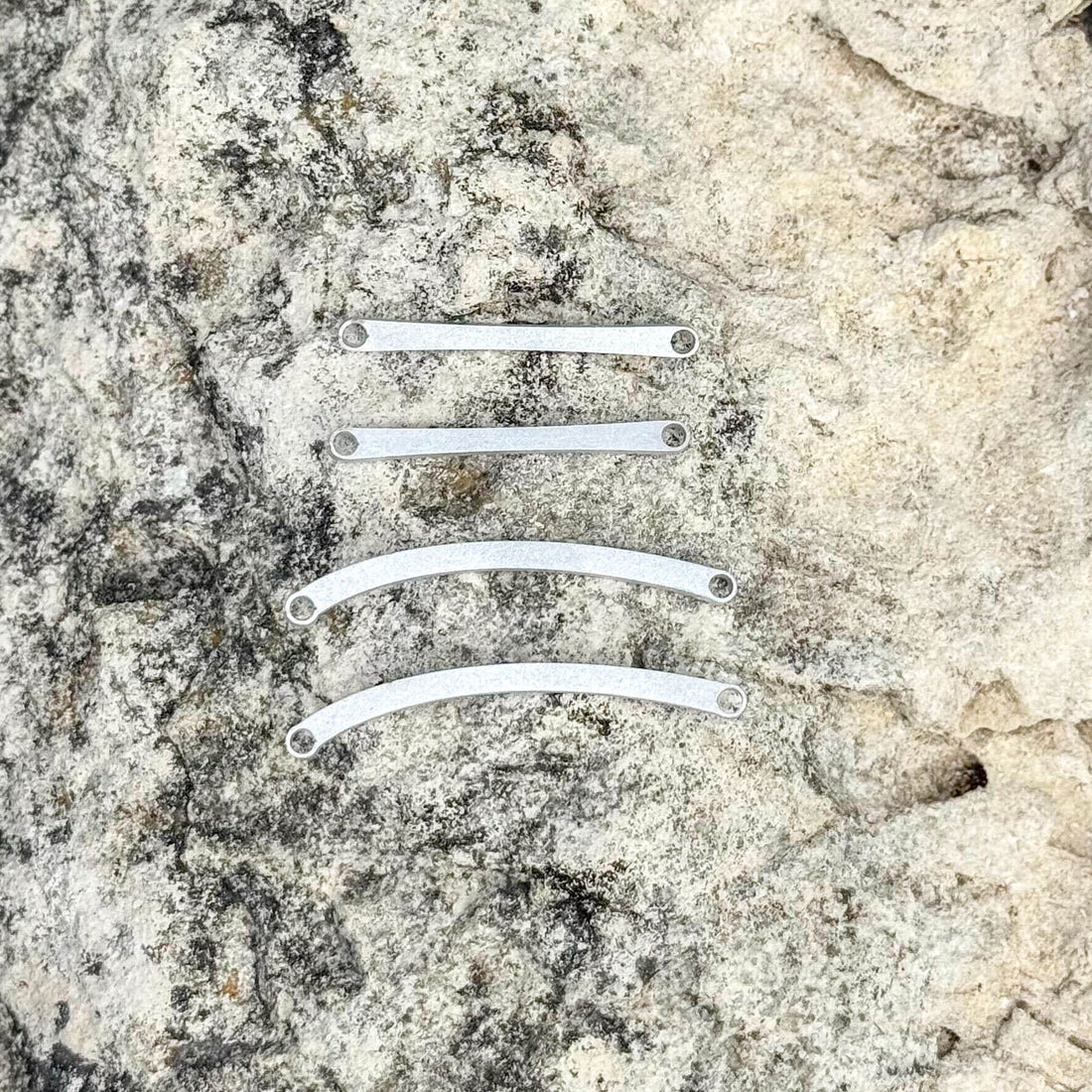

• Aluminum- 2g

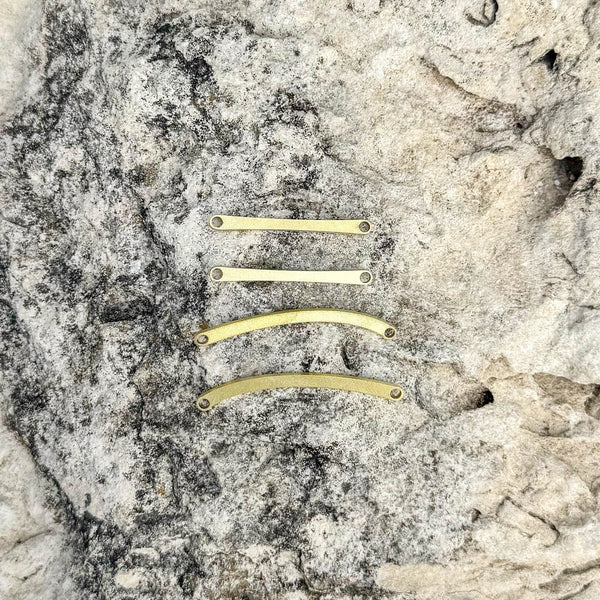

• Brass- 6g

Includes

• 2 Front Lower Links
• 2 Rear Lower Links

Install: Remove the front stock link and ball studs. The small link balls will need to be removed from the skid plate side.  BE VERY CAREFUL. These are extremely small. It’s easiest to grab both sides with needle nose pliers and carefully push the plastic off.  Install this side and then move to the axle side. The links are intentionally a tight fit so take your time.  Install the axle side by removing the shock bottom and the ball stud if needed.  It it easier to start with the axle side on the rear so you don’t have to unscrew the ball stud. Move the stock upper plastic rear links to the top ball stud on the axle side.

You’ll need to move the rear upper links to the top ball on the ball stud.

Notes:

• An o-ring can be added on one side to remove the minimal play you may experience in the links or to gain extra clearances with some shock positions. It isn't necessary given the small size, but may be helpful to some.
• We do not recommend you run the shocks on the forward most hole in the rear. You may experience binding if you use these positions since these links provide the most ground clearance possible on a stock suspension setup.
• Brass naturally tarnishes over time. They can easily be cleaned or polished for those looking for an updated appearance.
