Trail-Ready Performance

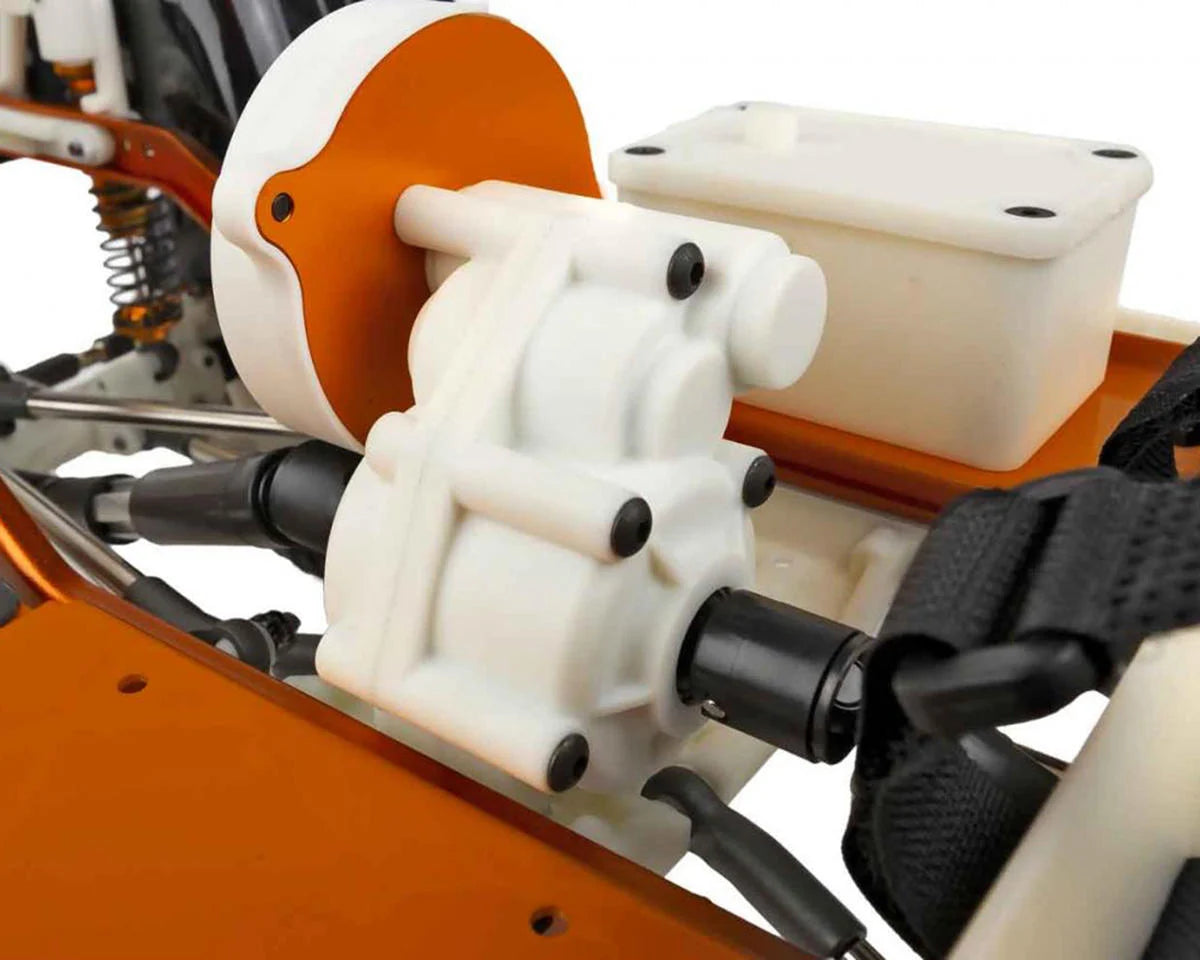

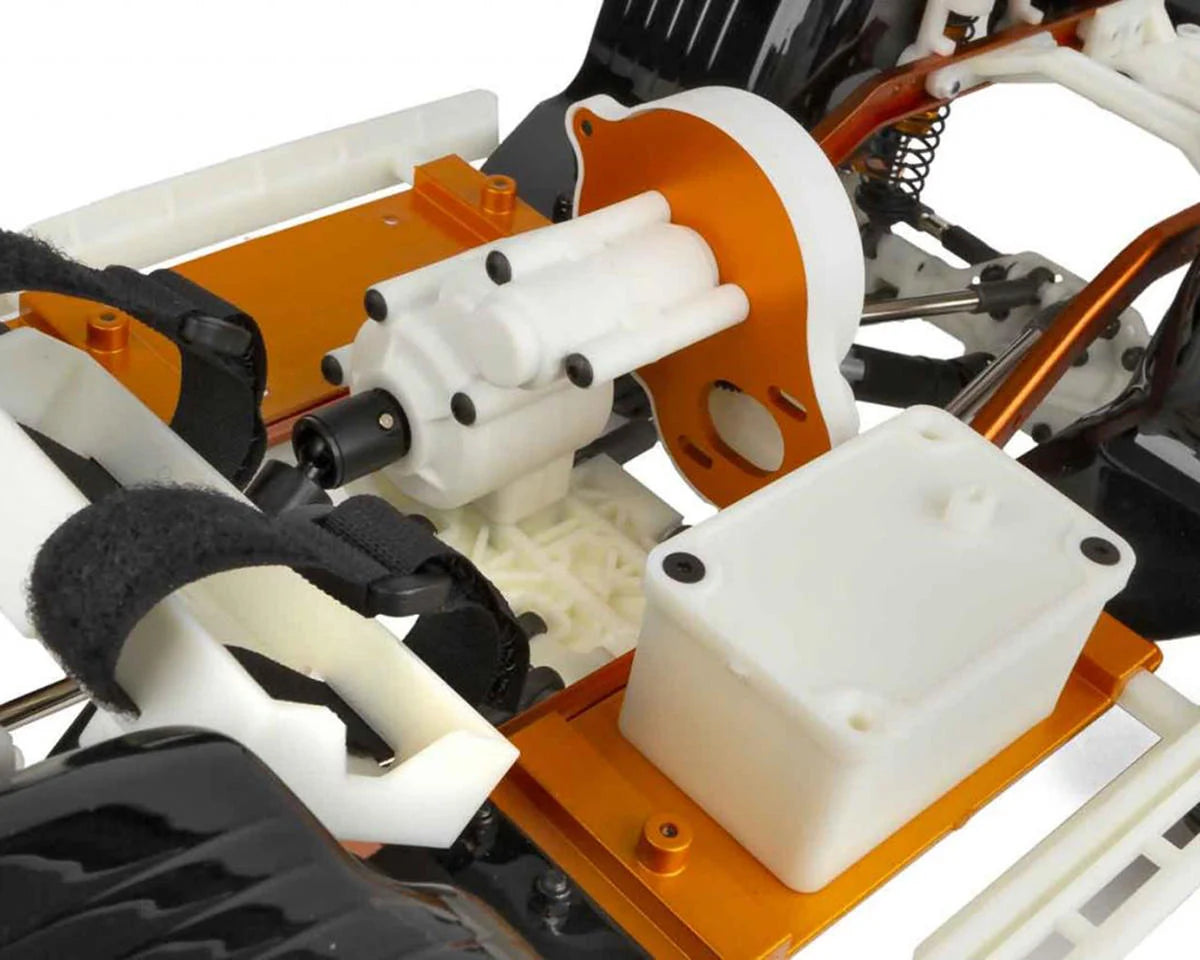

The RC10 Trail Truck Portal Kit is built for confident off-road adventures, featuring the advanced Stealth® X gearbox with adjustable front-to-rear drive ratios and a rugged Enduro drivetrain for reliable power delivery.
About the RC10 Trail Truck

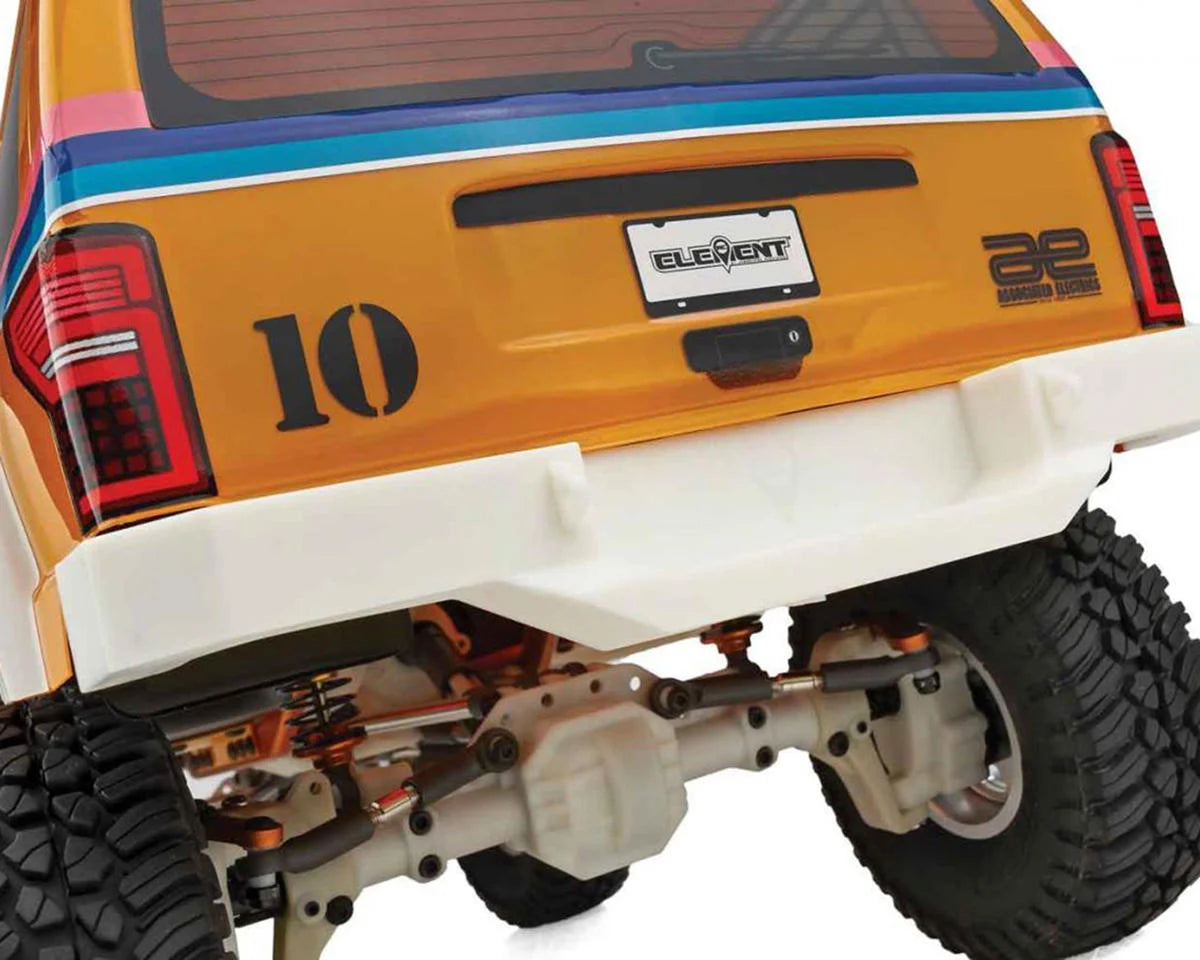

High-Clearance Portal Axles
This kit features upgraded portal axles that offer nearly an inch more ground clearance than standard straight axles, helpful for navigating rugged terrain. The axles are built with all-metal gears, durable ball bearings, and reinforced gearboxes secured with six screws to handle heavy torque loads. When paired with the Stealth® X transmission, users can achieve optimized underdrive setups for improved control and crawling ability.
Rugged Chassis and Suspension Design

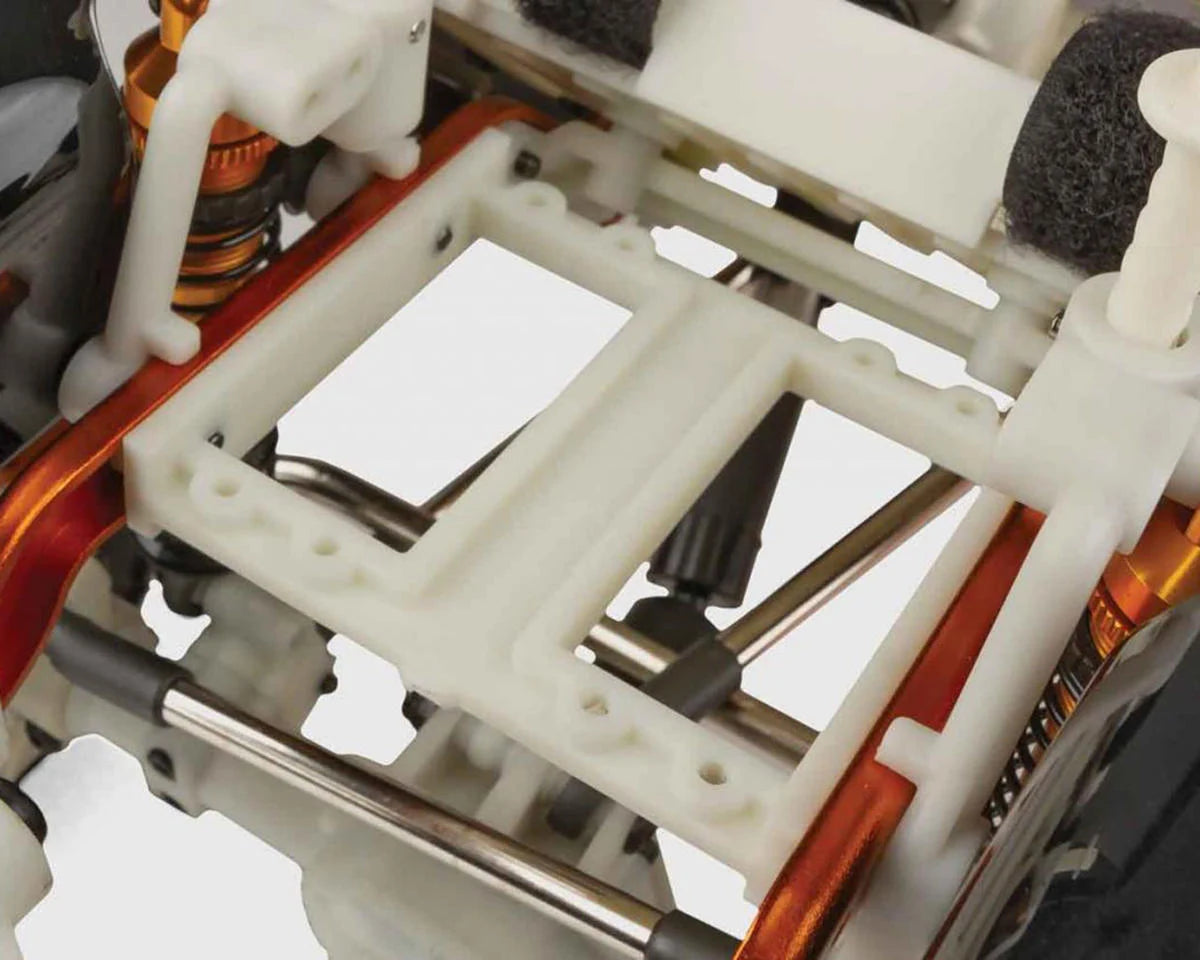

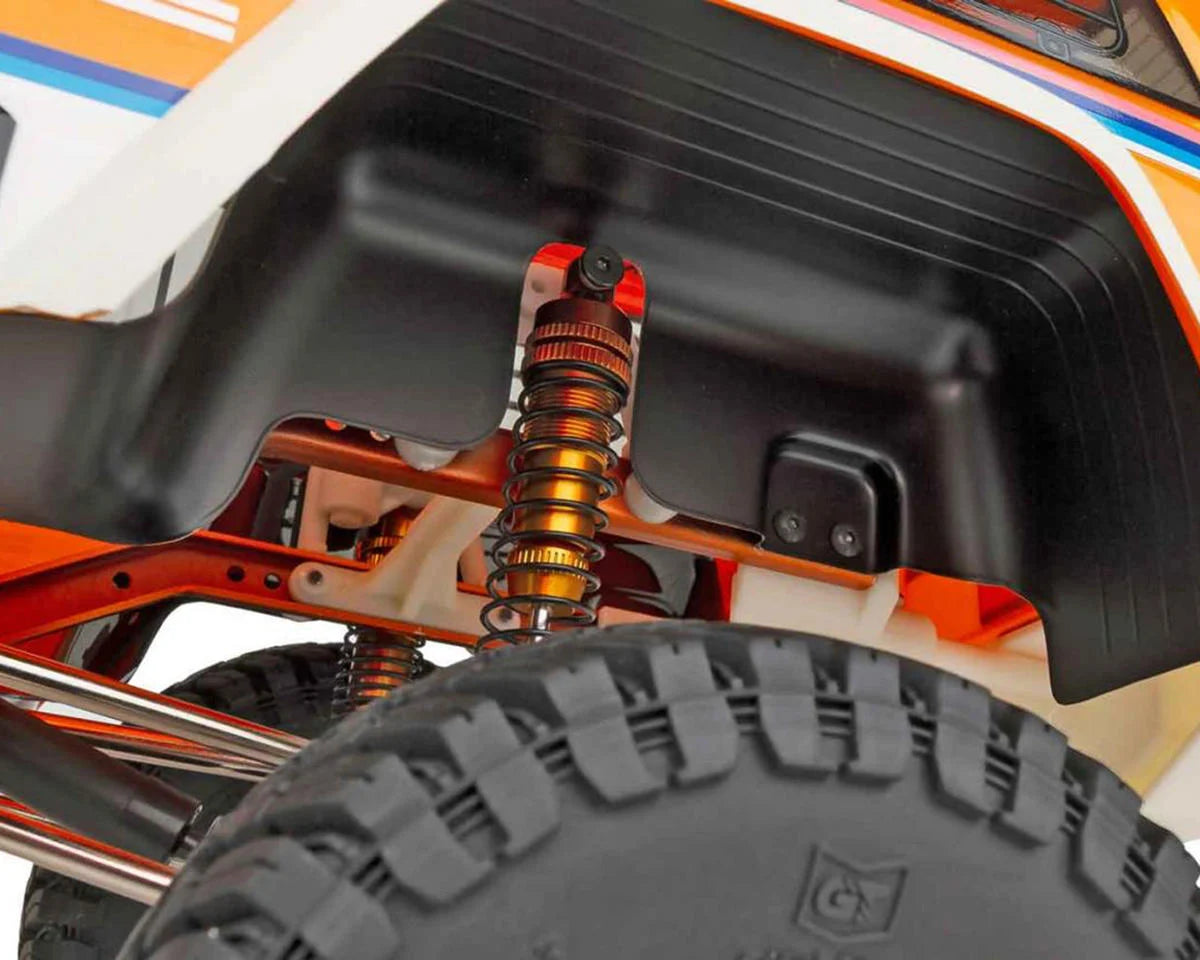

The RC10 Trail Truck’s chassis includes a behind-the-axle (BTA) steering system and aluminum steering plates for improved approach angles and customization. The factory-integrated servo/servo winch mount adds strength and ideal weight distribution. Fluid-filled, anodized aluminum shocks help maintain the vehicle's stability, even on the most challenging trails, making the truck a capable and reliable crawler straight from assembly.
Realistic Styling and Premium Components

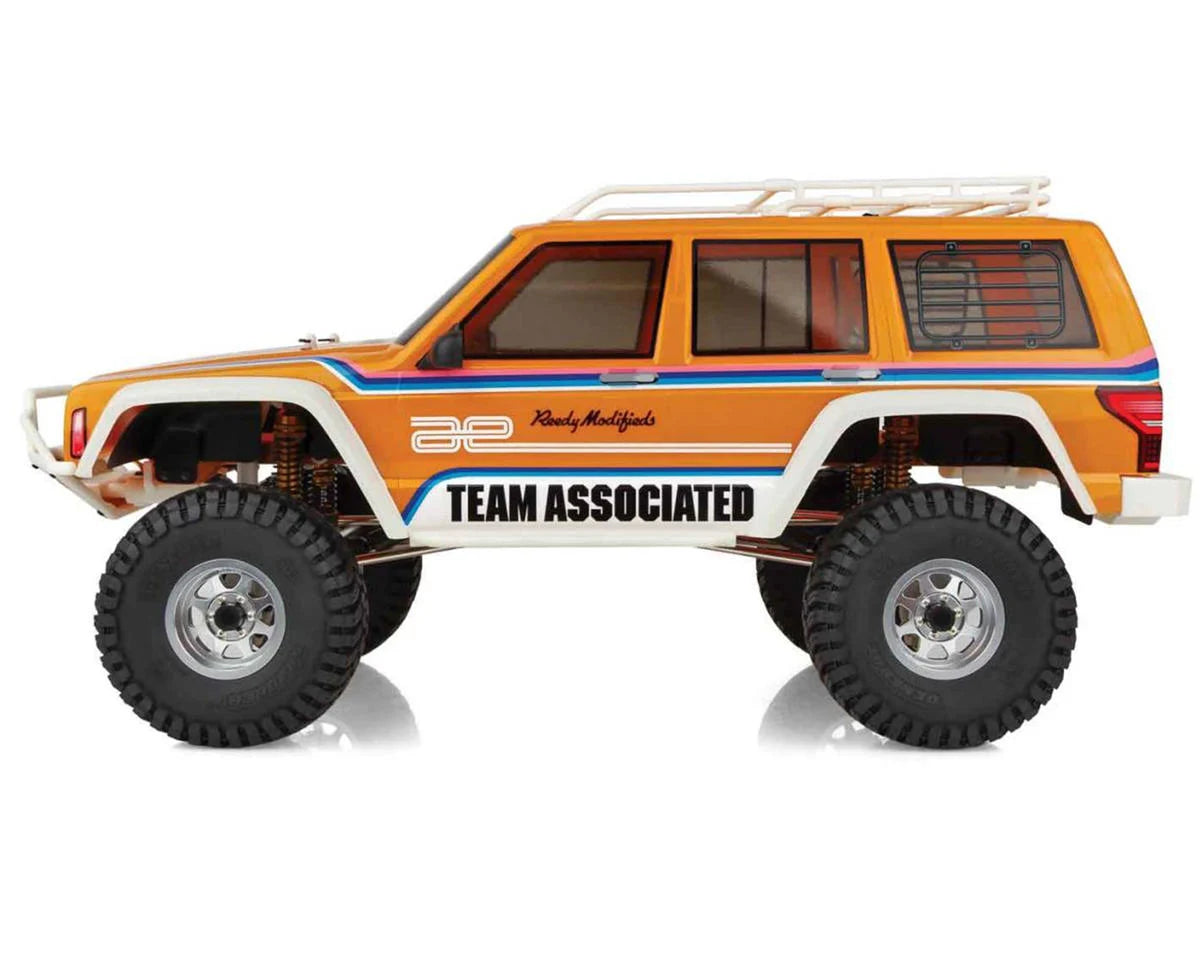

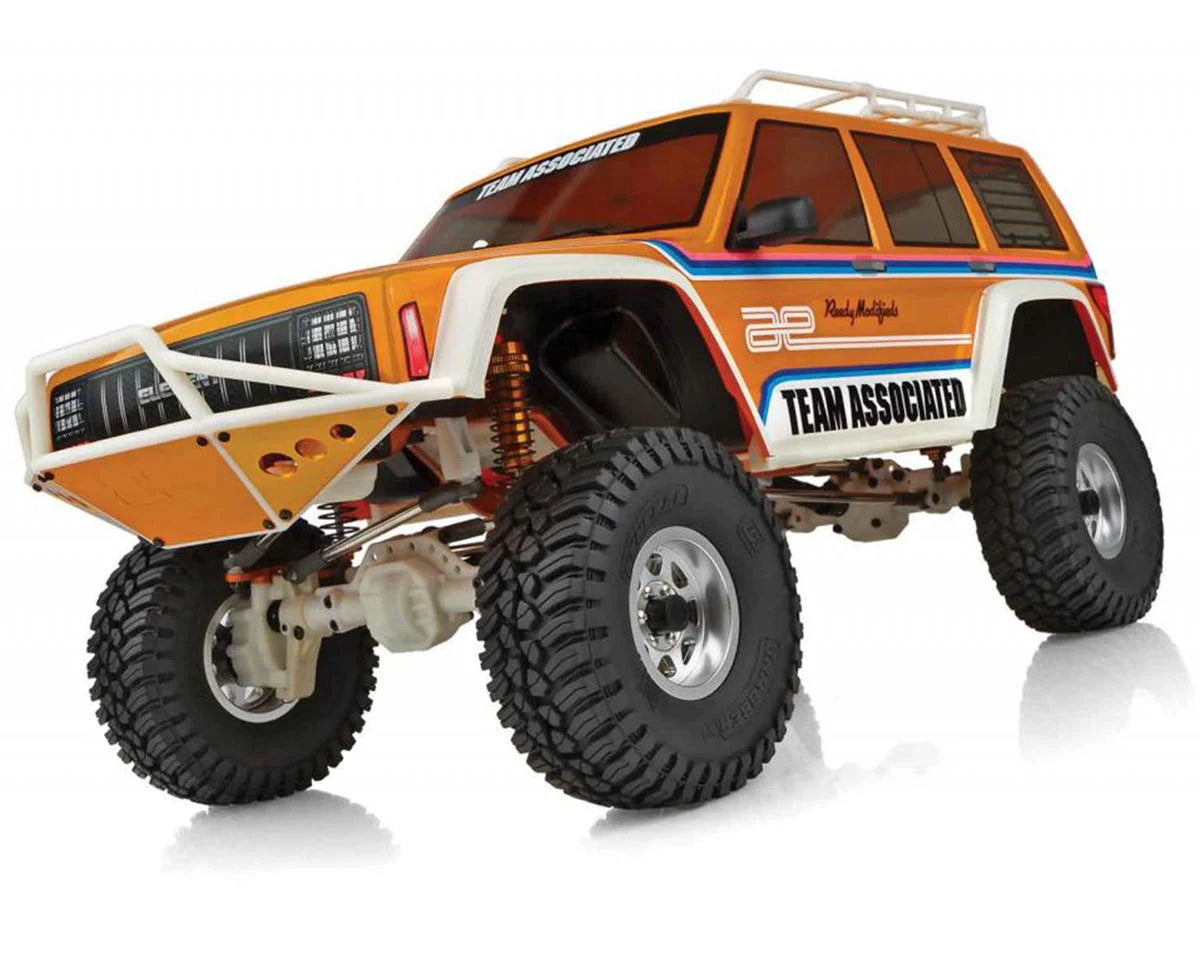

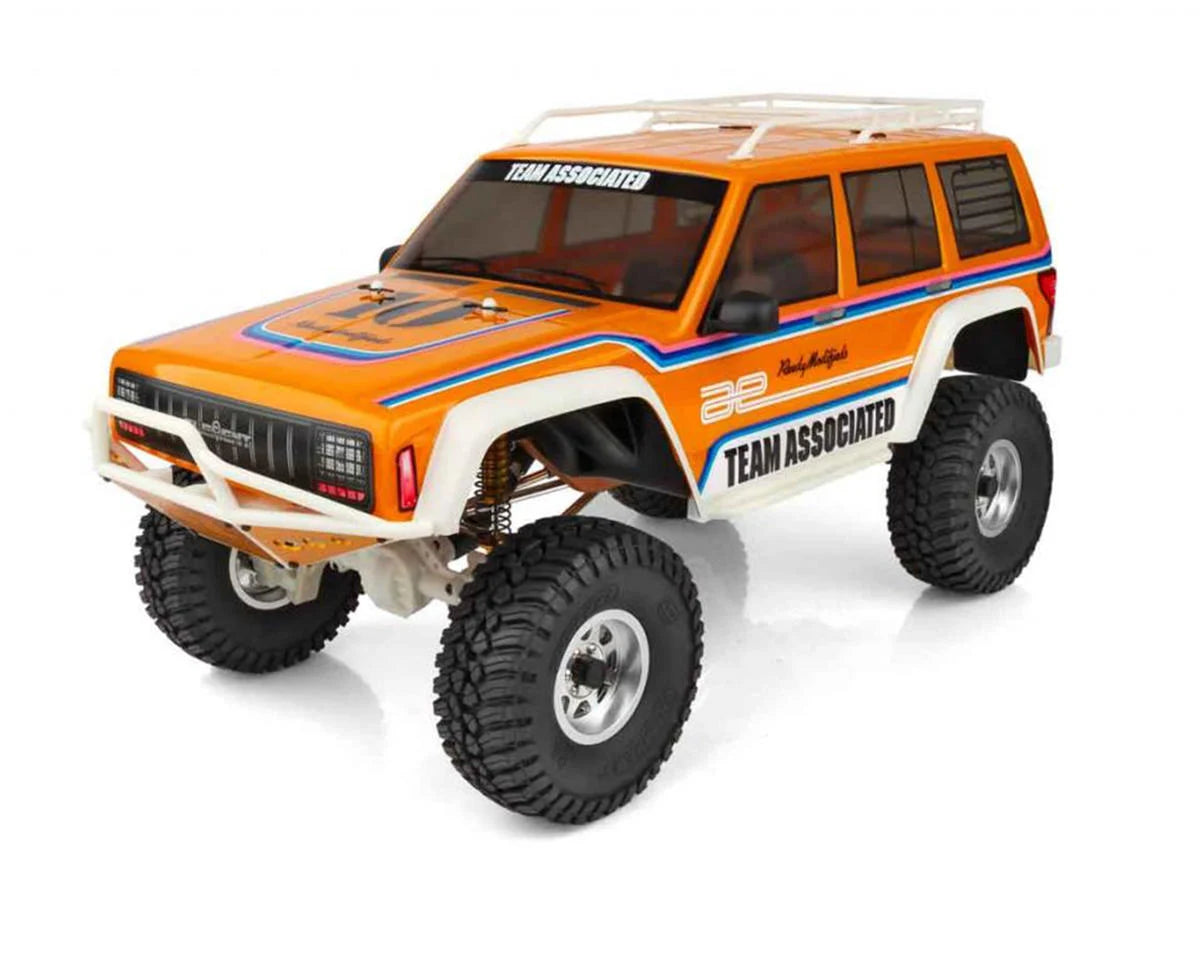

Inspired by the classic 1984 RC10 off-road buggy, this trail truck boasts a clear polycarbonate body with molded details and a tribute decal sheet. Functional accessories like roof racks and mirrors enhance realism. For traction and aesthetics, it comes equipped with officially licensed General Grabber™ X3 tires and Method 701 Trail Series beadlock wheels, ensuring both superior grip and authentic scale appearance.
Features:
- Stealth® X adjustable transmission
- High clearance portal axles
- All metal gears and reinforced gearboxes
- 3 Piece telescopic driveshafts
- BTA (Behind-The-Axle) steering
- Threaded aluminum shock bodies
- Integrated servo winch mount
- Realistic polycarbonate body
- Official General Grabber™ X3 tires
- Method 701 beadlock wheels
Includes:
- (1) RC10 Trail Truck, Portal Kit
Needed To Complete:
- (1) 2-Channel Transmitter & Receiver
- (1) Compatible Lipo or NIMH Battery
- (1) Compatible Battery Charger
- (1) High-Torque Steering Servo
- (1) 1/10 Crawler ESC
- (1) 1/10 Crawler Motor
- Paint for Body
- Tools for Assembly
Specifications:
| Scale | 1:10 |
|---|---|
| Drive | 4WD |
| Length | 18.19in (462mm) |
| Wheelbase | 12.8in (325mm) |
| Width | 9.29in (236mm) |
| Height | - |
| Weight | varies |
| Assembly Level | Kit* |
