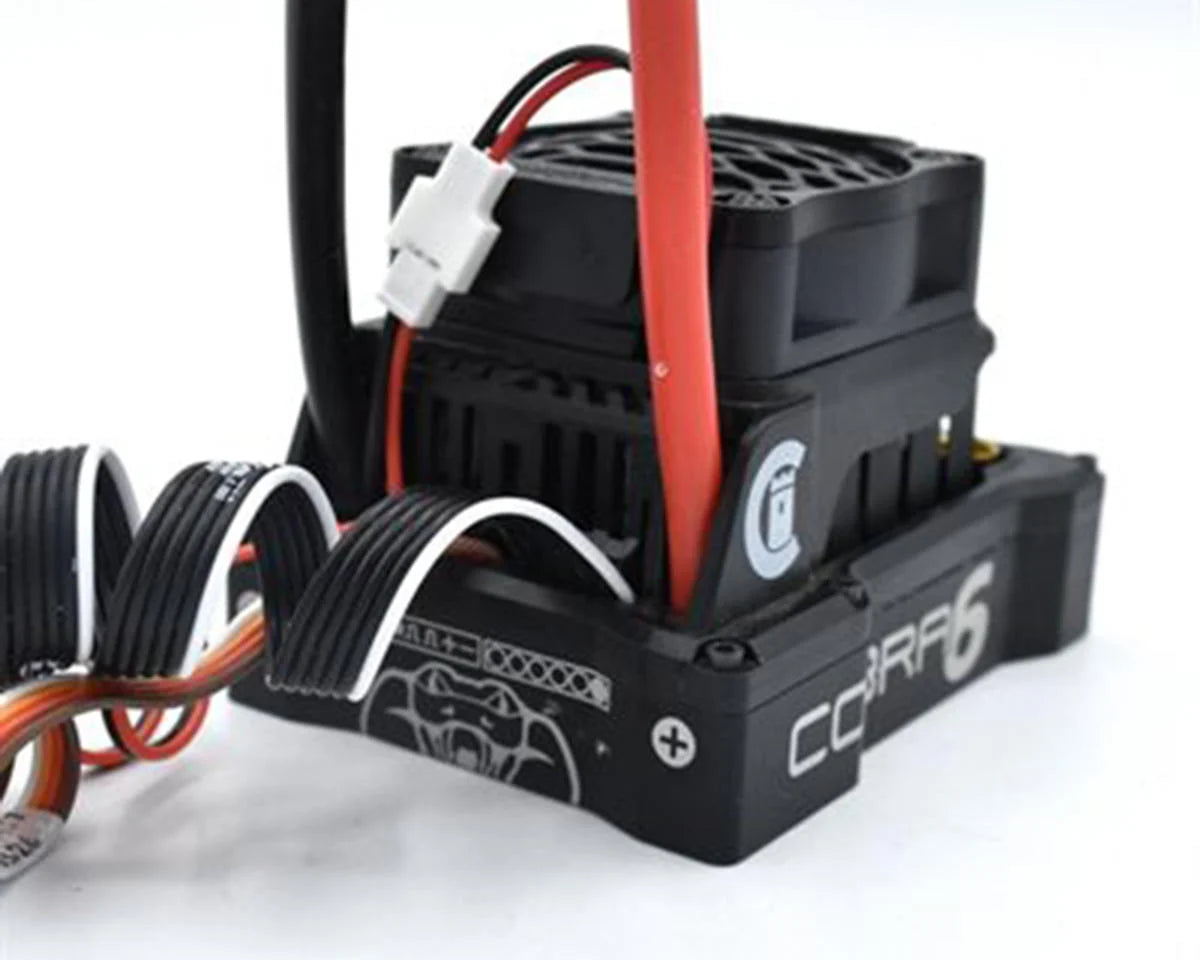

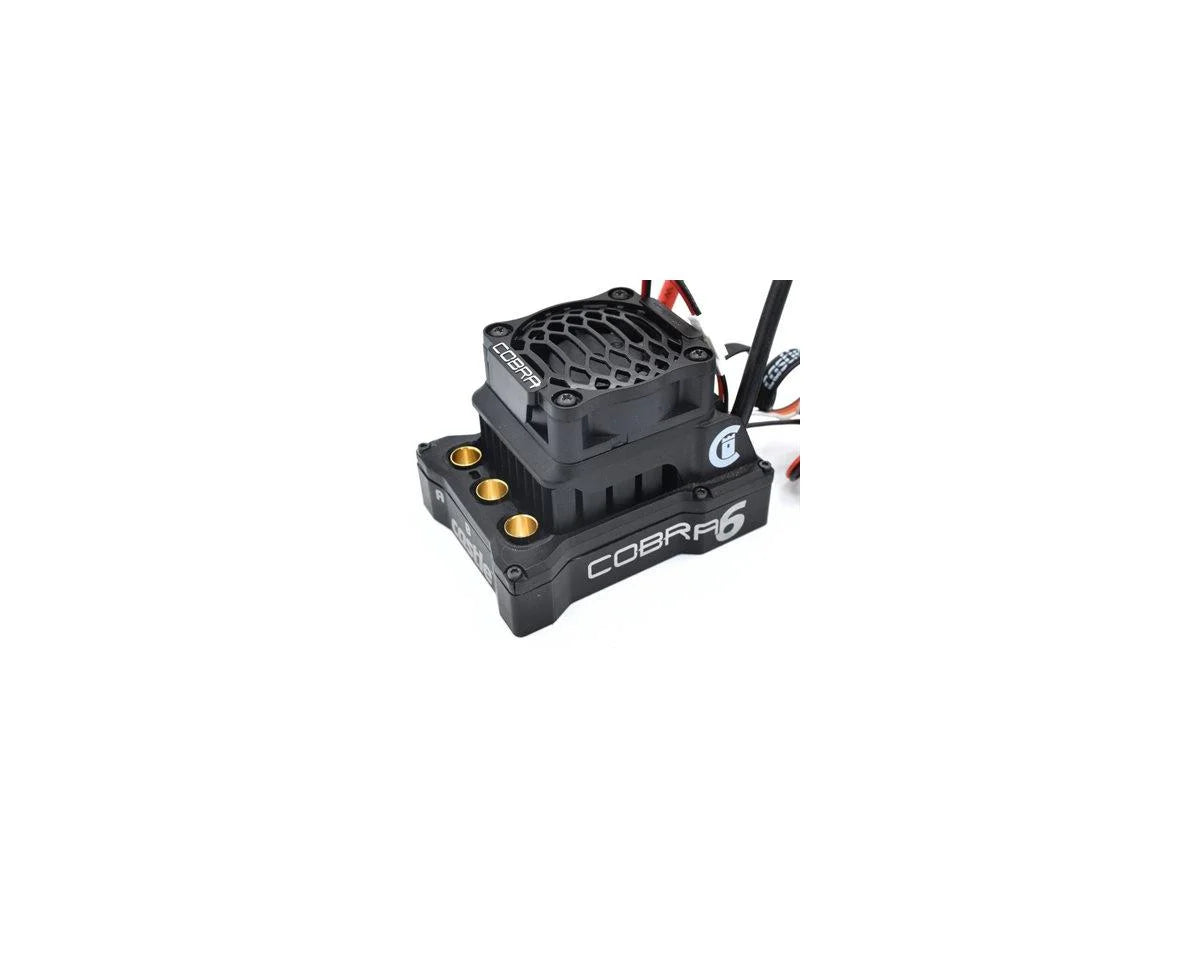

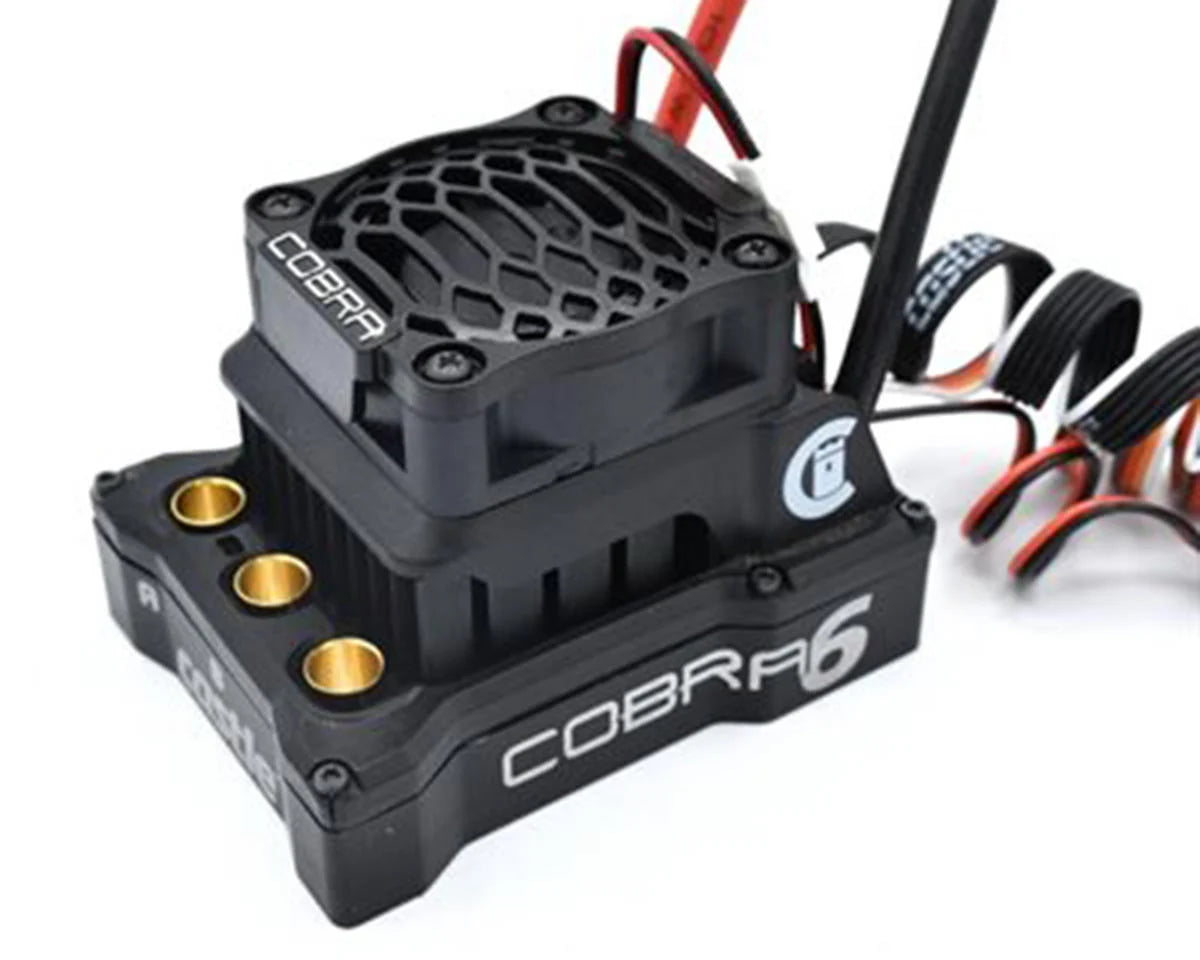

Large Scale Brushless Performance with Advanced Features
The Castle Creations Cobra 6 8S 1/6 Brushless ESC is engineered for high-performance large 1/6 scale RC applications, delivering smoother control and faster response through advanced 32-bit processing. Its expanded data logging system provides deeper insight into vehicle behavior with longer recording times, higher sampling rates, and additional data points. With a highly adjustable BEC, extensive tuning options, and multiple programming methods, the Cobra 6 gives drivers precise control over every aspect of performance.
About the Cobra 6 8S ESC
Advanced Processing Power
The Cobra 6 features a 32-bit dual-core processor that enhances throttle response, motor control, and overall drivability. This processing architecture allows the ESC to react quickly to changing load conditions, improving consistency during high-demand driving. Its refined control algorithms help deliver smoother acceleration and braking across a wide range of setups.
Expanded Tuning & Setup Options
The Cobra 6 offers improved braking adjustability, separate brake and reverse curves, and a highly adjustable internal BEC ranging from 5.5 to 8.0 volts in 0.1 volt increments. Users can access tuning features and firmware updates through the included Castle Link V4 USB programmer with USB-C connectivity. Optional Bluetooth programming via the Castle Creations B-Link Bluetooth Interface (CSE011-0181-00 - sold separately) and Castle Link 2 app provides additional convenience for field adjustments.
Enhanced Data Logging System
A significantly upgraded data logging suite provides double the sample frequency and eight times the recording duration of previous generations. Additional data points, including electrical motor timing and acceleration from the onboard accelerometer, give users a clearer picture of system performance. A looping function ensures uninterrupted logging, and individual sessions can be downloaded for detailed analysis.
Features:
- 32-bit dual-core processing
- Enhanced data logging system
- Double sample frequency capability
- Eight times extended logging duration
- Onboard accelerometer data point
- Adjustable internal BEC from 5.0V to 8.0V
- Improved braking adjustability
- Separate brake and reverse curves
- High-efficiency CRYO-DRIVE thermal management
- Audible alerts for system diagnostics
Includes:
- (1) Cobra 6 8S 1/6 Brushless ESC
- (1) Direct Connect Sensor Wire (300mm)
- (1) Castle Link V4 USB Adapter
- (1) Cobra Decal Sheet
- (1) Cobra 6 Quick Start Guide
Specifications:
| Suggested Application | 1/6 |
|---|---|
| Motor Type | Brushless |
| Input Voltage | 2-8S LiPo (7.4-33.6V) |
| Continuous Current | - |
| Burst Current | - |
| Dimensions (LxWxH) | 2.73x2.13x1.85in (69.34x54.1x46.99mm) |
| Weight | 5.75oz (163g) |
| Motor Limits | - |
| BEC Voltage | 5.5-8.0V (Adjustable) |
| BEC Continuous Current | - |
| BEC Peak Current | 8A |
| Motor Connector | 6.5mm Bullet |
| Battery Connector | Bare Wire |
| Motor Wire | - |
| Battery Wire | - |
| Programmable | Yes |
