Description
Description

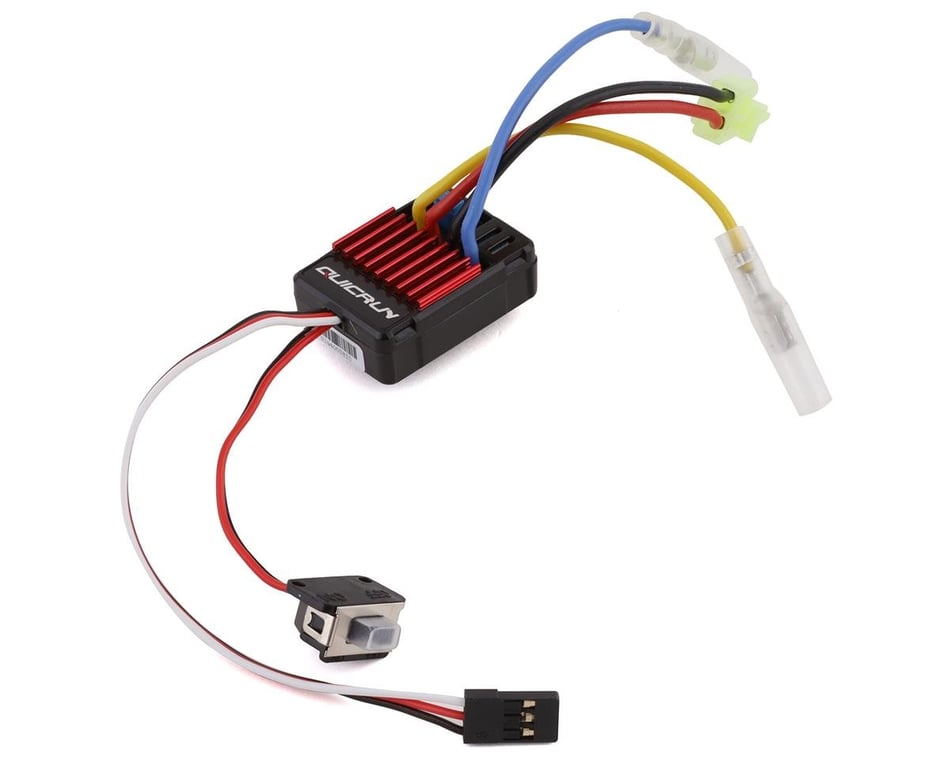

Hobbywing Quicrun 1625 1/18th Scale Brushed ESC.
Features:
Waterproof and dustproof, suitable for races in all weather conditions.
Small size with built-in capacitor module.
Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
Great current endurance capability.
Great built-in BEC output capacity.
Automatic throttle range calibration, easy to use.
ESC parameters are easy to set withwith jumpers.
Multiple protections:
Over Voltage Protection
Low voltage cut-off protection for battery
Over-heating protection
Throttle signal loss protection.
Risk Free Manufacturers limited warranty.
Specifications:
Cont. Current /Peak Current/ Resistance: 25A/100A/0.003?
Motor Type Supported: Brushed Motor
Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
Brushed Motor Limit:
2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
BEC Output: 1A/5V (Linear Mode)
PWM Frequency: 1KHz
Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
Running Modes: Forward/Reverse/Brake
