Hobbywing XR14 Combo ESC + XERUN 2848SD (4000KV) Motor
Regular price
$179.99
Unit price
Hobbywing XR14 Combo ESC + XERUN 2848SD (4000KV) Motor is backordered and will ship as soon as it is back in stock.
Pickup available at ICRC Complex
Usually ready in 24 hours
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Hobbywing XR14 Combo ESC + XERUN 2848SD (4000KV) Motor
Regular price
$179.99
Unit price
Hobbywing XR14 Combo ESC + XERUN 2848SD (4000KV) Motor is backordered and will ship as soon as it is back in stock.
Description
Description
Product Description

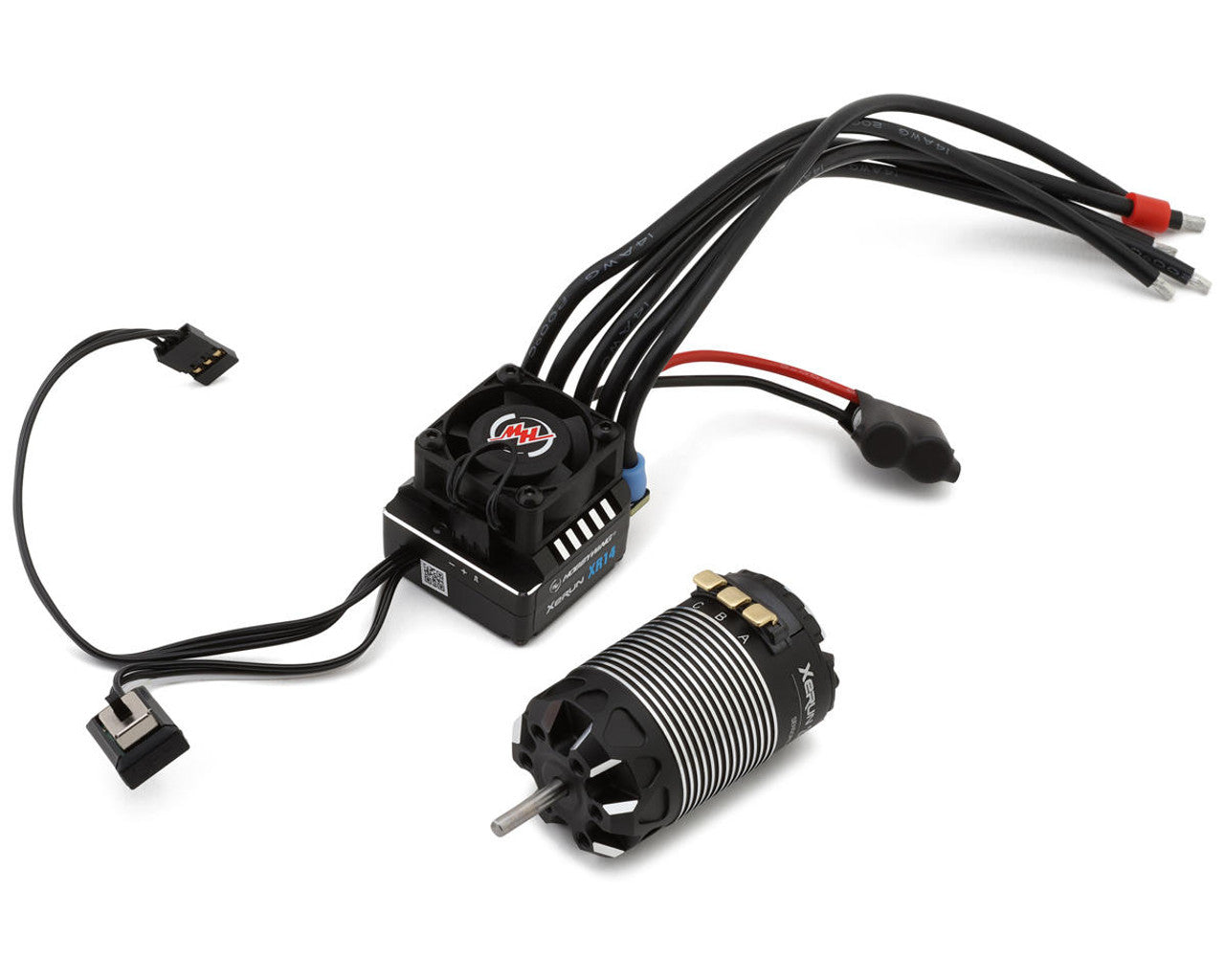

Hobbywing XR14 Combo ESC + XERUN 2848SD (4000KV) Motor (HWI38010609)
The Xerun XR14 Sensored Brushless Electronic Speed Controller (ESC) and 2848SD Motor Combo by Hobbywing delivers an unparalleled RC racing experience by combining a competition-grade ESC with a high-performance brushless motor. Designed for 1/14 scale on-road and off-road vehicles, this combo offers exceptional power, precision, and durability. Whether competing in Blinky or Boost formats, this integrated system provides everything racers need to excel on any track.
Exceptional Power & Cooling
The Xerun XR14 ESC boasts a maximum continuous output current of seventy amps, ensuring consistent power delivery even under intense racing conditions. Its full-metal heat sink top is designed for optimal heat dissipation, maintaining safe operating temperatures during prolonged use. This robust cooling system provides reliability, allowing you to push your RC vehicle to its limits without the worry of overheating.
Customization Options & Reliable Protection
With twenty-six adjustable parameters, the XR14 ESC offers unparalleled control over your RC car's performance. Key adjustments include PWM frequency, initial throttle response, softening, and boost or turbo timing. These customizable settings empower racers to fine-tune their power delivery and braking dynamics, ensuring a tailored driving experience for any racing scenario. Additionally, it features built-in reverse polarity protection to prevent damage from incorrect battery connections. Comprehensive protections such as low-voltage cutoff, thermal safeguards, and fail-safe functions ensure durability during operation. The integrated data recording function, accessible through the Hobbywing Link App, provides valuable performance insights and makes easier to analyze and improve your setup.
High-Efficiency Brushless Motor
The included Hobbywing Xerun 2848SD Four-Pole Brushless Motor combines efficiency and durability to deliver exceptional performance. Its low-temperature rise design ensures safe and reliable operation, while adjustable mechanical timing (20-40°) enables precise calibration for diverse applications. With an IP5X dustproof rating, the motor excels in challenging track environments. Smooth low-speed performance and minimal cogging effect enhance handling, making it a perfect match for the XR14 ESC.
Features:
- Seventy-amp continuous output current
- Full-metal heat sink for efficient cooling
- Twenty-six adjustable parameters
- Dual application modes for on-road and off-road
- Reverse polarity protection
- Low-voltage cutoff and thermal protection
- Innovative softening function for power tuning
- Adjustable PWM and brake frequencies
- Four-pole motor design for smoother performance
- 2848SD Motor equipped with IP5X dustproof motor protection
Specifications:
ESC
- Suggested Application: 1/14 On-Road & Off-Road Racing, 1/12 & 1/10 Light Load Vehicles
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2S LiPo (7.4V)
- Continuous Current: 70A
- Peak Current: 300A
- Dimensions (LxWxH): 1.39x1.23x1.12in (35.2x31.3x28.5mm)
- Weight: 2.33oz (66g)
- Motor Limits: 540-Size (>6000kV or 8.5T)
- BEC Voltage: 6V/7.4V at 4A
- BEC Peak Current: -
- Motor Connector: Solder
- Battery Connector: Solder
- Motor Wire: 14AWG
- Battery Wire: 14AWG
- Programmable: Yes, with OTA or LCD Program Box Pro*
Motor
- Motor Type: Sensored - Brushless
- kV Rating: 4000kV
- Input Voltage: 2S-3S LiPo (7.4V-11.1V)
- No-Load Current: 2.1A
- Diameter: 1.12in (28.5mm)
- Length: 1.89in (48mm)
- Shaft Diameter: 0.13in (3.175mm)
- Weight: 3.52oz (100g)
- Poles: 4
- Application: 1/14 or 1/12 On-Road & Off-Road
Includes:
- (1) Hobbywing Xerun XR14 Sensored Brushless ESC
- (1) Hobbywing Xerun 2848SD 4-Pole 1/14 Brushless Motor (4000kV)
- (1) Cooling Fan
- Factory Decals & Accessories
- Product Manual
