Mofo RC | NanoBAM XL 1900Kv Brushless Motor
Mofo RC | NanoBAM XL 1900Kv Brushless Motor is backordered and will ship as soon as it is back in stock.
Description
Description

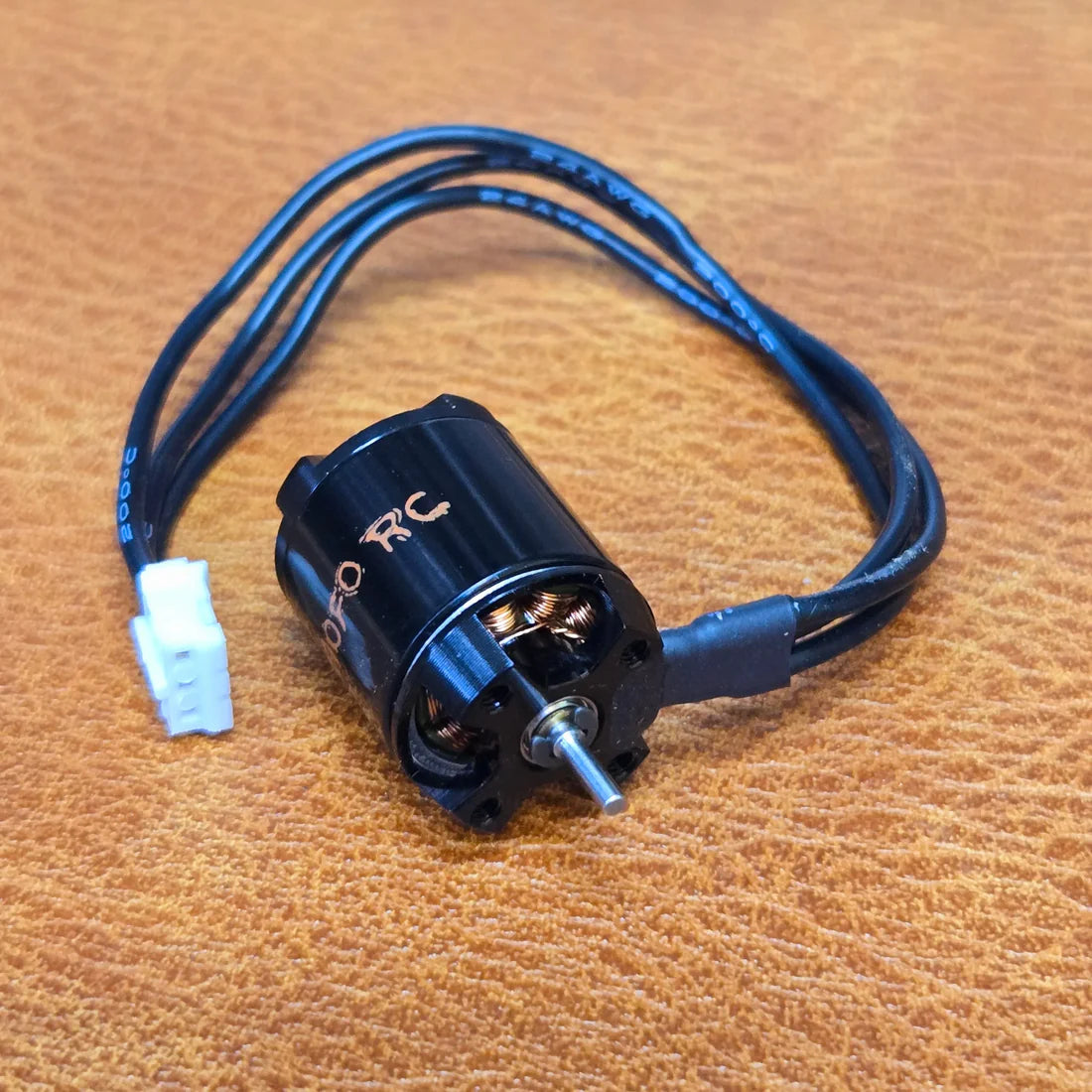

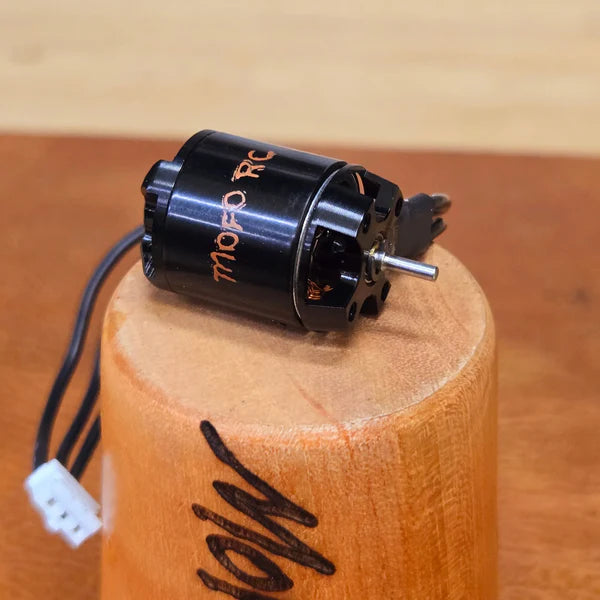

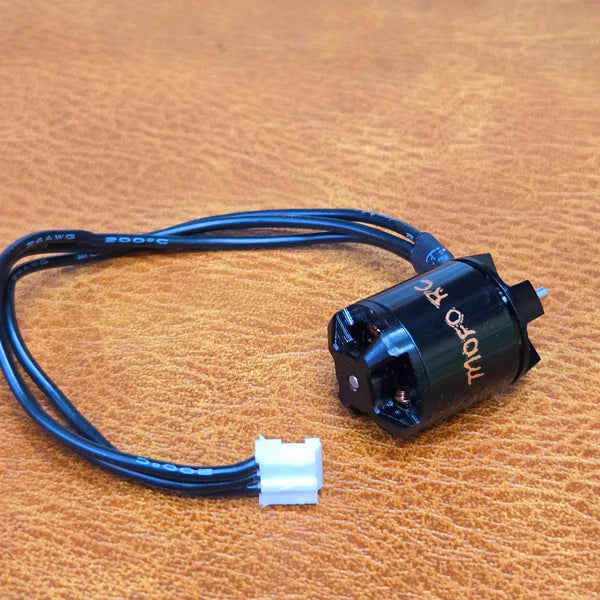

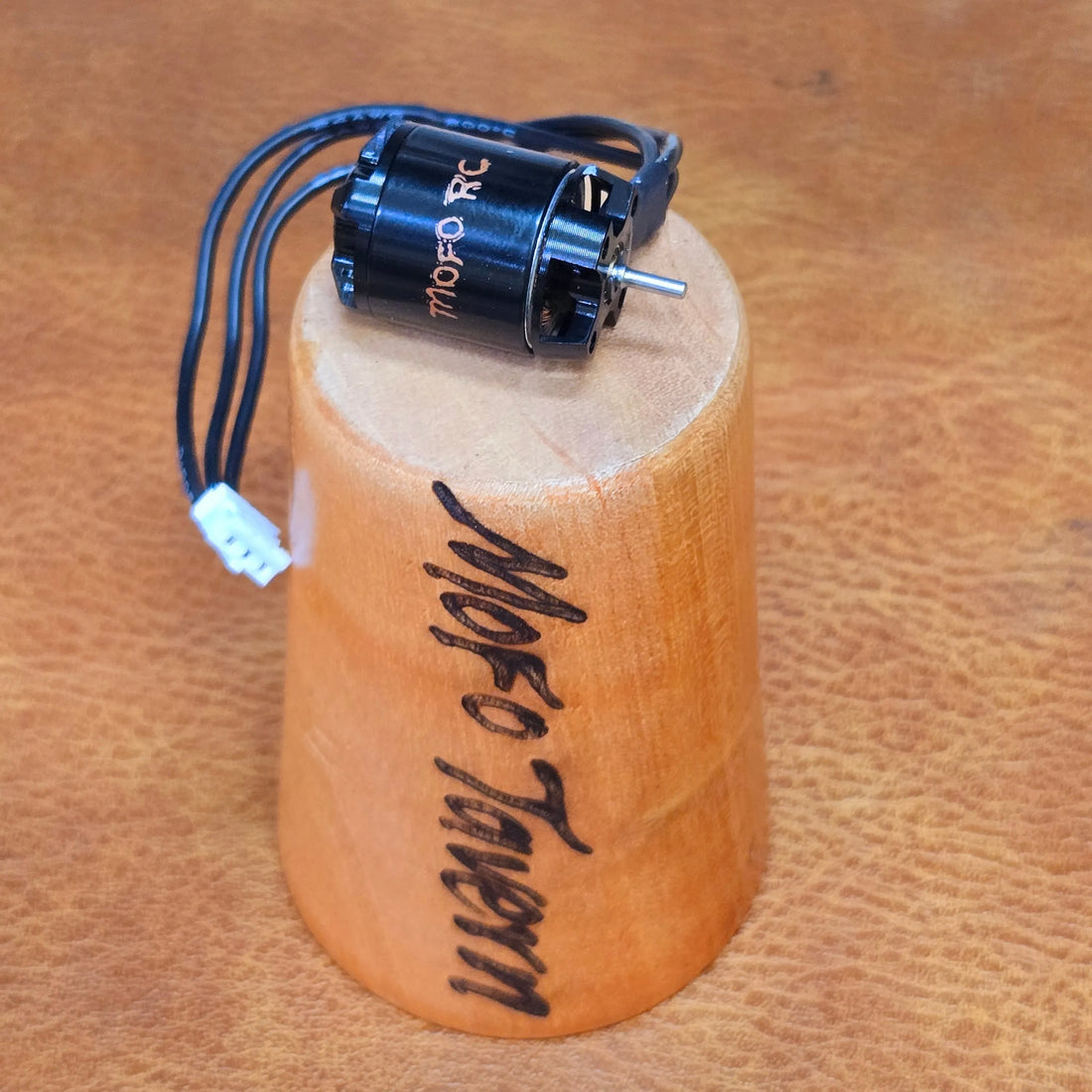

The NanoBam XL is a slightly longer motor with a larger 12mm bolt pattern motor compared to our standard NanoBam line. It is intended for heavier vehicles such as the Redcat Ascent-18, Traxxas® TRX-4M™, or FMS series as a replacement for the 130 or 180 sized brushed motors.
The 1900kv motor has a extra torque and but slower speeds compared to our standard NanoBam 3500 KV. Also available is a 3200 KV. For an SCX24 is typically mounted forward facing and does not have as low of a CG as the standard NanoBam.
Check out the separate listings for the motor with a the appropriate pinion already installed for the various vehicles mentioned above. Need a specific pinion installed? Select a pinion with a 1.5mm shaft and the optional labor to install it for you.
Specs and Dimensions
| KV | 1900 |
| Voltage | 2-4s Lipo |
| Bolt Pattern | 12mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 23mm |
| Weight | 16.8 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
