PRODUCT DESCRIPTION

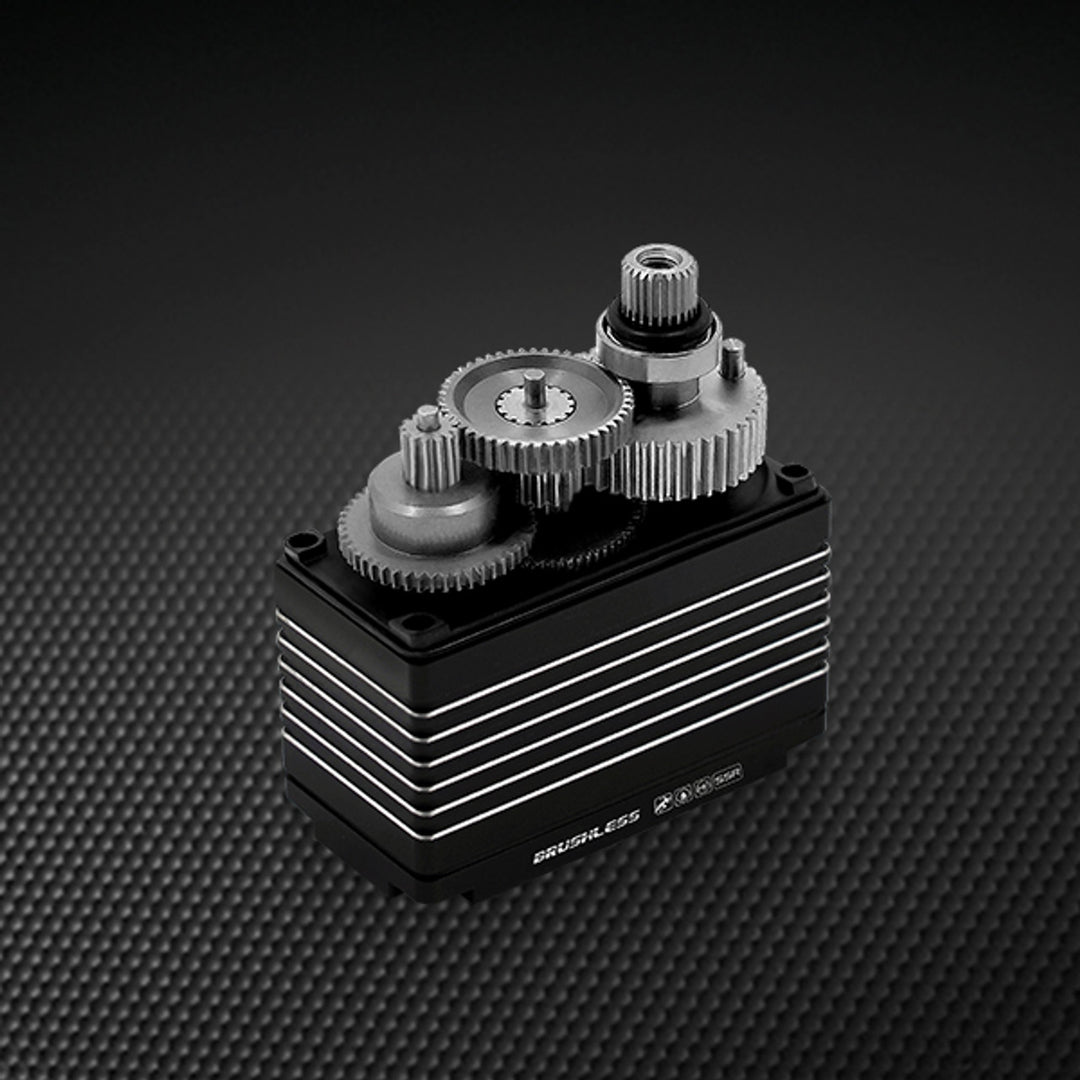

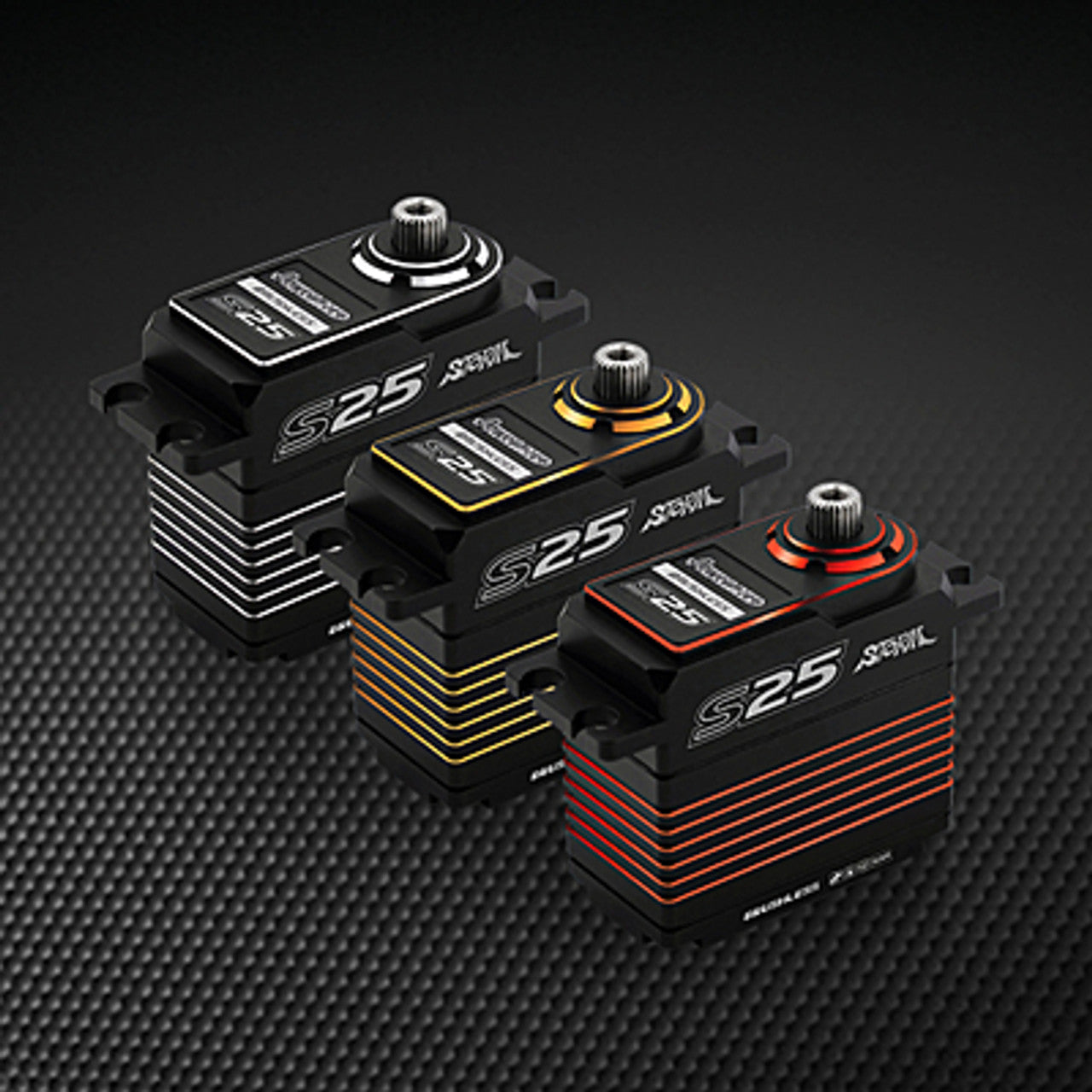

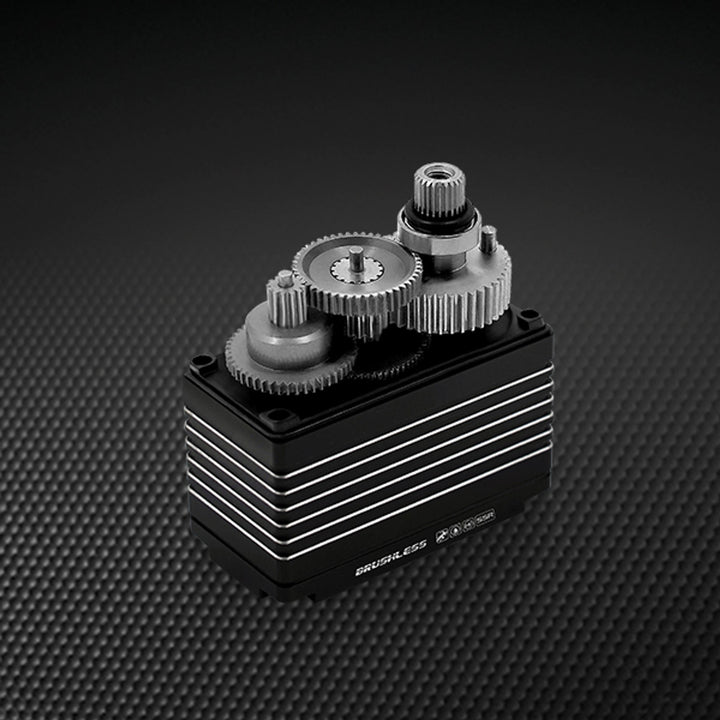

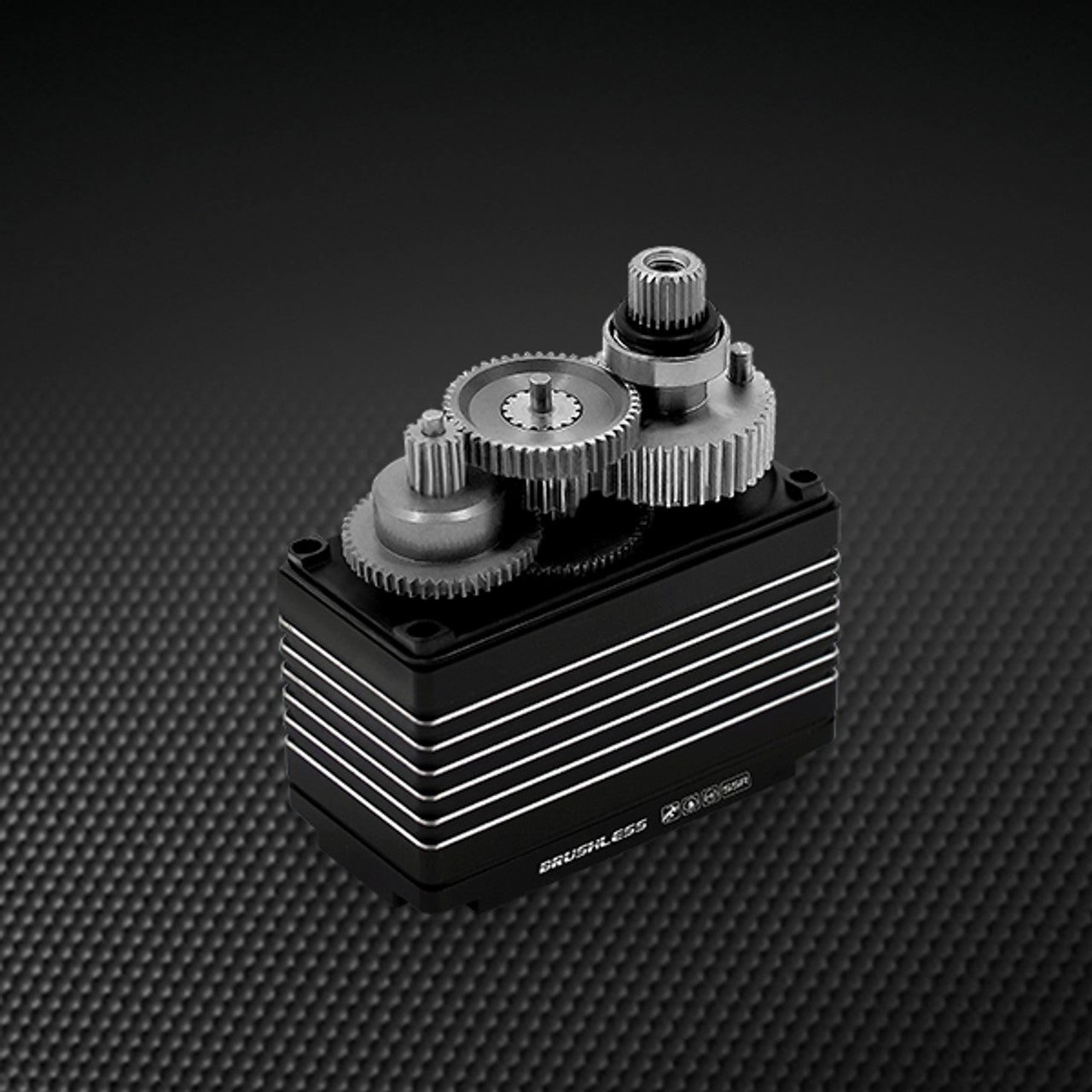

Servos feature all-aluminum housings in a 2-tone anodizing that is available with silver, red or gold-color details while the geartrains are made up using high-quality aluminum and steel gears. Japanese Noble potentiometers ensure highest possible precision and an updated PCB supports SSR and SUR modes. The line includes the S15 low-profile and S25 and S35 standard size servos all of which are usable with 6V to 8.4V input.
SPECIFICATIONS:
| Torque(6.0V) | 21.5 kg-cm (298.6 oz/in) |
| Torque(7.4V) | 25.0 kg-cm (347.2 oz/in) |
| Torque(8.4V) | 30.0 kg-cm (416.6 oz/in) |
| Speed | 0.075 sec (6.0V) │ 0.060 sec (7.4V) │ 0.055 sec (8.4V) |
| Operating Voltage | 6.0 ~ 8.4 DC Volts |
| Weight | 75.0 g (2.65 oz) |
| Bearing Type | Ball Bearing x 2 |
| Motor Type | Brushless Motor |
| Gear Type | Titanium & Steel |
| Operating Temperature | -20℃~60℃ |
| Working frequence | 1520μs / 333hz |
| Size | 40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in) |
