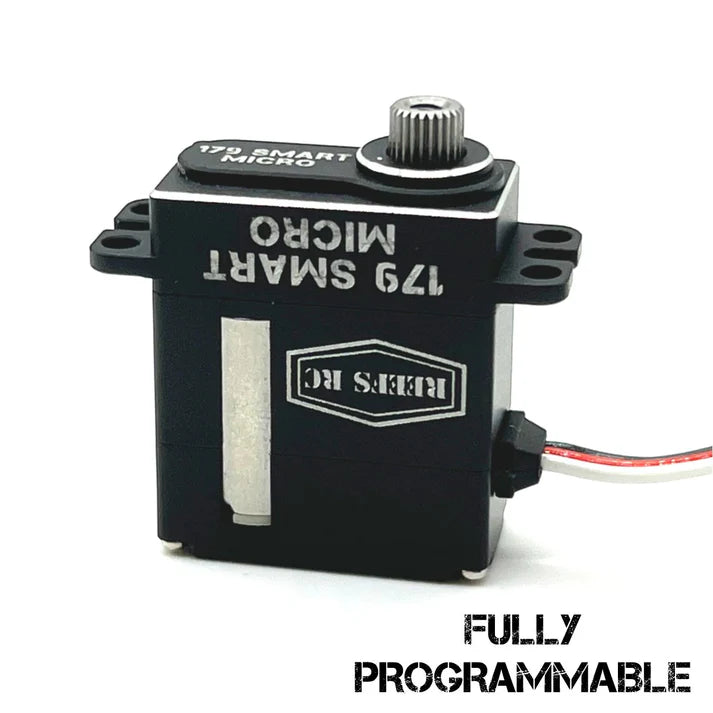

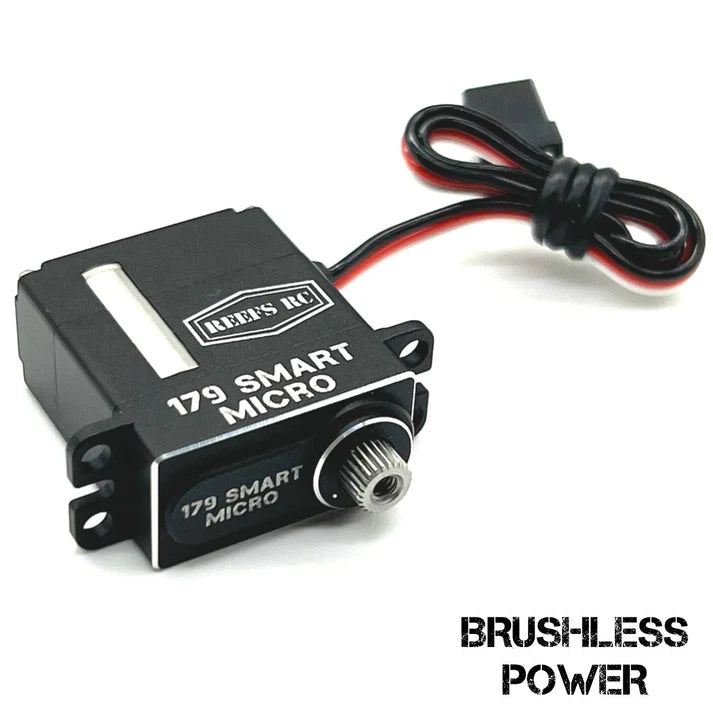

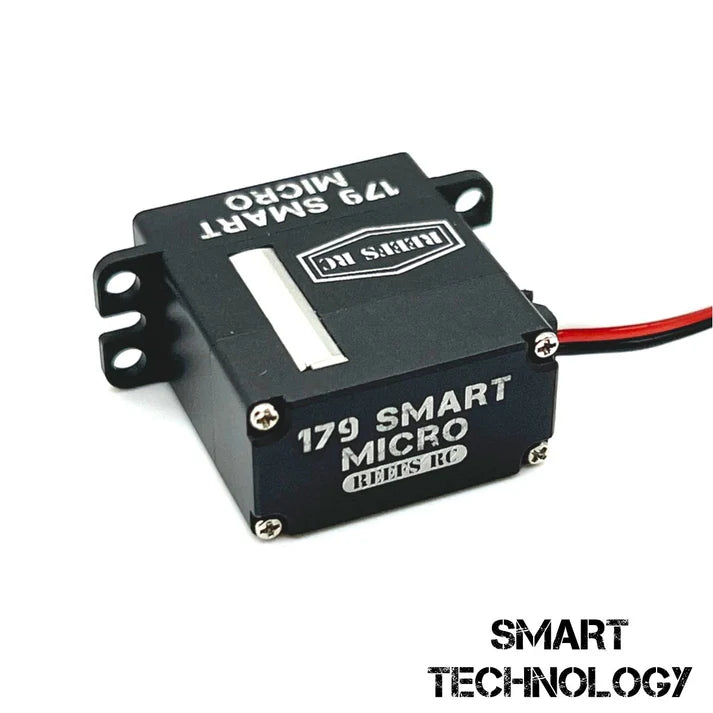

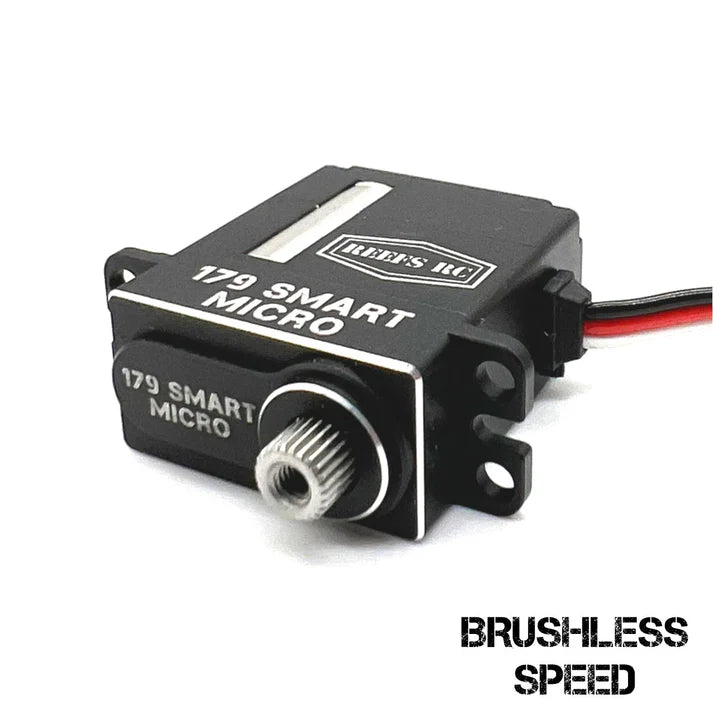

Reefs 179 Smart Brushless Micro Servo
Reefs 179 Smart Brushless Micro Servo is backordered and will ship as soon as it is back in stock.
Description
Description
With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.
SPECIFICATIONS:
- High Torque High Speed
- BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
- (Optional) Comes as Servo
- Voltage 6-8.4 / Internal: Metal & Steel Gears
- CNC Aluminum Casing / Bearing Type: 2BB
- Temp Rate: -15C°~ +70C
- Weight: .74oz / 21g

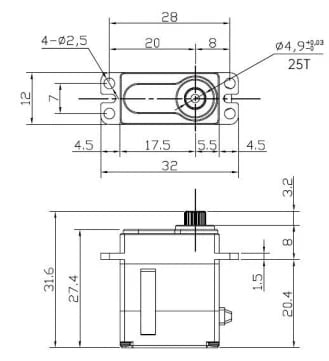

Dimension: (LWH)
- .90 x .47 x 1.08 in
- 23 x 12 x 27.5 mm
Torque:
- 135 oz (9.7kg)@ 6.0v
- 159 oz (11.4kg)@ 7.4v
- 179 oz (12.9kg)@ 8.4v
Speed:
- .09 sec @ 6.0v
- .07 sec @ 7.4v
- .06 sec @ 8.4v
Spline: 25T Micro
Dead Band Width: 2μs
Unload Current:
- 150mA @ 4.8V
- 180mA @ 6.0V
- 240mA @ 7.4V
- 300mA @ 8.4V
Load Current:
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
