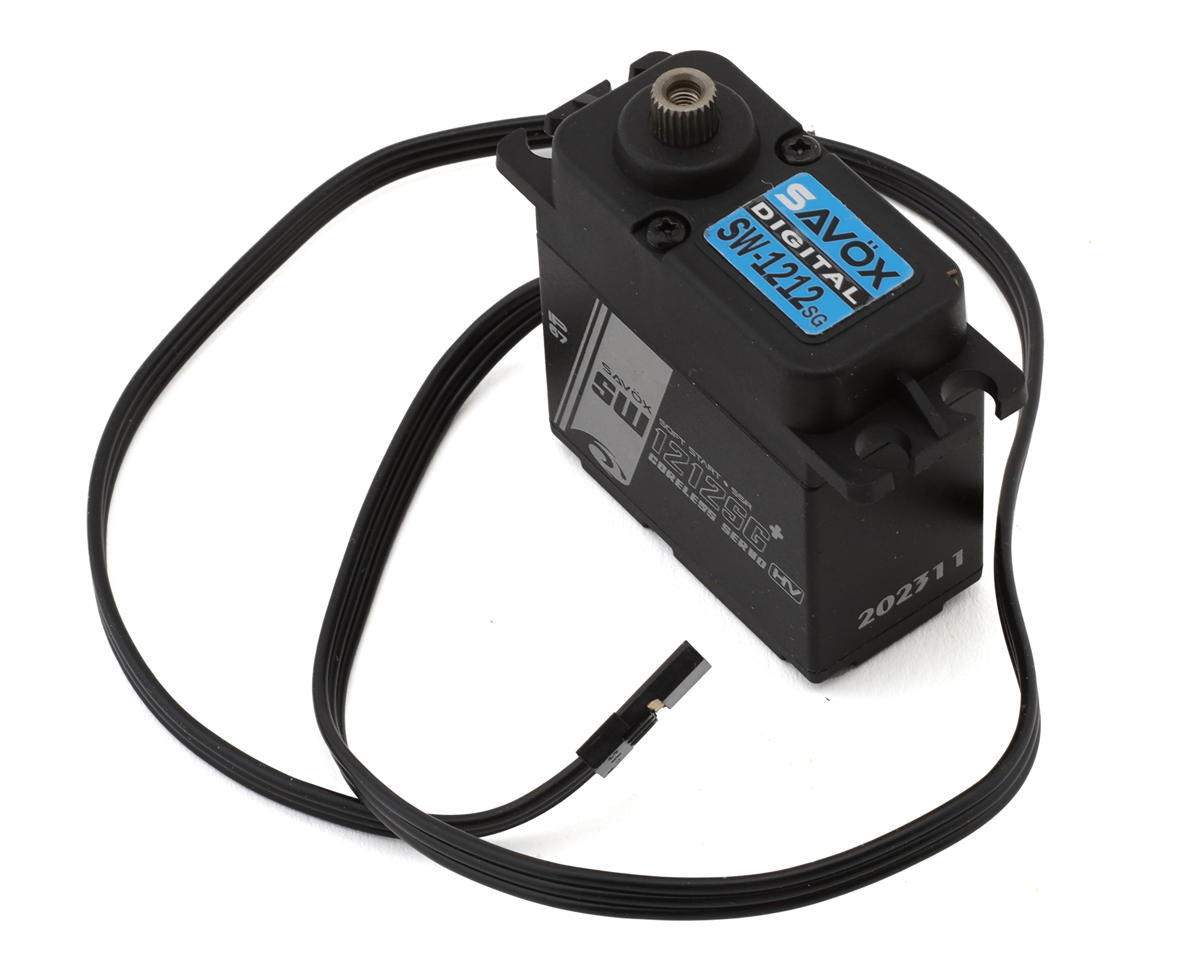

Savox SW-1212SGP Black Edition Waterproof Steel Gear Digital Servo (High Voltage) (Tall)

Servo Overview:

Savox SW-1212SGP Black Edition Waterproof Steel Gear Digital Servo. This is an optional steel-geared servo designed for monster trucks and crawler applications where a slightly taller servo can be installed. Offering stump-pulling torque and IP67 waterproof protection, this servo is designed for rugged and wet conditions. As part of the "Plus" series, it includes Soft Start and Sanwa SSR compatibility, ensuring smooth and precise performance. With a center aluminum case and nylon composite top and bottom, it operates directly on 7.4V without the need for an external BEC and features precision ball bearings for enhanced reliability.

Note: This servo is taller than standard size servos. Please verify that the dimensions of this servo will suit your application prior to purchase.

Features:

• Waterproof to IP67 standards, ideal for Monster Trucks and crawlers
• Steel gears for extreme durability and high torque output
• Center aluminum with nylon composite top and bottom case for durability
• Operates directly on 7.4V without requiring an external BEC
• Precision ball bearings for smoother operation
• Part of the "Plus" series with Soft Start and Sanwa SSR compatibility
• Designed for extreme off-road use and wet conditions
• Reliable performance for demanding applications

Specifications:

• Input Voltage: 7.4-8.4V
• Speed:
  • @7.4V: 0.14sec/60°
  • @8.4V: 0.13sec/60°
• Torque:
  • @7.4V: 638.8oz-in
  • @8.4V: 722.1oz-in
• Pulse/Frequency: -
• Motor Type: Coreless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.6x0.81x1.82in (40.6x20.7x46.15mm)
• Servo Lead Length: -
• Weight: 2.93oz (83g)

Includes:

• (1) SW-1212SGP Black Edition Waterproof Steel Gear Digital Servo

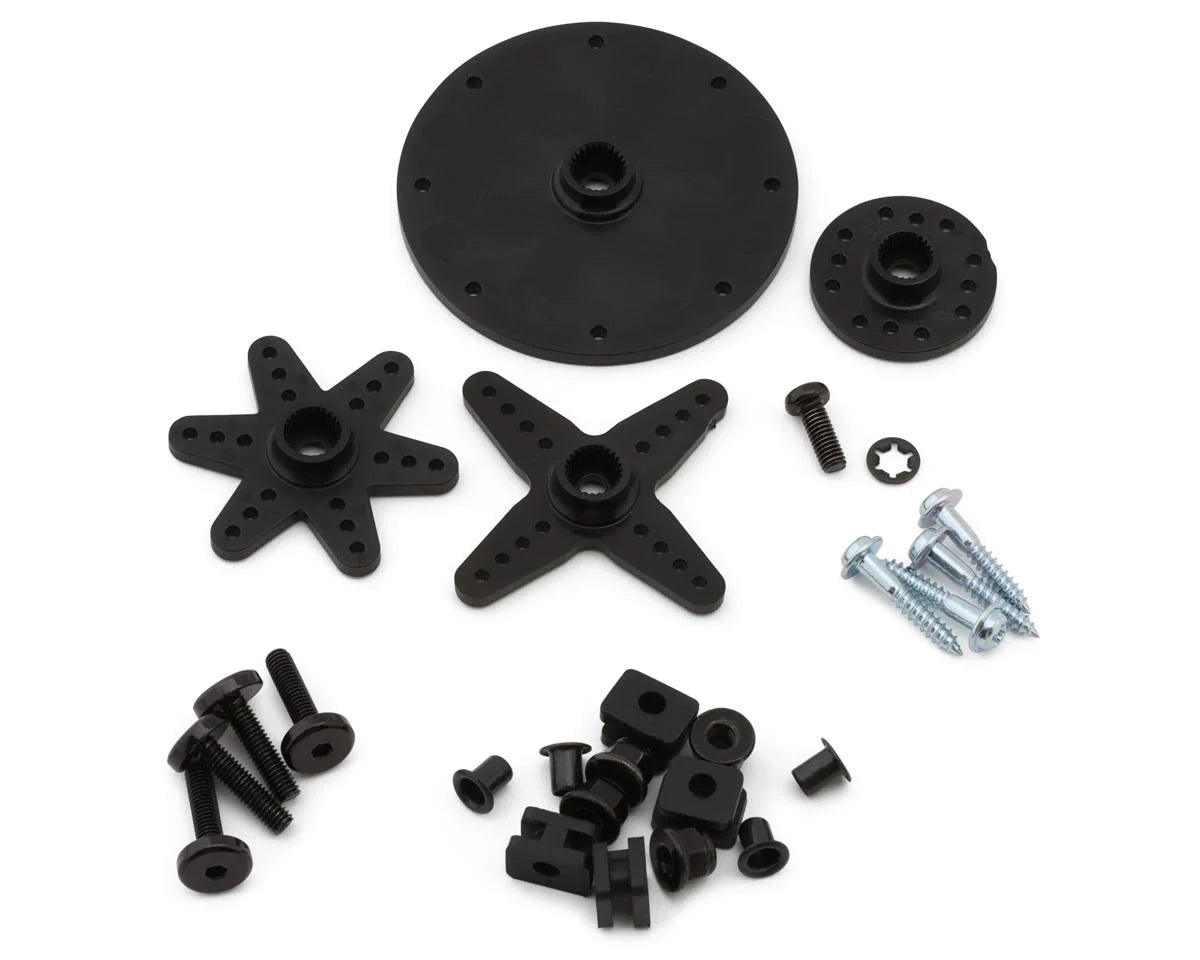

• (4) Composite Servo Horns
• Mounting Hardware
