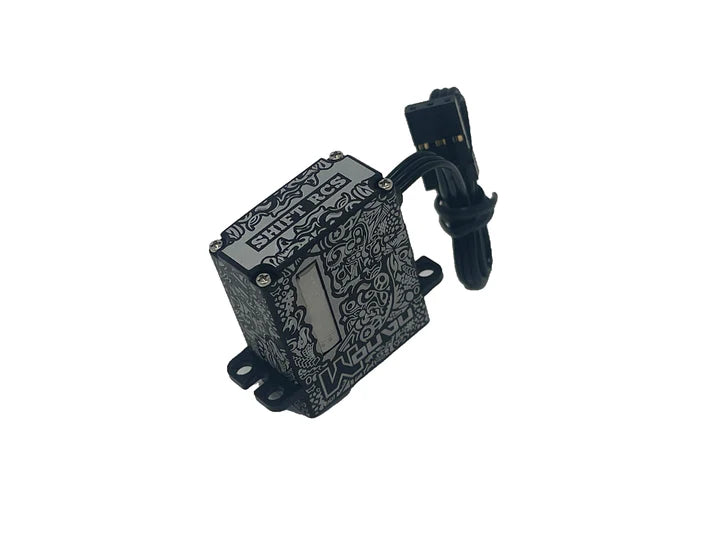

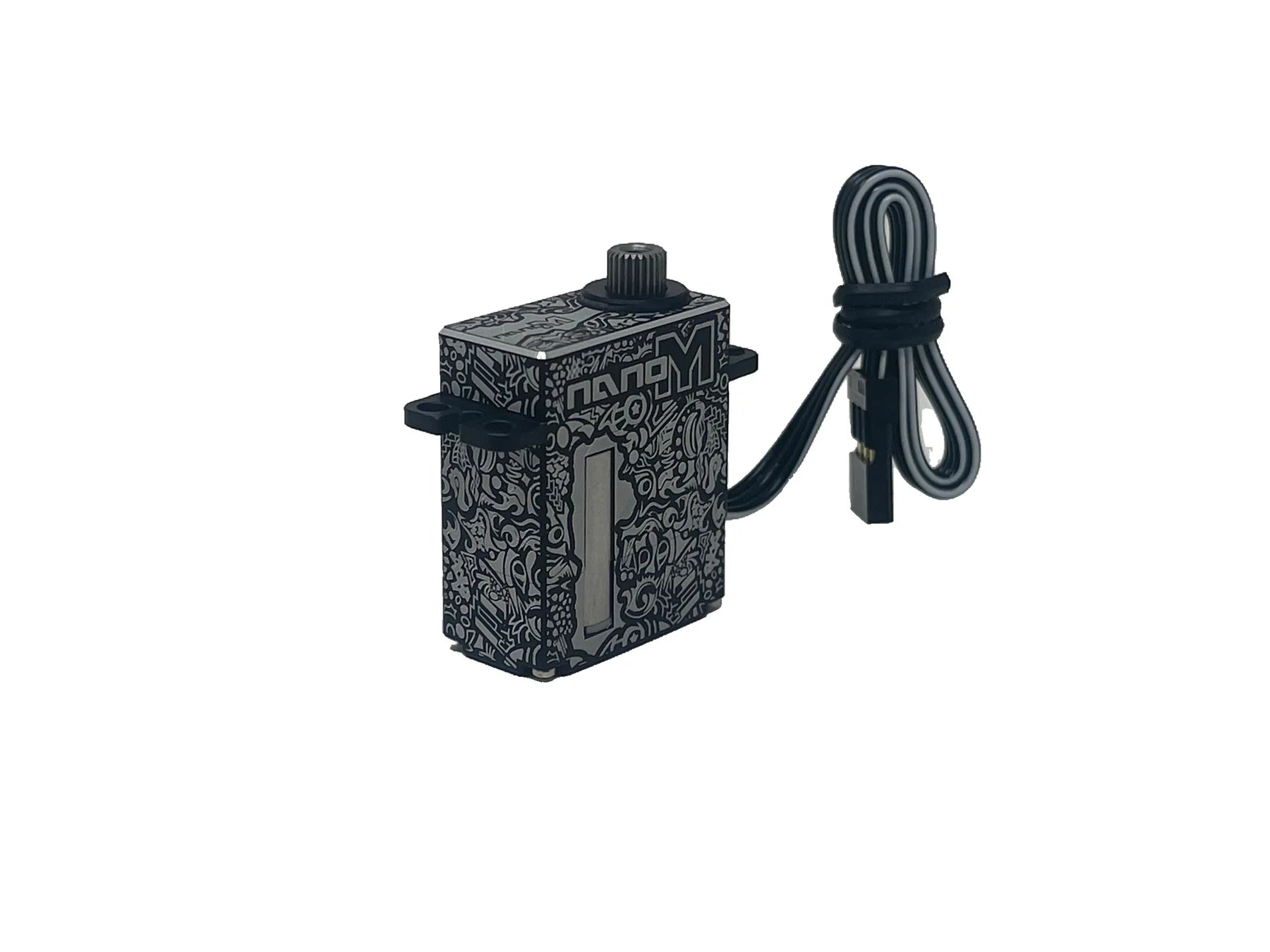

Shift RC Nano M Micro Servo

Nano M Micro Servo
Tiny form factor. High‑voltage power. Built rugged.

Overview:
Designed for ultra-compact applications—Mini‑B platforms, dig unit steering, shifting mechanisms, or 1/24 scale crawlers. The Nano M manages surprising torque and speed in a micro form factor, backed by the Shift RCS QA standards.

Why It Shifts Ahead:

• 💥 Micro Torque – 115 oz‑in @ 6V, 134 oz‑in @ 7.4V, 151 oz‑in @ 8.4V

• ⚡ Lightning-Fast Speed – 0.075 s @ 6V, 0.062 s @ 7.4V, 0.055 s @ 8.4V

• 🧰 Brushless Motor with Steel Gears – high efficiency in compact design

• ✅ Ideal for compact spaces with real performance needs

• 🔁 Lifetime Gear Warranty (electronics covered 1 year)

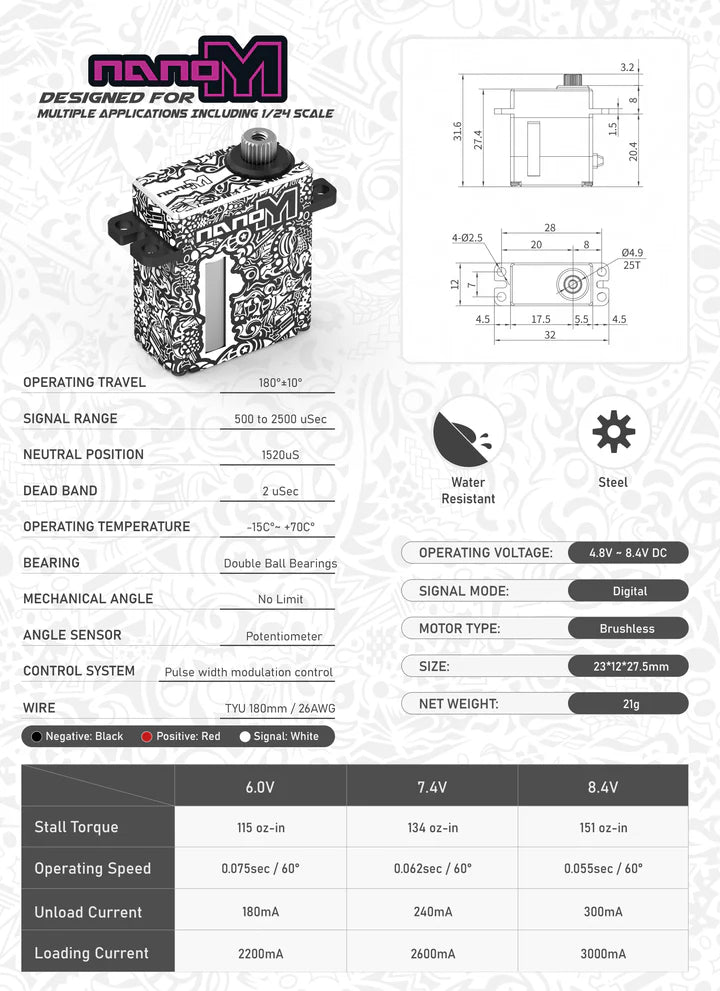

Tech Specs:

• Dimensions: 23 × 12 × 27.5 mm

• Weight: 21 g

• Requires precise endpoint setup to avoid damage

• Rated 2.3 A; 3 A BEC recommended

What’s Included:

• Nano M Servo

• M2.5 spline screw horn

• Quick‑setup guide

Ideal For: Small-scale rigs, shifting tech, or any compact steering application where space is tight but performance matters.
