Dlux DX8-S Servo
Dlux DX8-S Servo is backordered and will ship as soon as it is back in stock.
Description
Description

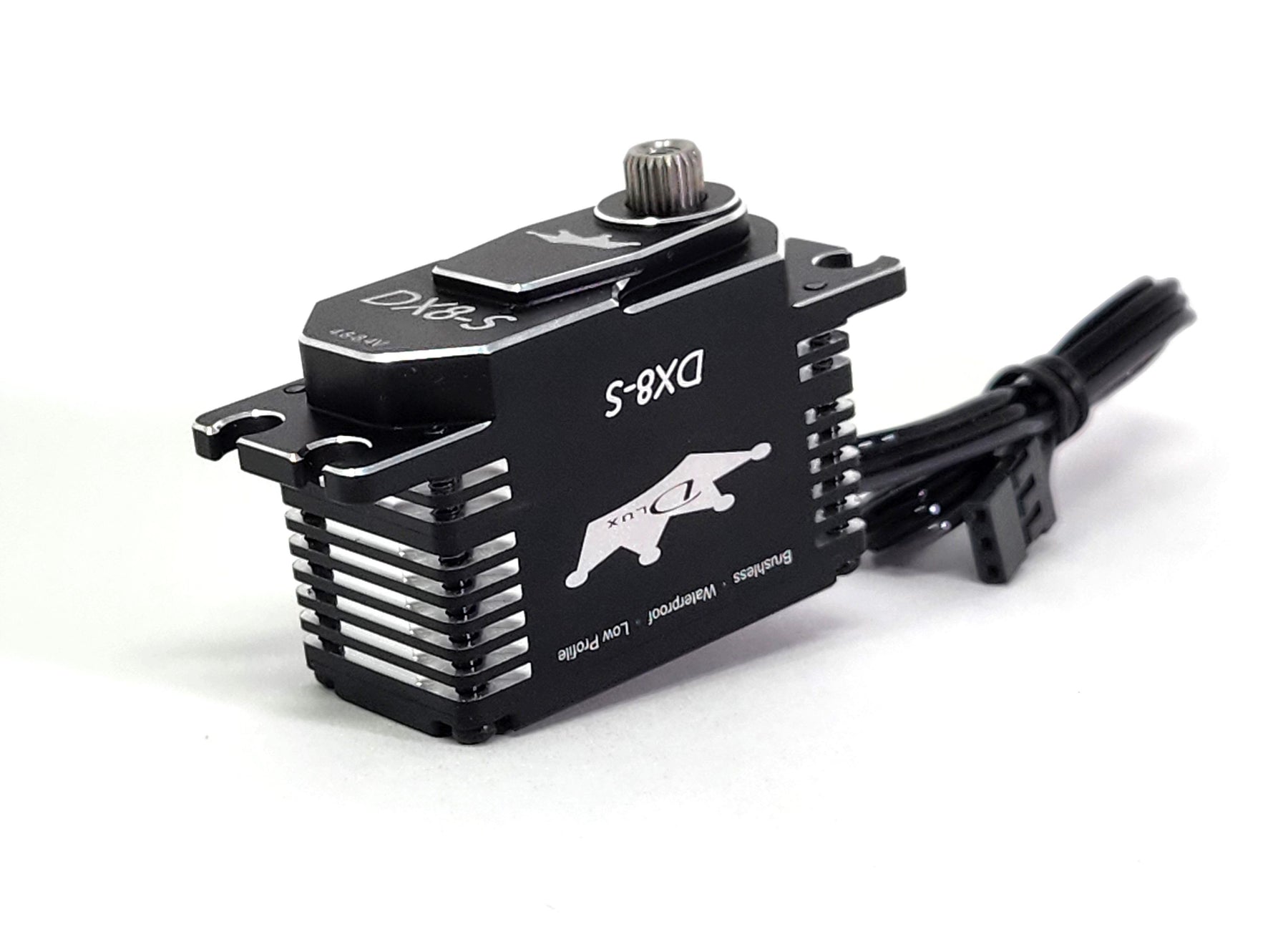

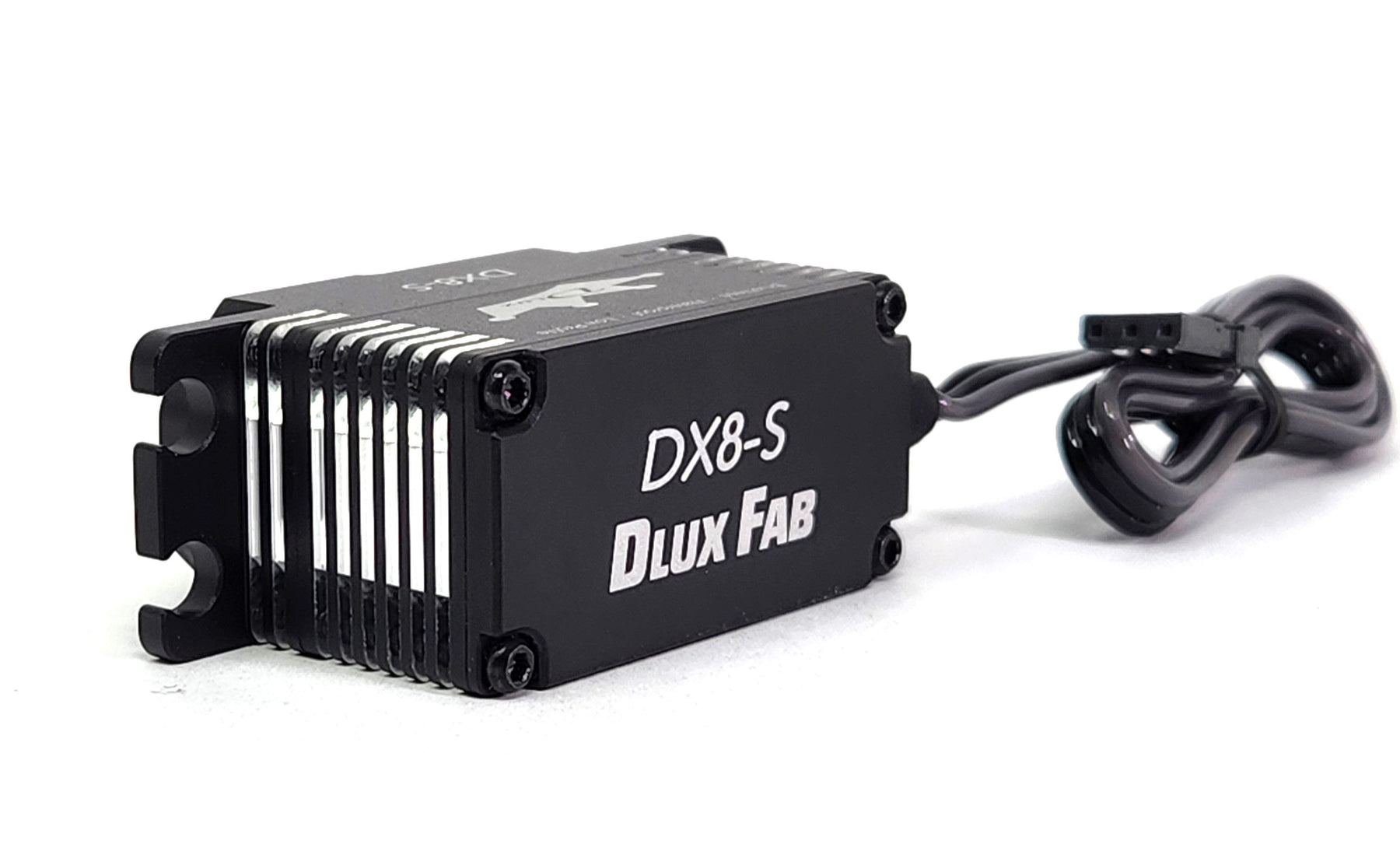

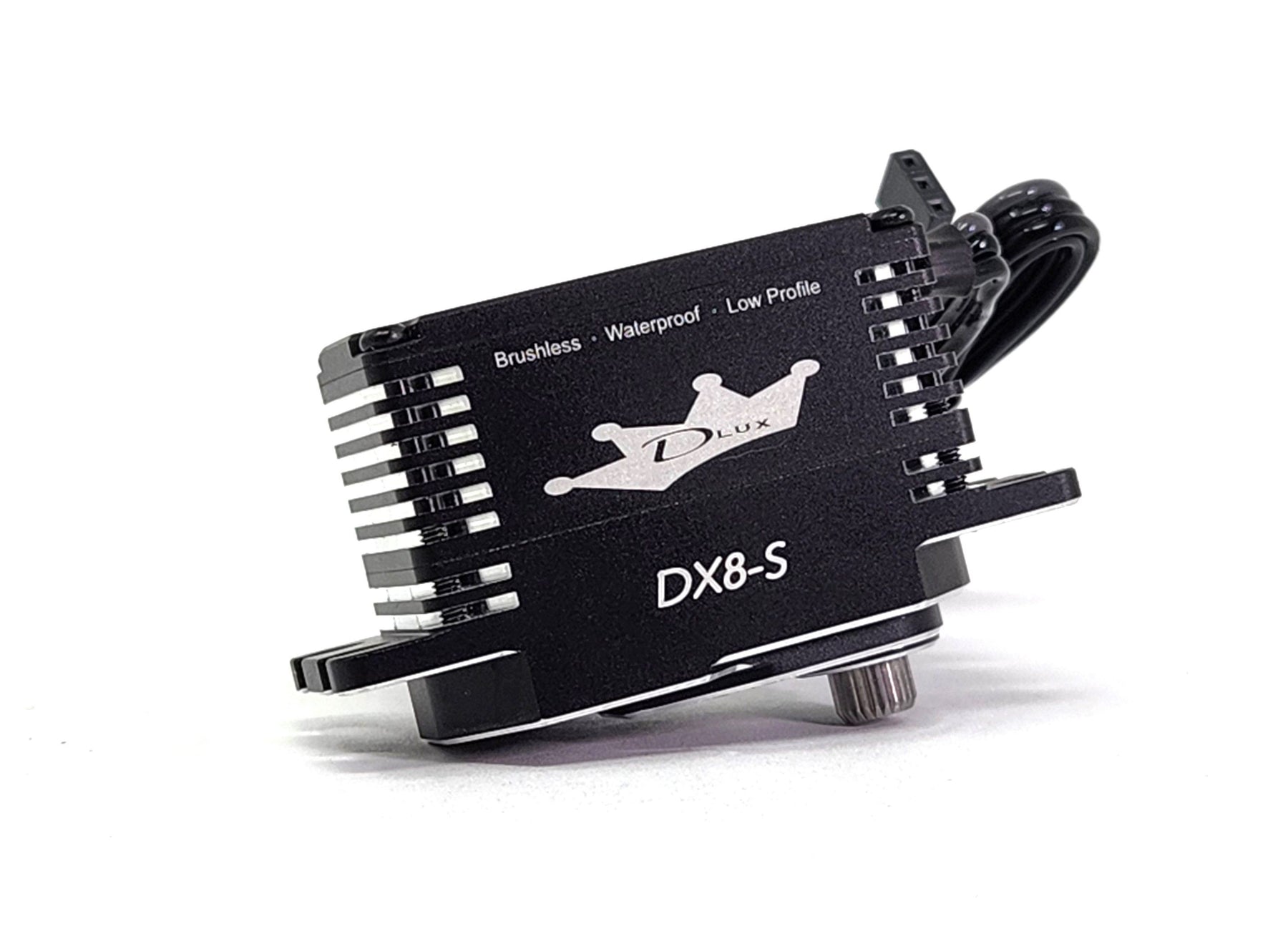

All new Dlux DX8-S low profile servo
Specs;
Waterproof (IP67 rated)
Voltage 4.8V - 8.4V
Steel Gears
Magnetic angle sensor
4 Pole brushless motor
CNC aluminum case
Spline: 25T
Weight: 73g, 2.5oz

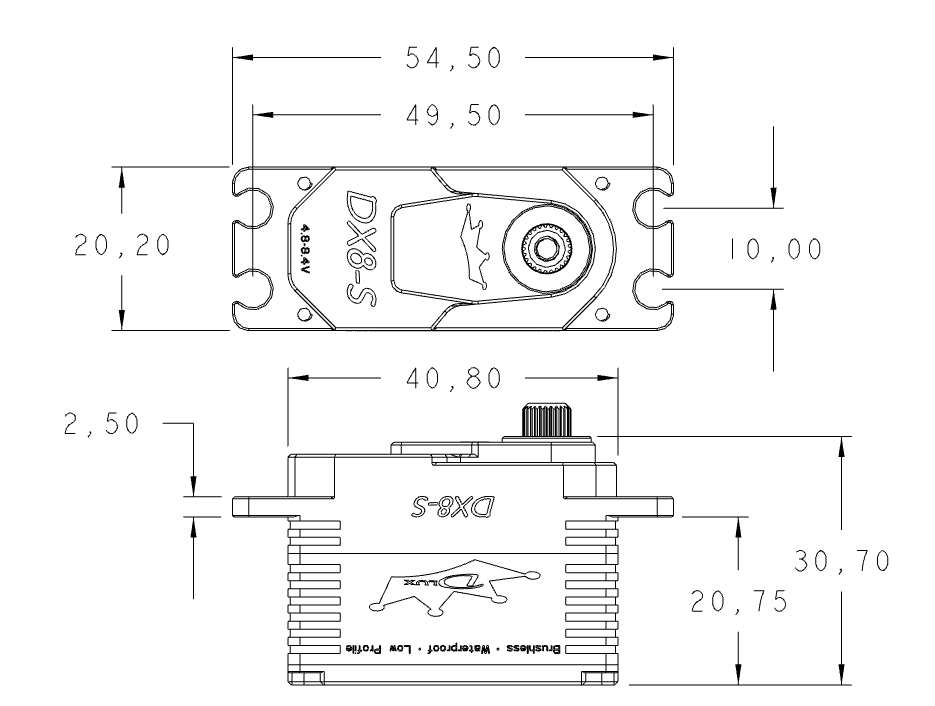

Dimension L W H: 40.8 x 20.2 x 30.7mm (1.6" x .79" x 1.2")
Torque:
800oz (57.6kg), 8.4V
715oz (51.5kg), 7.4v
635oz (45.7kg), 6V
Speed:
.09sec, 8.4V
.10sec, 7.4V
.12sec, 6V
No load Current:Â 580mA, 8.4V - 540mA, 7.4V - 500mA, 6.0V
Full Load Current:Â 7500mA, 8.4V - 6800mA, 7.4V - 6000mA, 6.0V
