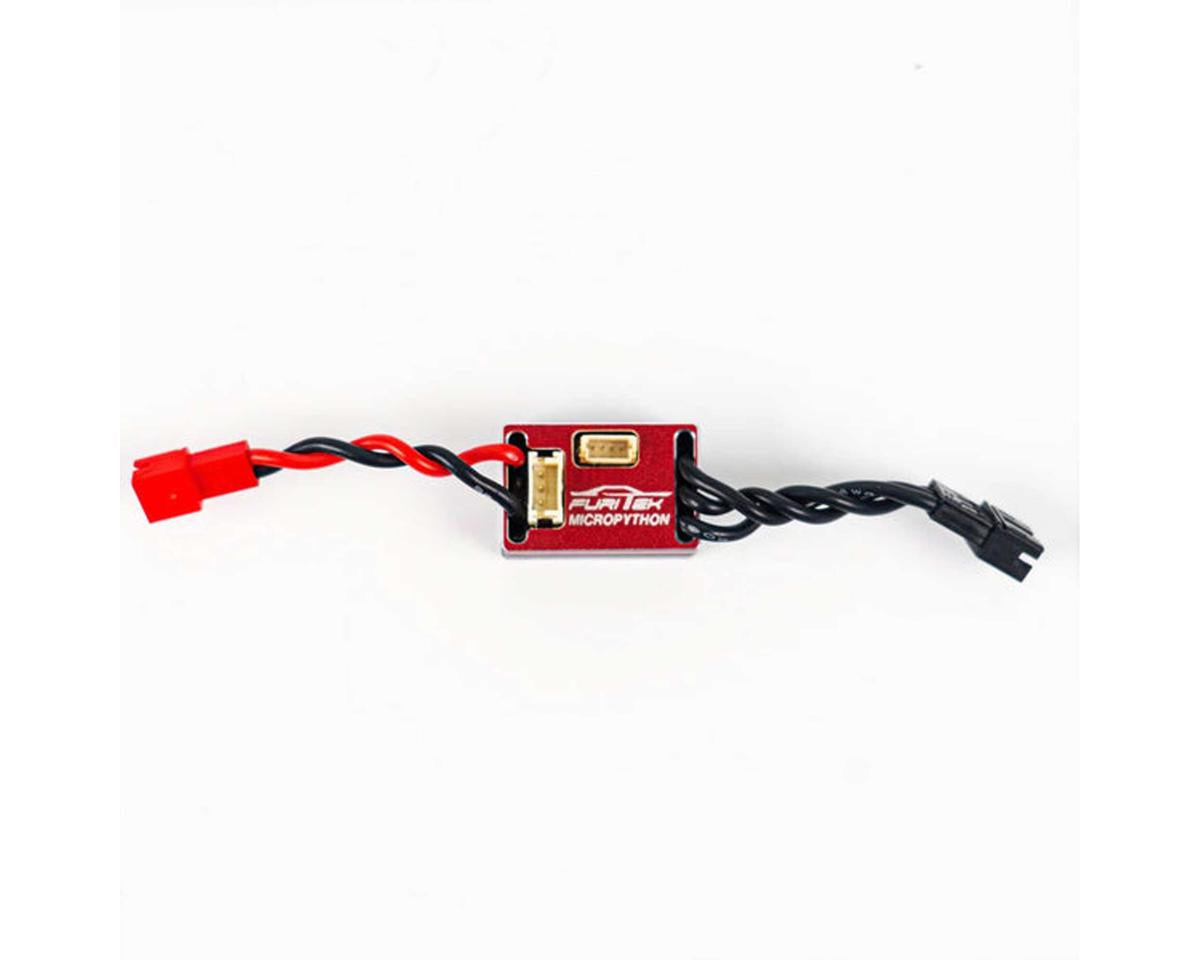

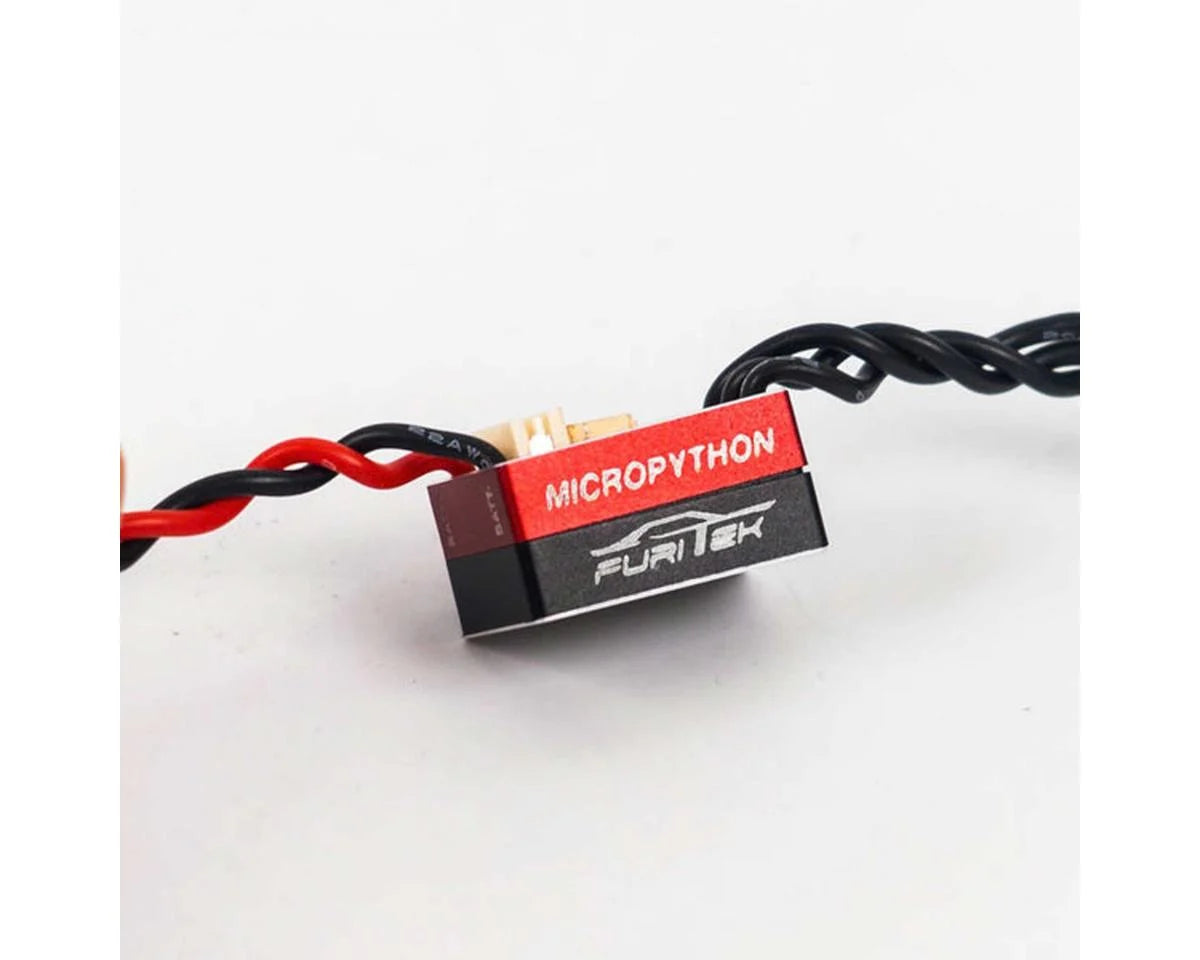

Furitek MicroPython 25A Brushed/Brushless ESC & Wireless Module Micro

ESC Combo Overview:

This is the MicroPython 25A Brushed/Brushless ESC from Furitek. Designed to revolutionize micro crawler performance, this ultra-compact ESC combines cutting-edge technology with unmatched space-saving features, making it the ultimate solution for tight truck builds. Its innovative upward wire configuration, powerful built-in BEC, and smooth control algorithm ensure superior performance without compromise.

Features:

• FOC (Field-Oriented Control) technology
• Live tuning via Furicar app
• Super slow and ridiculously smooth throttle control

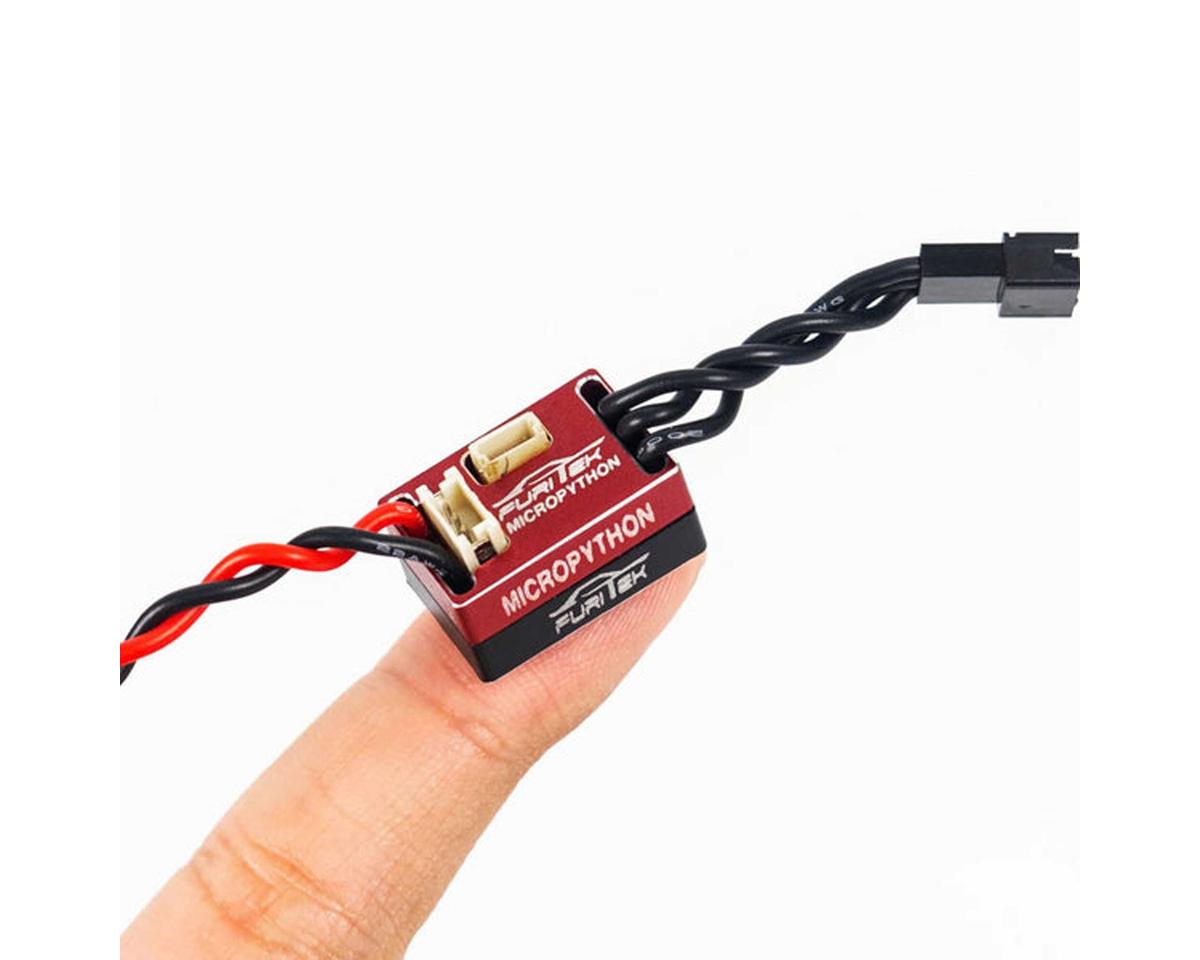

• Micro size and lightweight for tight spaces

Specifications:

• Suggested Application: 1/18-1/24 Crawlers
• Motor Type: Brushless/Brushed
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 25A
• Peak Current: 50A
• Dimensions (LxWxH): 0.87x0.55x0.39in (22x14x9.8mm)
• Weight: 0.27oz (7.6g)
• Motor Limits: -
• BEC Voltage: 5.5V/7.4V
• BEC Continuous Current: 5A
• BEC Peak Current: -
• Motor Connector: 3 Pin
• Battery Connector: JST
• Motor Wire: -
• Battery Wire: -
• Programmable: Furicar App

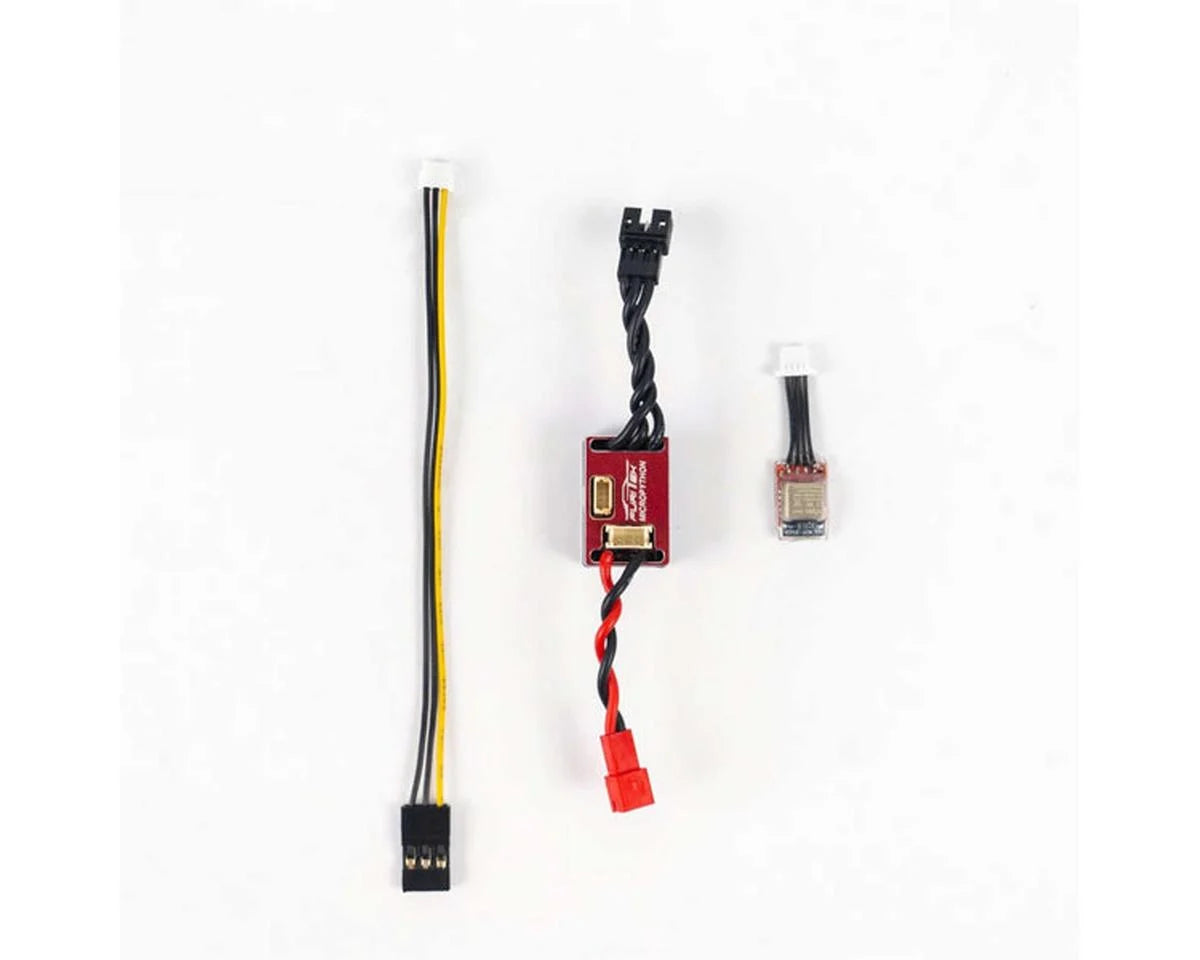

Includes:

• (1) MicroPython 25A Brushed/Brushless ESC
• (1) Wireless module for app control
• (1) Wiring Harness

Needed to Complete:

• 2-3S lipo battery
• Compatible motor (brushed or brushless)
• Micro crawler setup
