Hardpark Hard Park MOA Axle

Motor… on… axle… Yep, it's happening!

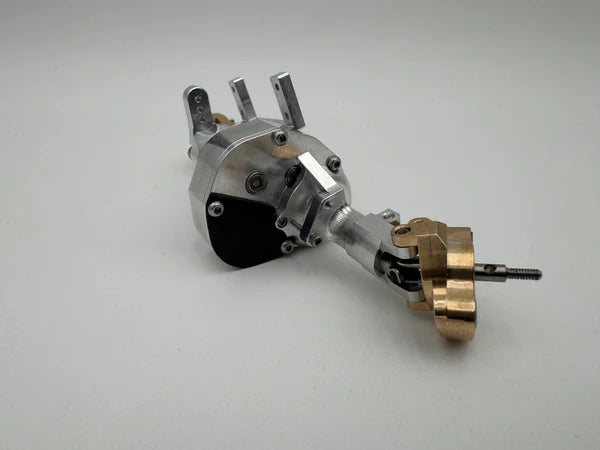

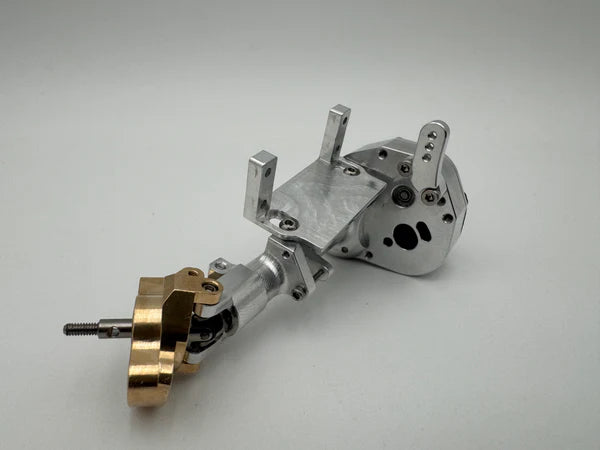

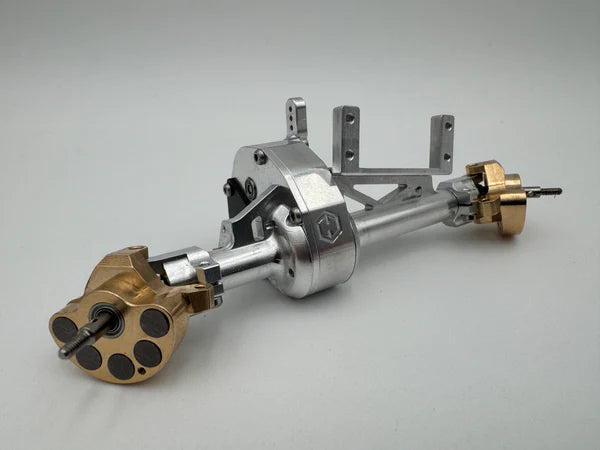

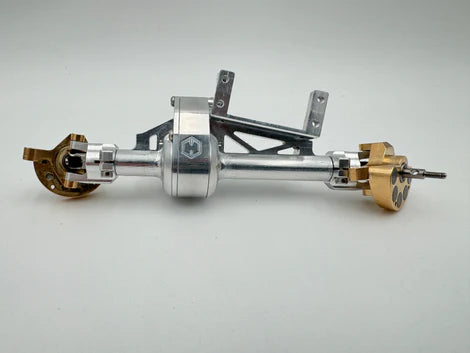

These beauties are machined from 7075 aluminum and feature Gr. 5 mod.3 titanium gears and axle shafts. They also have adjustable c hubs like our shaft axles. Speaking of adjustability, the servo mount is slotted, and the upper link riser can be attached in two different positions. As with all of our axles they come standard with Low Blow knuckles.

Roughly 120mm wide, hex to hex using stock size hex's.

Gear ratio: 90.1:1
Motor mount spacing: 9mm, designed around the Micro Komodo and similar size motors.

Lower link mounts are 11mm wider than stock and shock mounts are 12mm wider than stock.

The motor guard (optional) will need notched for the wires to pass through

NOTES

These are not a universal fit, drop in axle. They will bolt on the Dementor and Valkyrie with our links. Other setups will require modifications.

You will need to bend your links to clear the motor and transmission.

A dual esc will be needed, Dinky RC or BKTT both offer them.

You will need a radio that has the ability to mix the throttle channel. I chose the Flysky Noble NB4. Please do your homework on how to set up your radio.

INCLUDES

1 - Axle with Servo and Link Mounts
