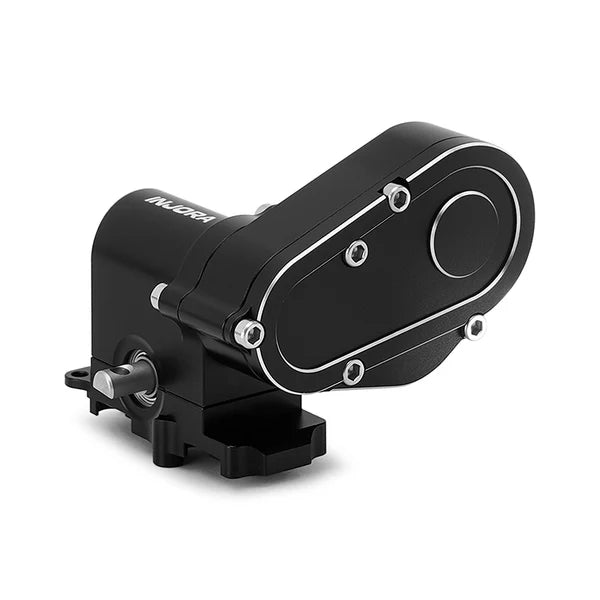

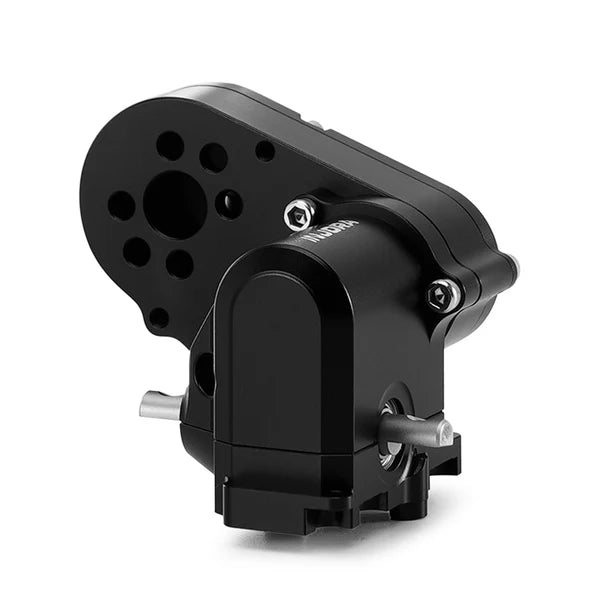

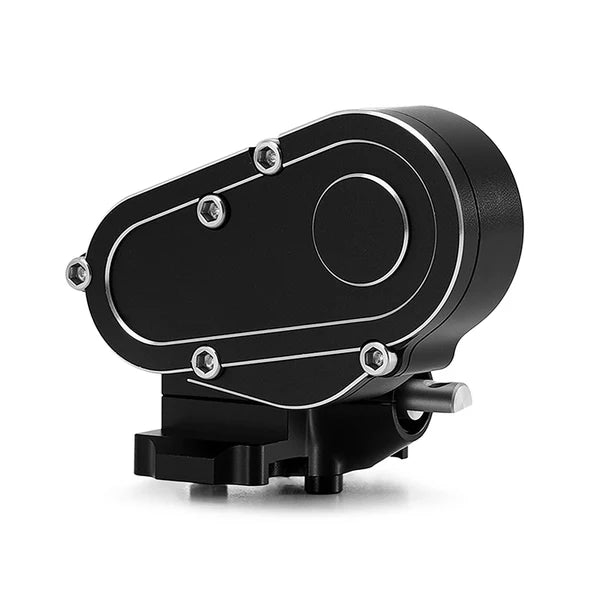

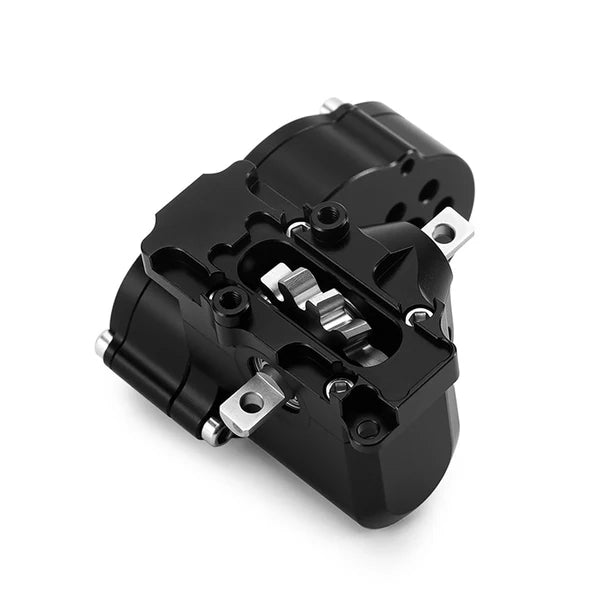

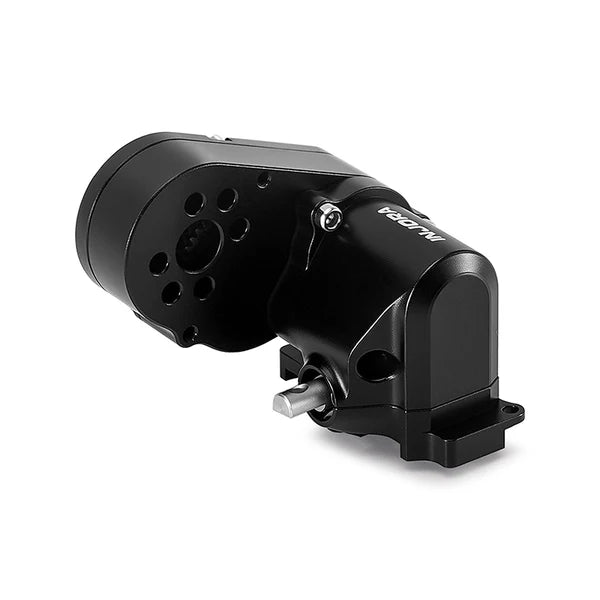

INJORA WG24 Worm Gear Transmission for 1/24 SCX24

INJORA WG24 Worm Gear Transmission Gearbox for 1/24 SCX24

INJORA WG24 worm gear transmission for SCX24 focuses on smoother, more controlled low-speed crawling performance.
It is a direct-fit upgrade for SCX24 drivers who want better control and a cleaner drivetrain setup without replacing the transmission mount.

Features:

• Smoother Low-Speed Control
  SCX30-inspired worm gear transmission tuned for slow, precise crawling. The higher reduction ratio provides stronger holding power on climbs and obstacles, with more controlled throttle response for technical crawling.
• No Motor Adapter Required for Compatible Brushless Setups
  Compatible brushless motors, including the INJORA Purple/Gold Viper 1721, can be installed directly without an extra motor conversion mount. Also supports the 030/050 brushed motor. Other SCX24-compatible brushless motors, such as the Mini24, may fit as well, though gear mesh precision and performance cannot be guaranteed.
• Fits Stock SCX24 Transmission Mount and Driveshafts
  Designed to fit the stock SCX24 or INJORA transmission skid plate and work with stock SCX24 driveshafts, making the drivetrain installation more straightforward.
• More Flexible Chassis Layout with Less Body Interference
  The forward transverse motor layout helps create more usable space for batteries, ESCs, receivers, and other electronics, while placing the motor in a more open area inside the body. This gives builders more freedom to adjust LCG setups and internal component placement, and can reduce interference with the hood or cab area on some scale builds.

Note: On stock chassis, the ESC tray needs to be trimmed or removed for clearance.

Gear Ratio Reference:

• Stock SCX24 transmission with 11T pinion: 13.4:1
• INJORA WG24 transmission with 11T pinion: 16.4:1
• INJORA WG24 transmission with 12T pinion: 15.0:1

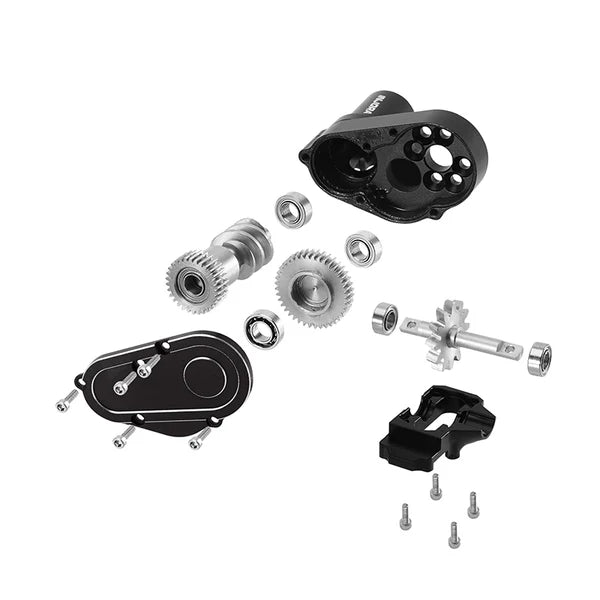

Specifications:

• Part Number: SCX24-200BK
• Housing Material: Aluminum
• Gear Material: Stainless Steel
• Transfer Gear: 30T
• Idler Gear: 40T
• Worm Gear: 2/12T
• Weight: 23.8g

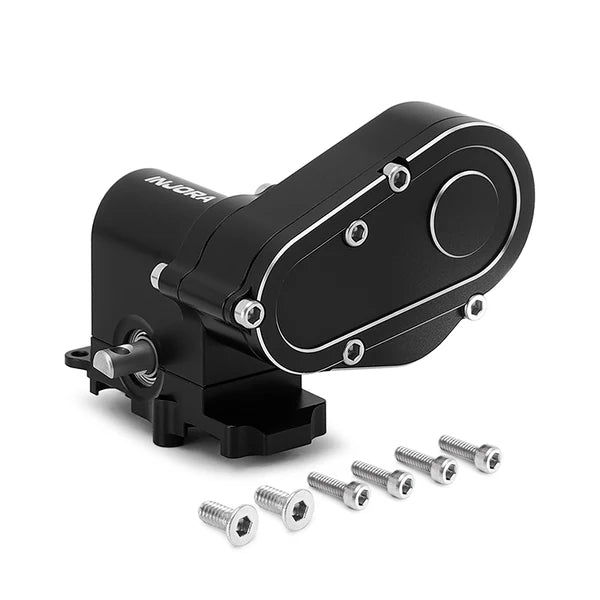

Package List:

• 1 × WG24 Transmission
