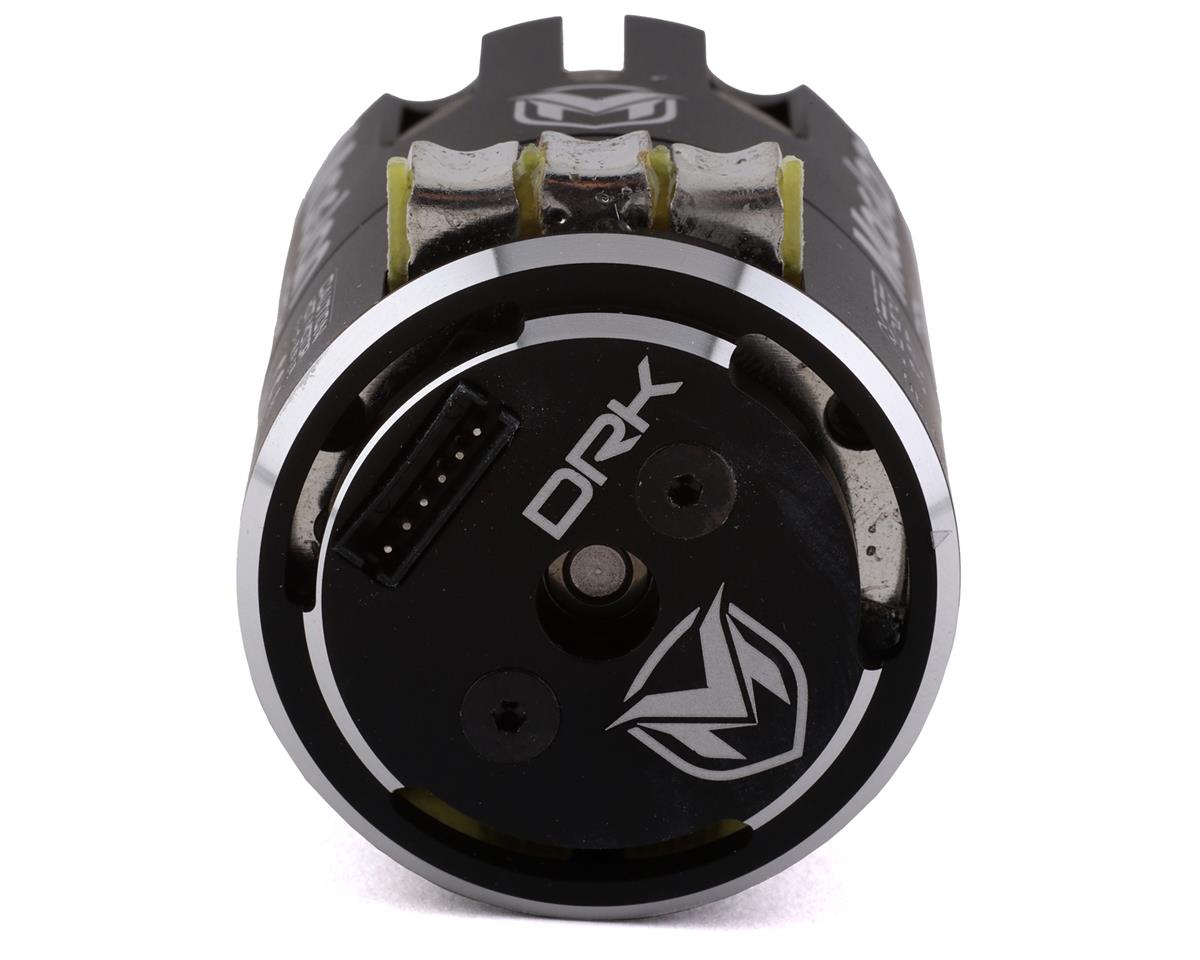

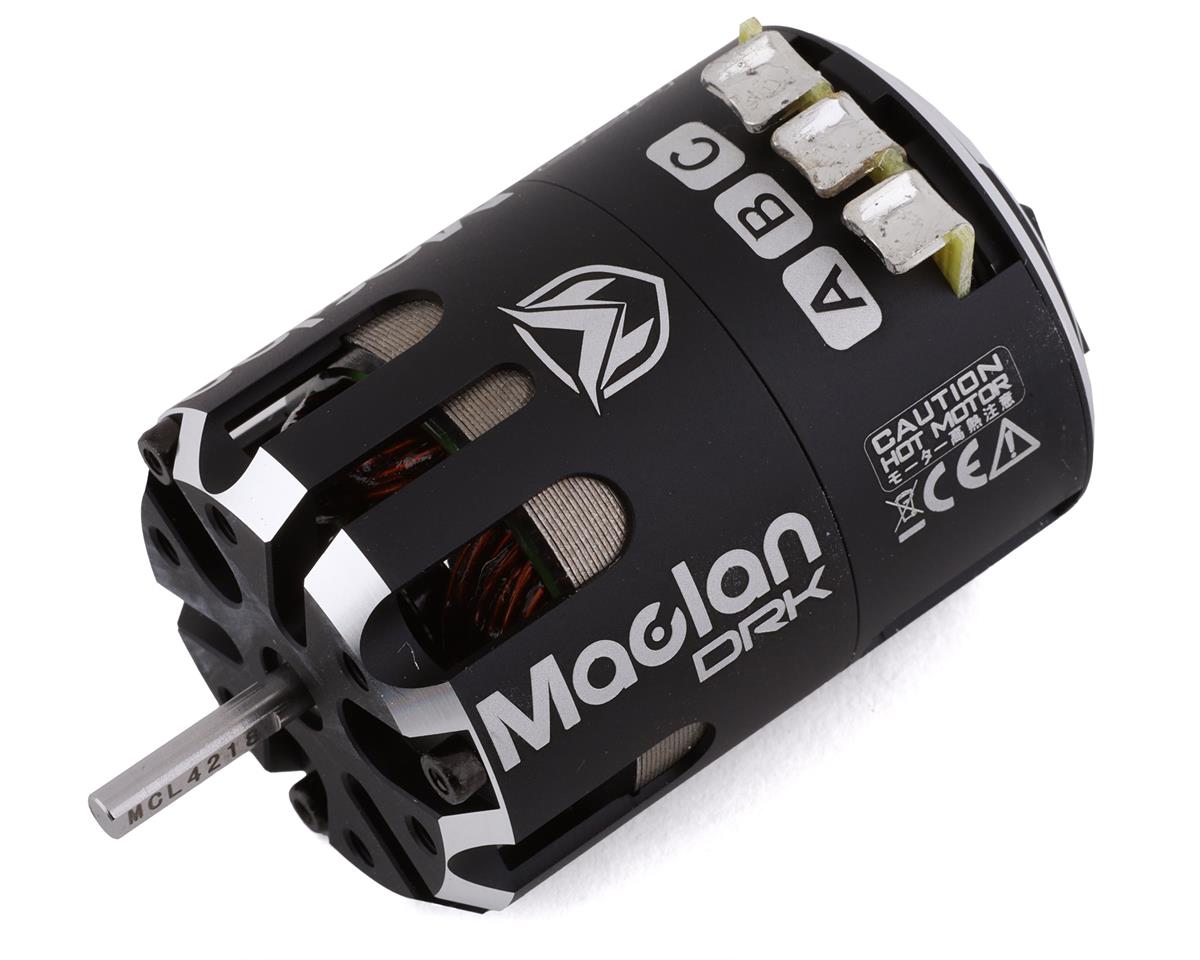

DRK Drag Motor is based on the successful V2 platform with various updates to improve overall performance specifically for the drag race. It is a pure drag race motor to work the best with the DRK 160 ESC. The DRK motor have some remarkable features:
- Engineered & Developed right here in the U.S.A.
- 100% hand-built.
- Available in 4.5T, 3.5T, and 3.0T

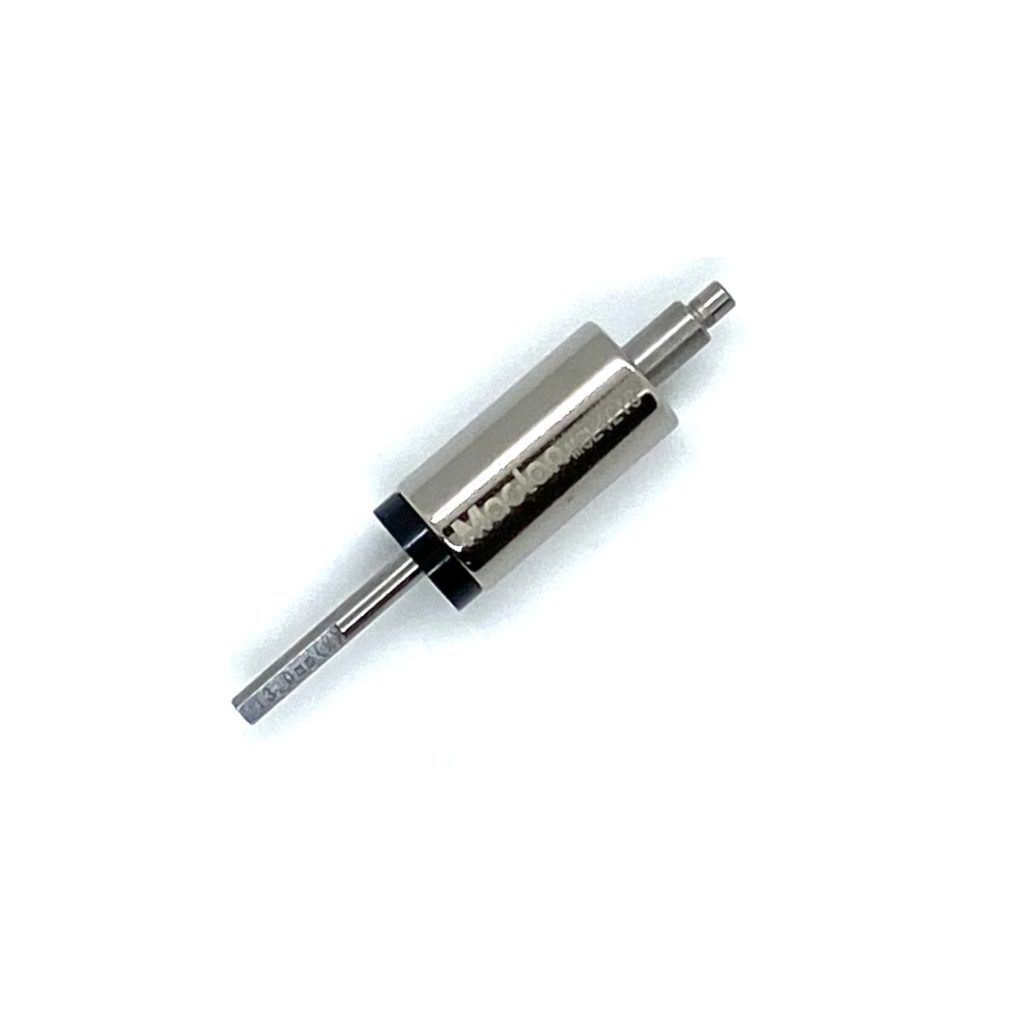

- All new 13mm DRK Ultra High Torque Rotor (MCL4218).
- Precisely aligned sensor gap for the most accurate reading.
| Item | Value |
|---|---|
| Available Turns: | 3.0/3.5/4.5 |
| Case Length: | 2.02in/51.50mm |
| Case Diameter: | 1.42in/36mm |
| Shaft Extension: | 0.552in/14mm |
| Shaft Size: | 3.17mm |
| Weight: | 3.0T@155g/ 3.5T@152g/ 4.5T@158g |
| Poles: | 2 Poles |
| Default Rotor: | MCL4218 13mm Ultra High Torque (Black) |
| Bearing Size: | 1/8" x 3/8" x 5/32" ( ID: 3.175mm OD: 9.525mm H: 3.9675mm) |
DRK Drag Motor is based on the successful V2 platform with various updates to improve overall performance specifically for the drag race. It is a pure drag race motor to work the best with the DRK 160 ESC. The DRK motor have some remarkable features:
- Engineered & Developed right here in the U.S.A.
- 100% hand-built.
- Available in 4.5T, 3.5T, and 3.0T
- All new 13mm DRK Ultra High Torque Rotor (MCL4218).
- Precisely aligned sensor gap for the most accurate reading.
| Item | Value |
|---|---|
| Available Turns: | 3.0/3.5/4.5 |
| Case Length: | 2.02in/51.50mm |
| Case Diameter: | 1.42in/36mm |
| Shaft Extension: | 0.552in/14mm |
| Shaft Size: | 3.17mm |
| Weight: | 3.0T@155g/ 3.5T@152g/ 4.5T@158g |
| Poles: | 2 Poles |
| Default Rotor: | MCL4218 13mm Ultra High Torque (Black) |
| Bearing Size: | 1/8" x 3/8" x 5/32" ( ID: 3.175mm OD: 9.525mm H: 3.9675mm) |
- Regular price
- $119.95
