The NanoBam is our most popular nano/compact sized brushless motor. It has more torque and a small speed increase over our slightly smaller NanoBeast. However, it is a tighter fit with the stock SCX30 chassis and requires some slight shaving of the plastic chassis rail to ensure free movement.

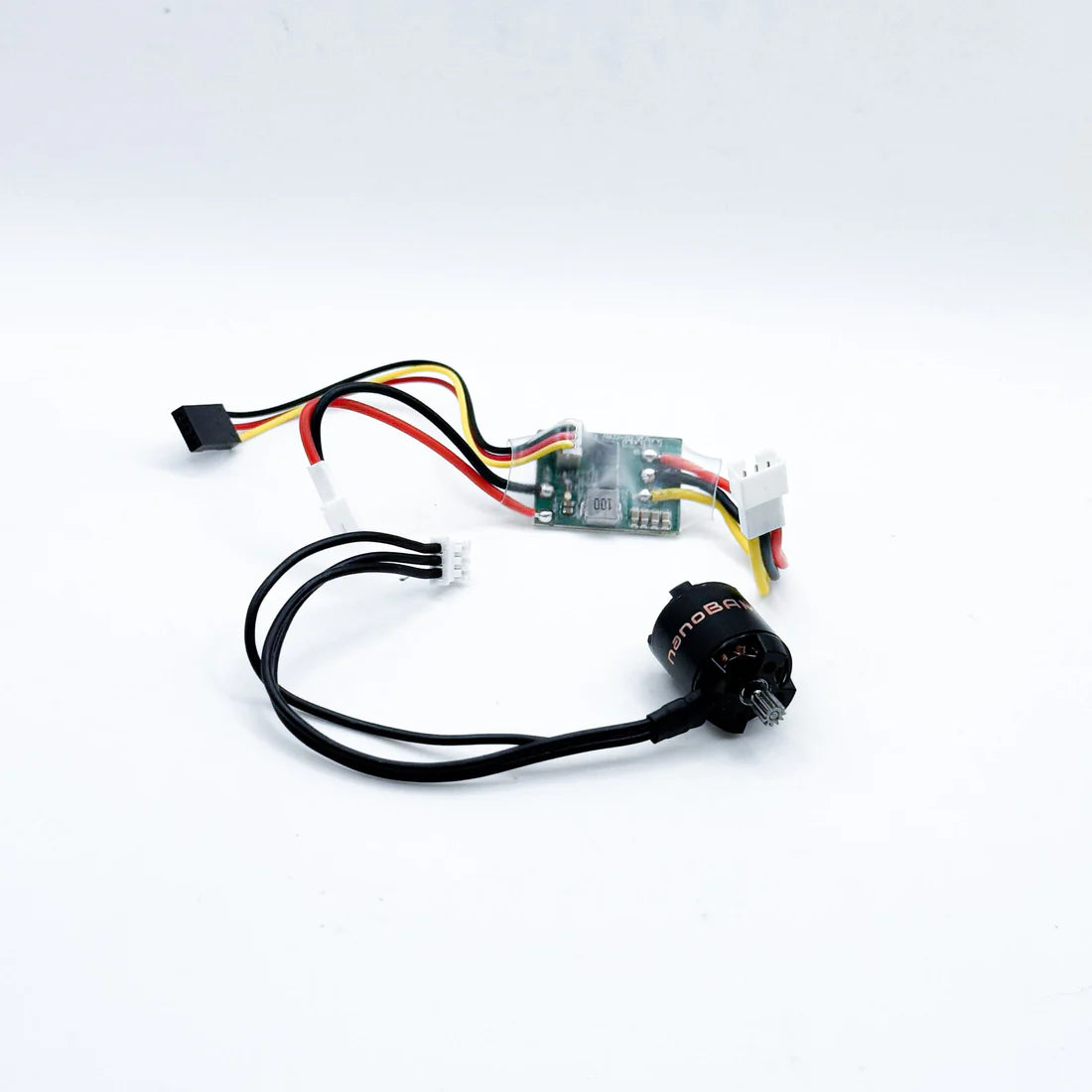

Includes

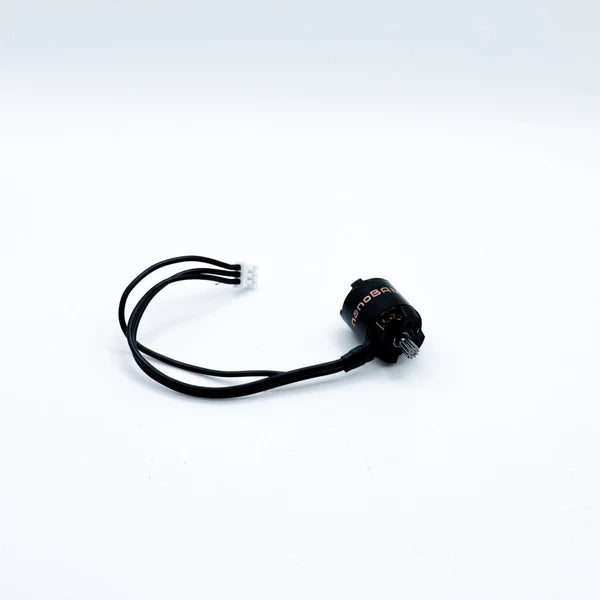

- Mofo RC | NanoBam Motor w/ Pre-Installed Mod.3 11t Pinion

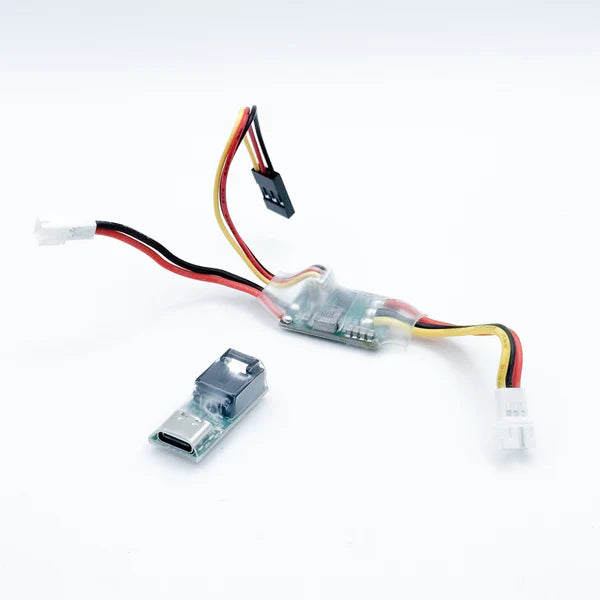

- Mofo RC | Rockwolf 32 Bit ESC
Note: This combo will require you to change the stock receiver/esc 2-in-1 combo as it does not have a channel 2 throttle port like an SCX24.
Specs and Dimensions
| KV | 3500 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 9mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 21mm |
| Weight | 16 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
Here at Iron City EVERY Package Shipped is signed by the employee that packs it!
We Strive to Ship Same Day!
