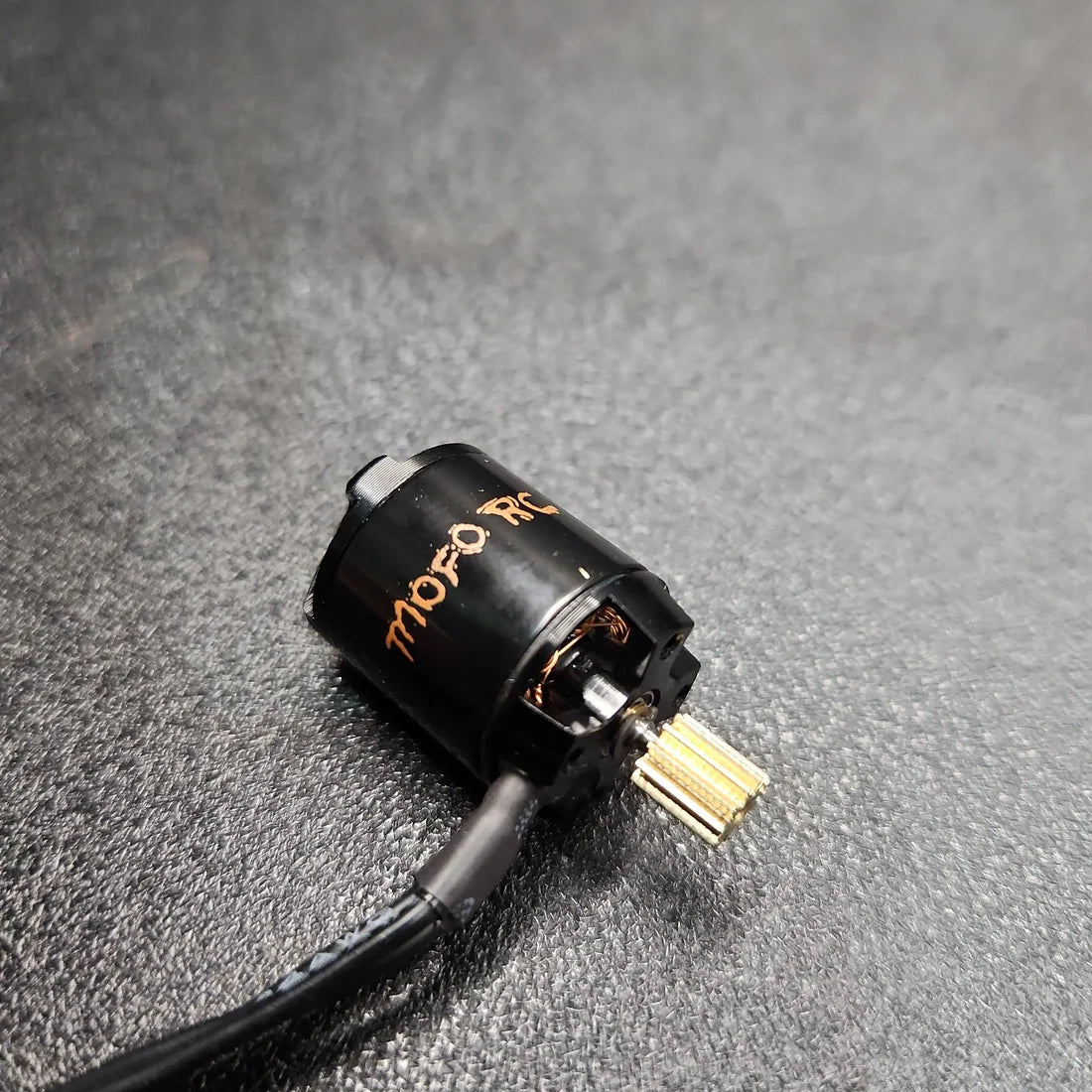

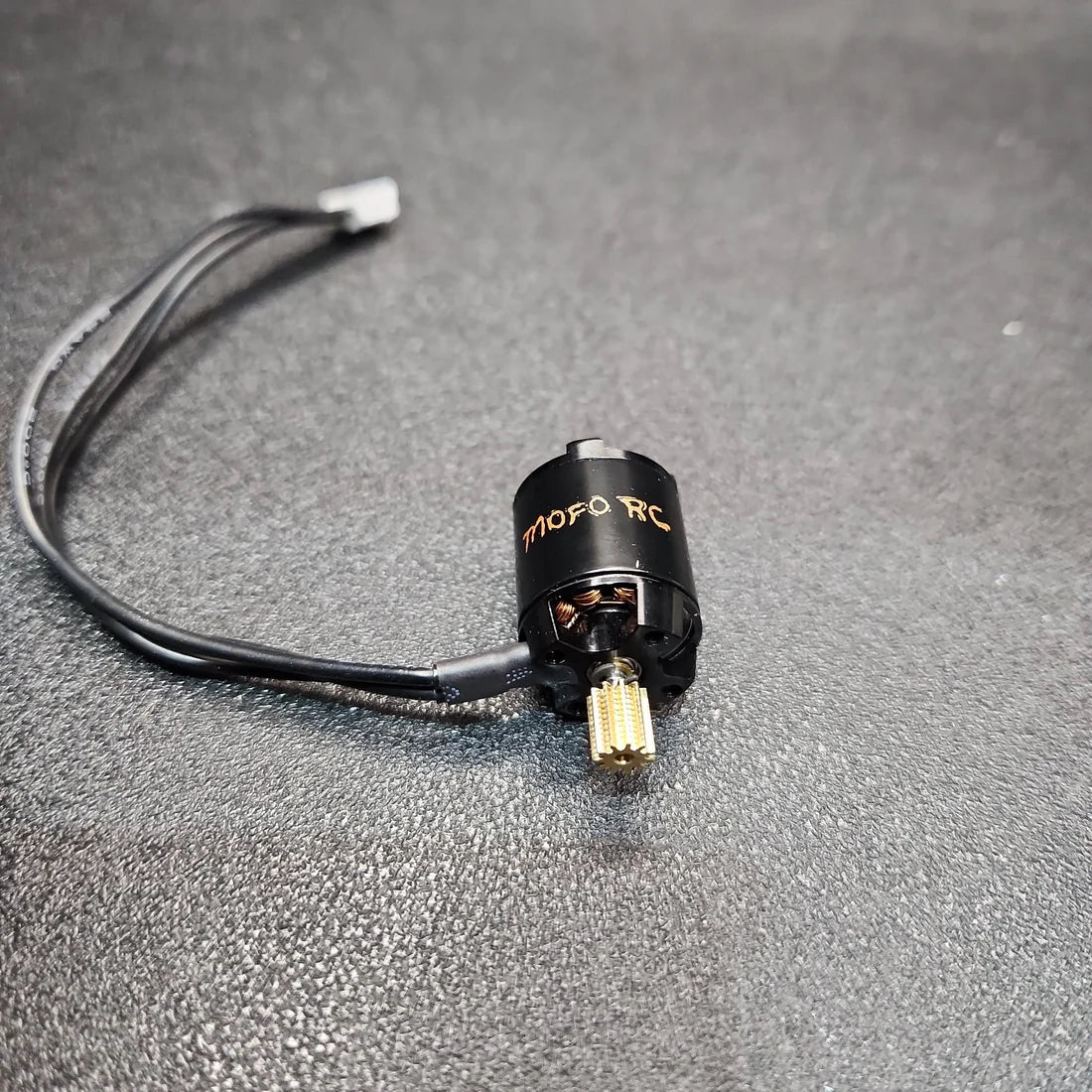

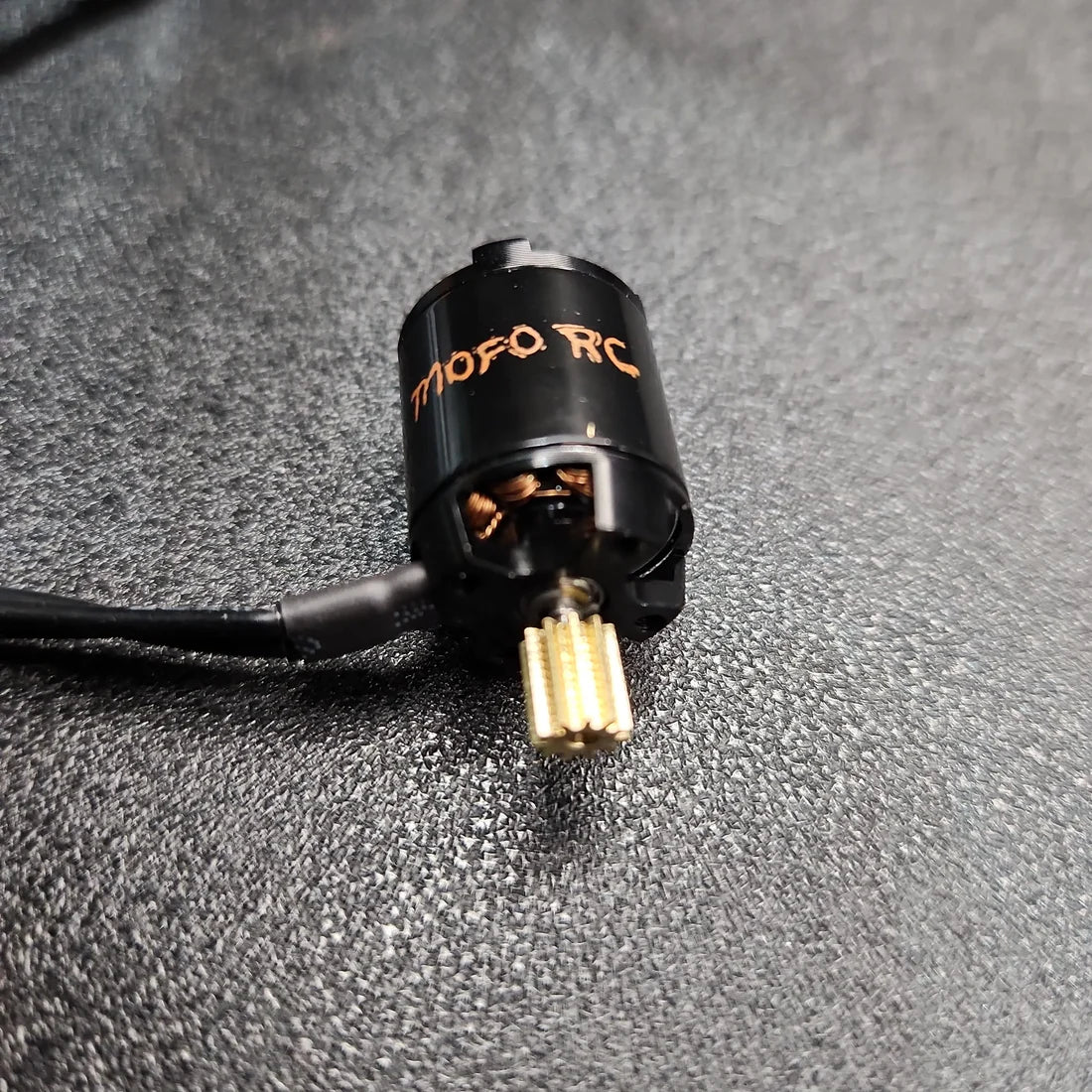

The NanoBam XL is a slightly longer motor with a larger 12mm bolt pattern motor compared to our standard NanoBam line. It is intended for heavier vehicles such as the Redcat Ascent-18 series as a replacement for the 130 or 180 sized brushed motors.
The 1900KV motor is designed primarily for crawling, while the 3200KV offers significantly higher speed without sacrificing much crawling capability. Both motors fit directly onto the Ascent-18 with no modifications needed.
- Includes pre-installed Mod.4 12t pinion gear.
Notes
- The motor can must be able to spin freely. If there is for some reason anything touching, you must sand or fix the clearance issue before running. This should not be required for the Redcat.
Specs and Dimensions
| KV | 1900/3200 |
| Voltage | 2-3s Lipo |
| Bolt Pattern | 12mm |
| Poles | 12 Pole, 9 Slot |
| Stator Diameter/Length | 12mm x 11mm |
| Shaft Diameter | 1.5mm (Accepts Press-Fit Pinions Only) |
| Case Diameter/Length | 16.3mm x 23mm |
| Weight | 16.8 grams |
| Wire Length | 125mm |
| Connector | Standard PH2.0 3 pin |
