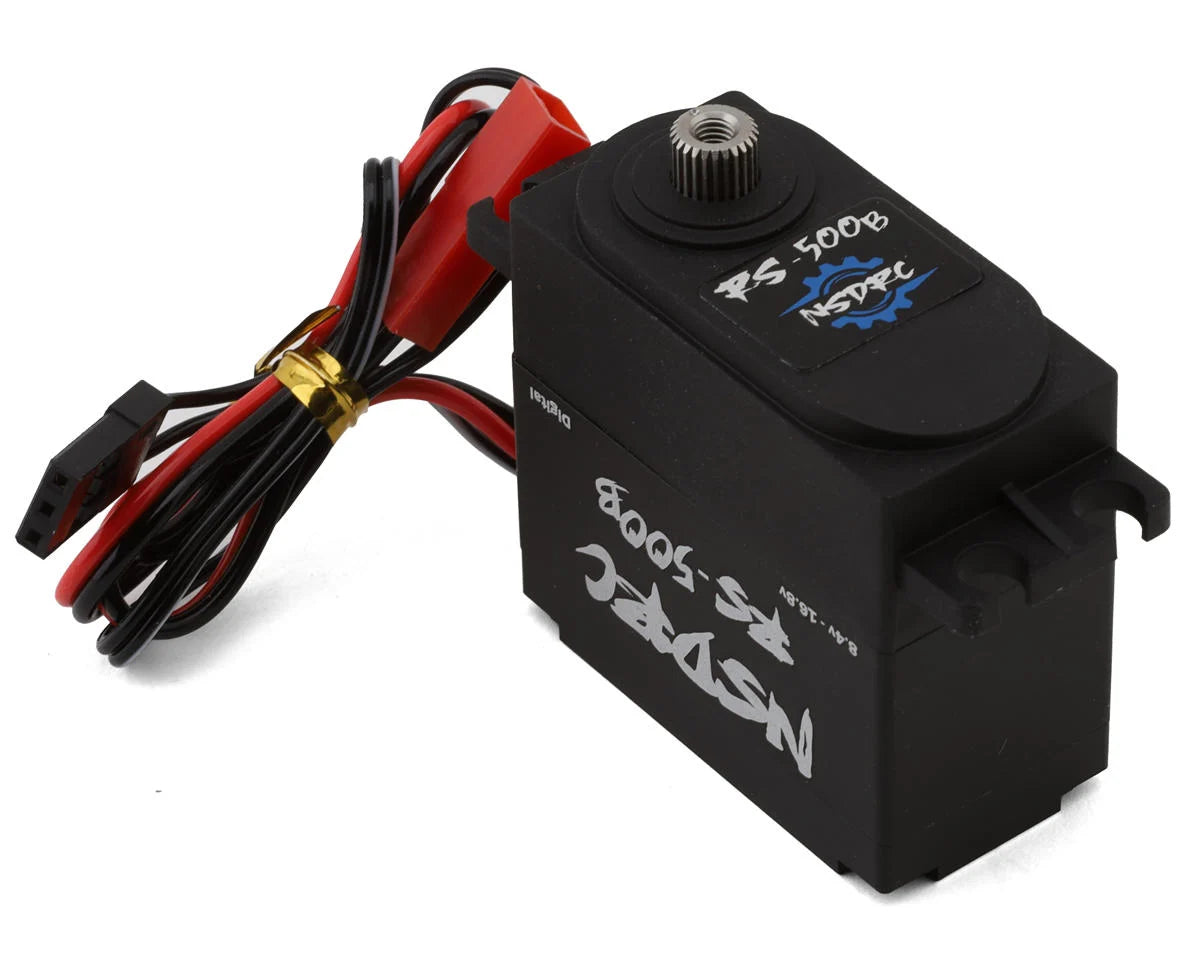

NSDRC RS500B High Torque Servo (High Voltage)

No Superior Designs RS500B High Torque Servo. Designed to be stronger, faster, and more durable than almost all other servos in its class! This budget minded performance servo is loaded with high quality and performance features such as hardened stainless steel gears, CNC-machined aluminum middle and bottom case, IP66 water resistant design, full conformal coated internals and high voltage (HV) 8.4V-16.8V capabilities at an extremely budget-friendly cost!

NOTE:

• The power connection plug, or power switch on your ESC, must be disconnected or turned off when not in use to prevent damage to the servo and/or battery!
• Not Recommended for rock bouncers & bashers

Features:

• Hardened stainless steel gears
• Composite top case with CNC-machined aluminum middle and bottom case
• IP66 water resistant (Do not Submerge)
• 7-point O-ring seals
• Full conformal coated internals
• High voltage (HV) capable
• Direct power 8.4V-16.8V capable with no extra wiring or BEC are needed in order to get full power out of the servo

Specifications:

• Type: Standard
• Motor Type: Coreless
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40.5x39x20mm
• Weight: 68g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 310oz/ 22kg
• 12.6V: 430oz/ 31kg
• 16.8V: 520oz/ 38kg
• Speed:
• 8.4V: 0.15 sec/60°
• 12.6V: 0.12 sec/60°
• 16.8V: 0.09 sec/60°

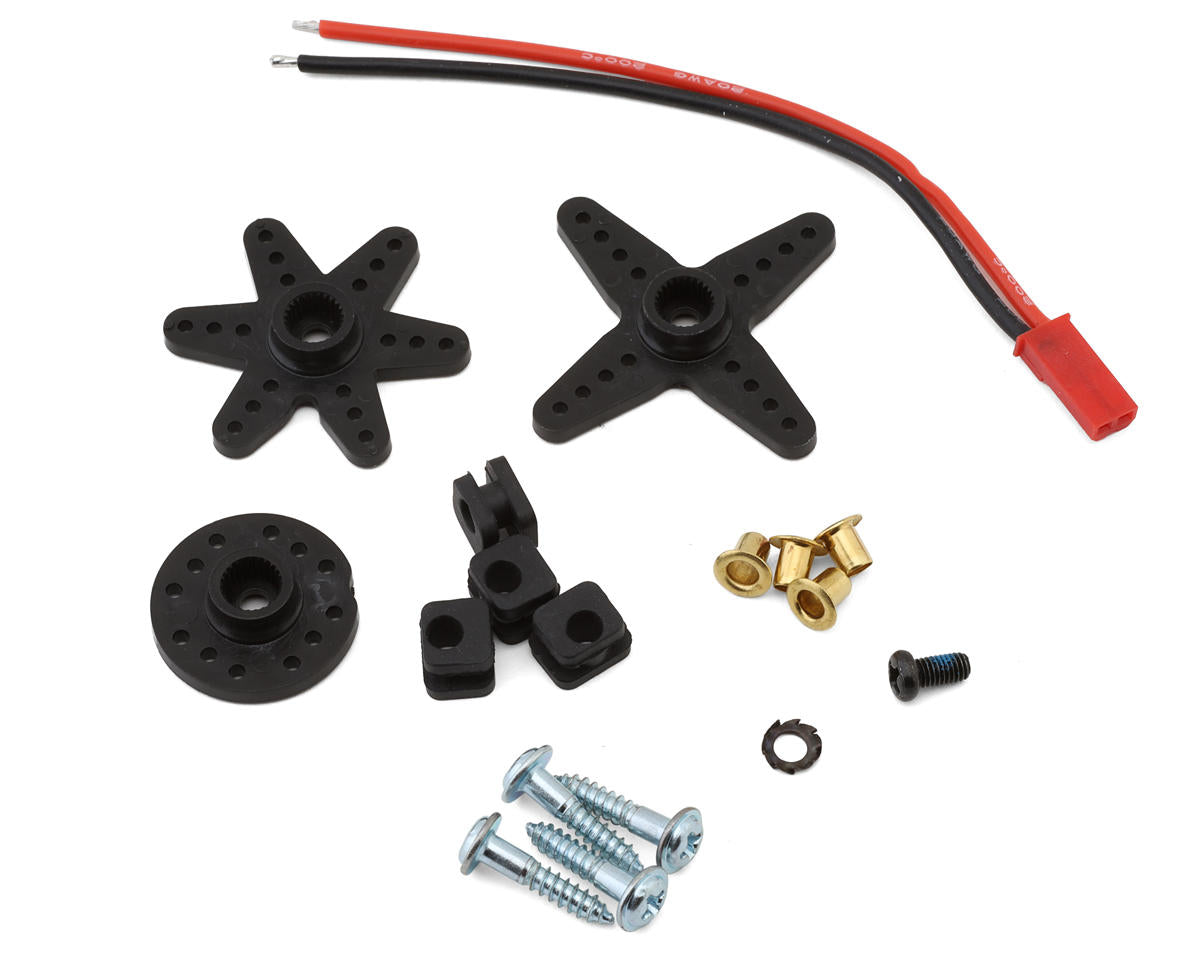

Includes:

• (1) RS500B High Torque Servo (High Voltage)
• Multiple composite horns
• Mounting screws, bushing and rubber grommets
