PN Racing  |  SKU: MR2055PC

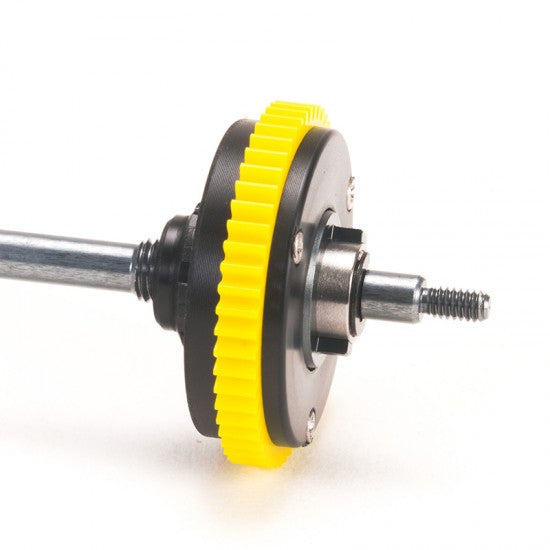

PN Racing Mini-Z 2WD V3 Precision Enclosed Gear Differential 64P 53T

$59.99


Feel Free to Contact Us with any Questions!

Description

PN Racing Mini-Z 2WD V3 Precision Enclosed Gear Differential 64P 53T

V3 version comes with 3x6x2.5mm Thrust Ball Bearing

  • Light weight. Minimal rotational inertia for fast acceleration.
  • The axle has been revised to 3mm (both sides use the same size bearing/bushing now)
  • Fast gear ratio changes. No disassembly of the differential is necessary for a spur gear change.
  • Adjustable side gear tension for tight or loose differential action.
  • Smooth quiet operation. No gear noise and vibration associated with stock differential
  • With the Enclosed case, Racers can add diff grease to fine-tune diff action, the covers also help reduce dust and particles on diff gears therefore less maintenance.
  • Comes with the newest Brass Spyder Gear (MR2055B) for ultra-smooth action
  • Do Not Come with Pinion Gears (you will need 64P Pinion gears of your choice)



Changing Spur Gear Ratio:

  1. Remove 3 screws on the covers and remove both covers
  2. Loosen the Tension Nut to separate the side gears
  3. Allow spider gear pins to recess into the carrier. Depress with a screwdriver if necessary, as shown by the arrows
  4. Remove the spur gear
  5. Installation is the reverse of removal
