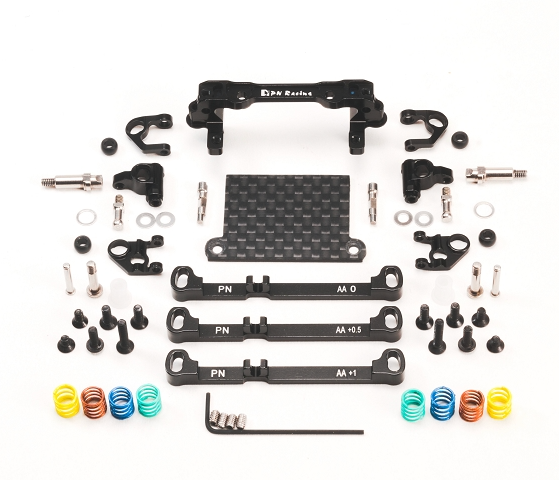

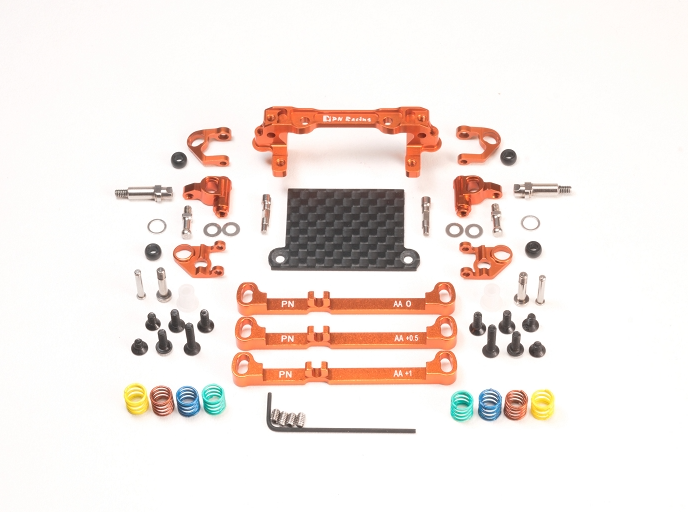

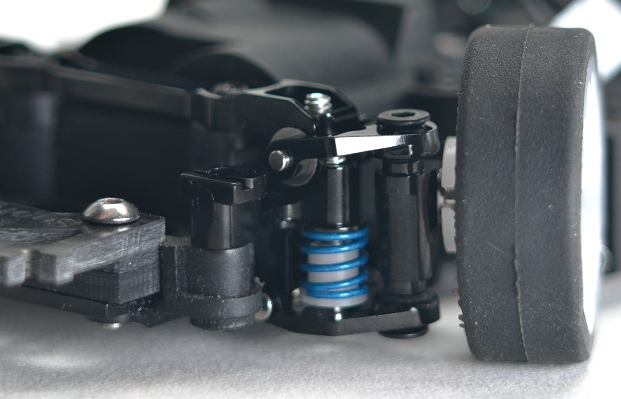

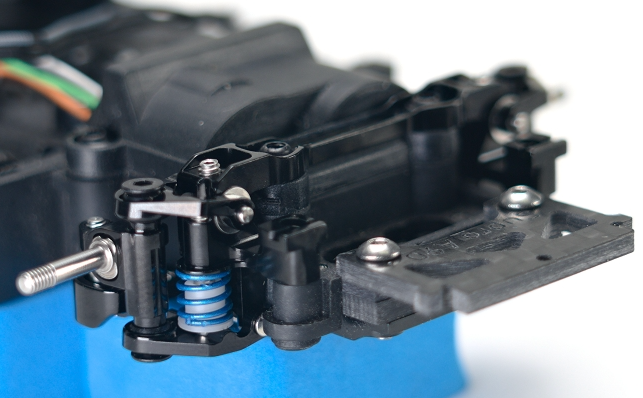

PN Racing Mini-Z V4 MR03/PNR2.5W Double A-Arm Front Suspension (Choose Color)

•Unequal length A-Arm suspension for MR-03 chassis.

–Modeled after full-scale performance car suspension for realism.

–Double A-Arm suspension gives good control of suspension geometry and roll center during travel.

–Camber change with suspension compression during cornering keeps wheels near vertical for maximum tire contact with the road. Allows for precise cornering and maximum road holding.

•Direct suspension swap

–Same width as stock. (MR02/ MR03 PNR2.5W Chassis width)

–Ride height remains the same as stock.

–0.5mm wider front steering geometry for less offset and faster steering. Overall width still remains the same to fit Auto Scale bodies.

•No bump steer throughout suspension travel.

•Suspension movement use ball joints instead of sliding knuckles. Eliminates constriction associated with sliding pin especially with high offset wheels.

–Low constriction results in consistent cornering.

•Machined aluminum ball socket instead of snap-fit. Joints will not pop out even during a hard collision.

•Adjustable camber from 0-2° degrees with 1.3°/mm of camber gain.

•Adjustable caster from 0-1.8° degrees

•4 positions adjustable upper A-Arm pivot

–Changes camber gain, static camber and roll center

–Quick adjustment with set screw

•Includes 3 tie-rods: 0° , +.5°  and +1°

•Quick down stop adjustment with the turn of a nut

•Benefits of the sophisticated suspension system are precise cornering and maximum road holding which adds to mini-z driving pleasure
