PN Racing | SKU: 500807A

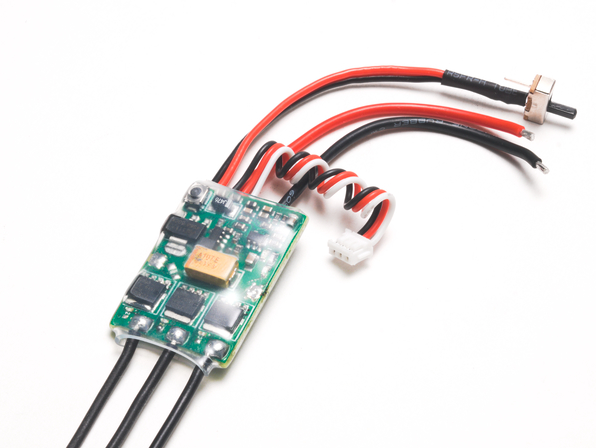

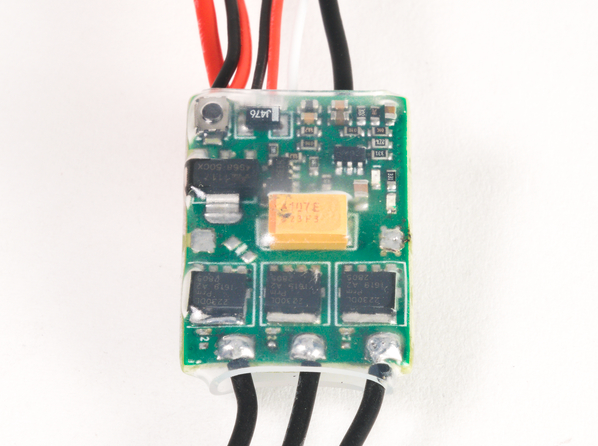

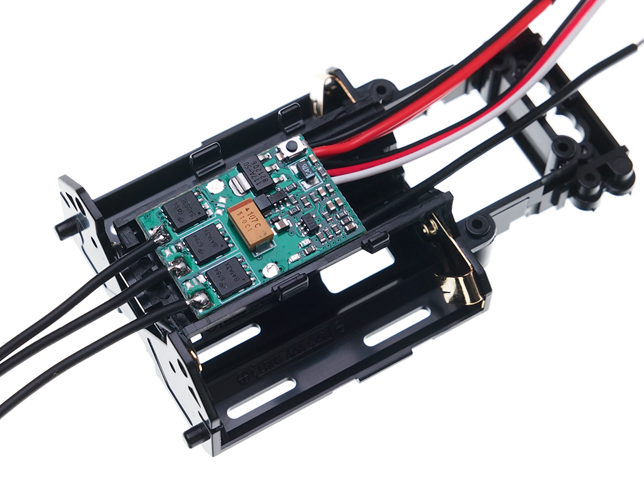

PN Racing V2 Micro Brushless 16A Speed Control Unit

Name: PN Racing V2 Micro Brushless 16A Speed Control Unit
Brand: PN Racing
SKU: 500807A
Price: 29.50 USD
Availability: InStock

$29.50

Pickup available at ICRC Complex

Usually ready in 24 hours

Care information

Every Package Shipped From Iron City is Signed Personally From One of the employees that packed it!

Delivery and Shipping

We Strive to Ship Same DAY! On Orders Placed before 1pm EST

Going Fast! Order Today

Description

Designed for micro RC car

1/24 to 1/18 2WD or AWD

Sensorless Brushless Motor

size: 30mmx20mm

Continues Current 16A

Burst Current 48A

Resistance 0.01 ohm

Battery 4 Cells NiMH or 2 Cells Lipo

BEC Output 5 volt 1A

Motor Type Sensorless Brushless Motor

Specially designed for RC car and truck, with excellent starting up, acceleration and linearity features.

Compatible with sensorless brushless motor.

3 running modes suitable for different applications

Forward with brake mode / Forward-Backward with Brake mode / Forward-Backward no Brake Mode

4 steps of maximum reverse force adjustment.

Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment.

9 start modes from “Short” to “Smooth” to be suitable for different chassis, tires and tracks.

7 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.

8 steps of timing adjustment.

User programmable. Supported as: The “SET” button on the ESC, the digital LED Programmer 500808, also compatible HobbyWing LED Program Card 30501003 and HobbyWing LCD Professional Program Box 30502000 with 500809 Programmer Cable JST1.5 Plug
