Power HD  |  SKU: STORM-S35-SLV

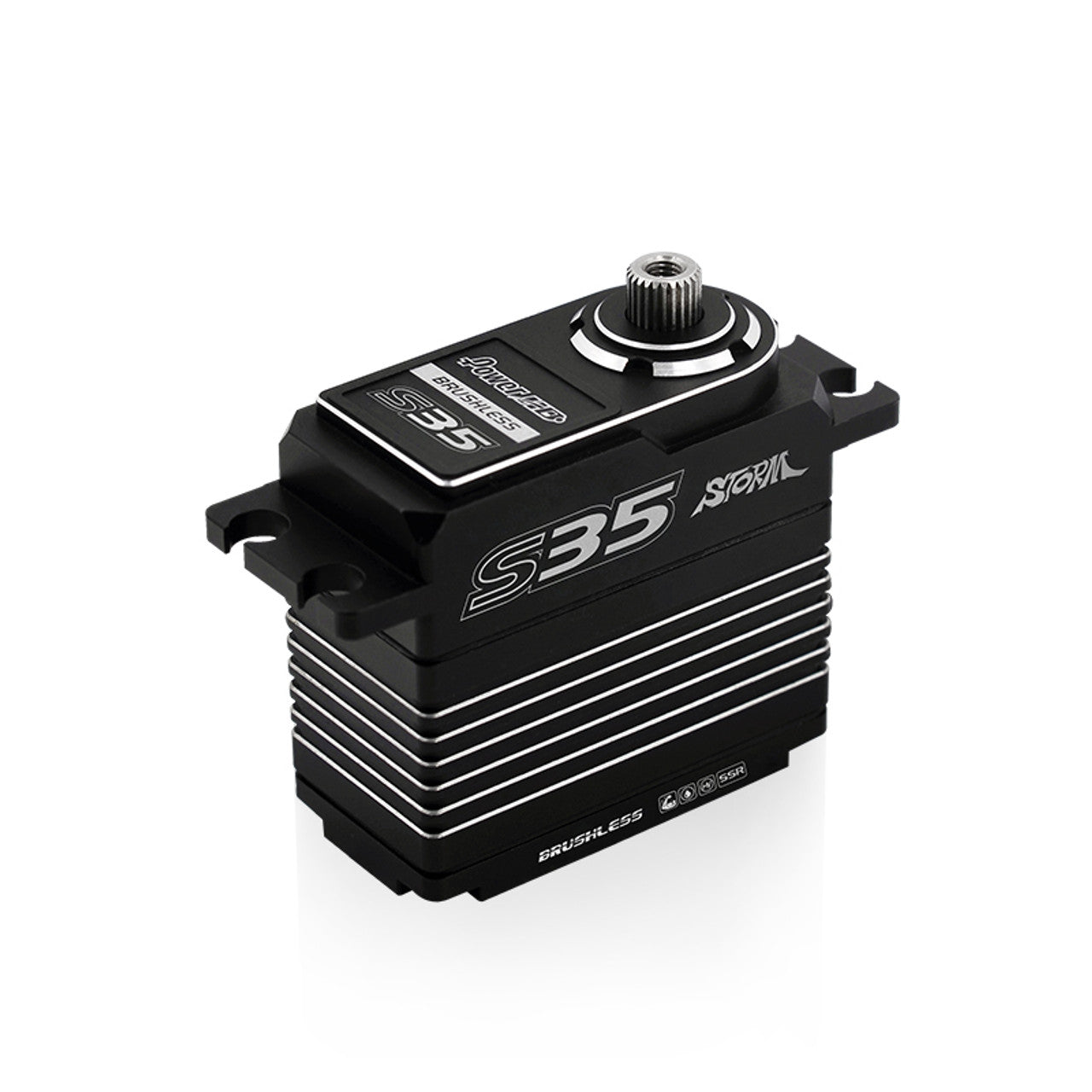

Power HD S35 Silver (0.075s/30.0kg/7.4V) Brushless Servo

$129.00


Feel Free to Contact Us with any Questions!

Description

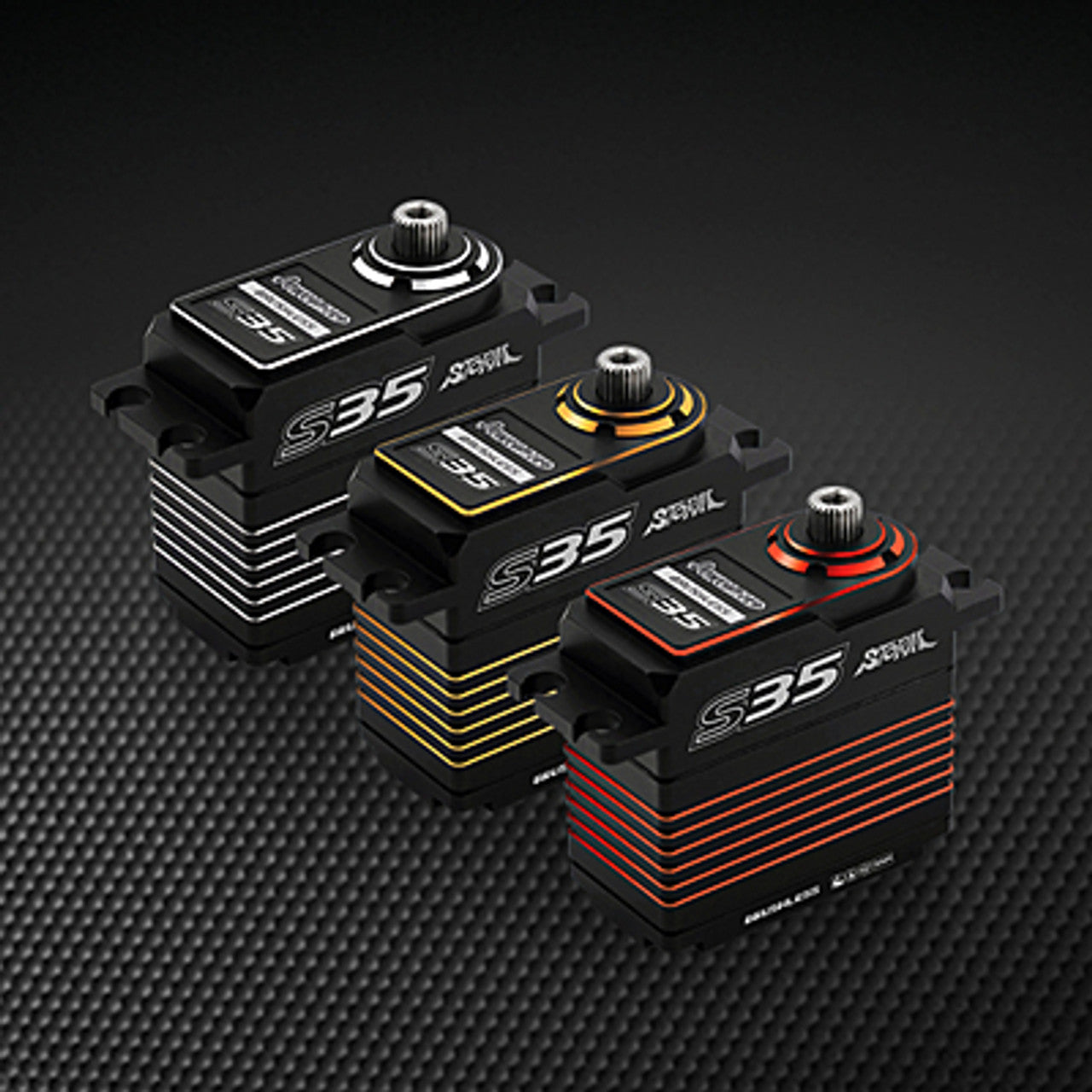

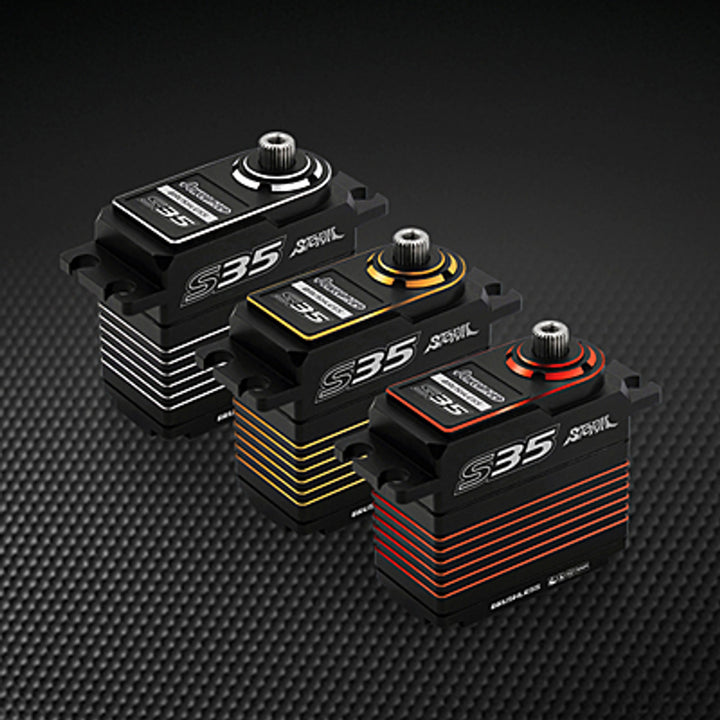

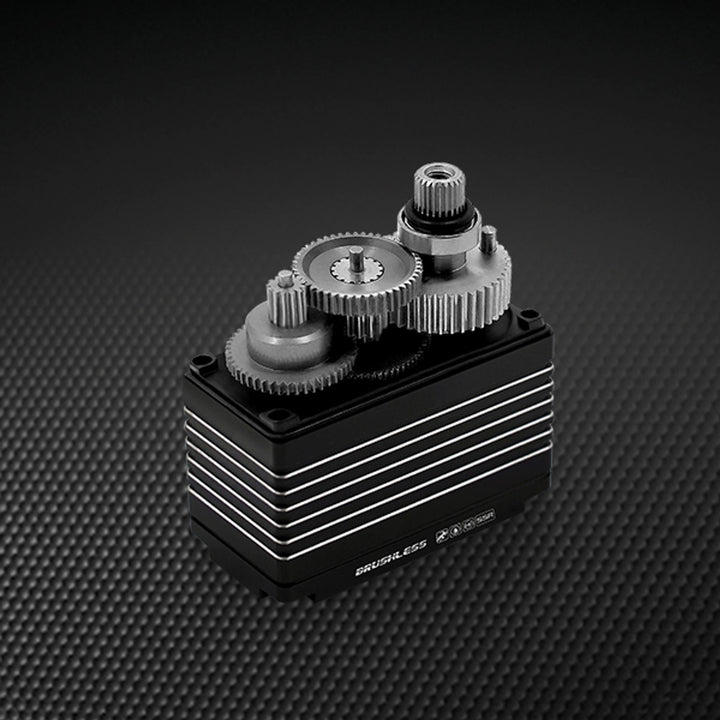

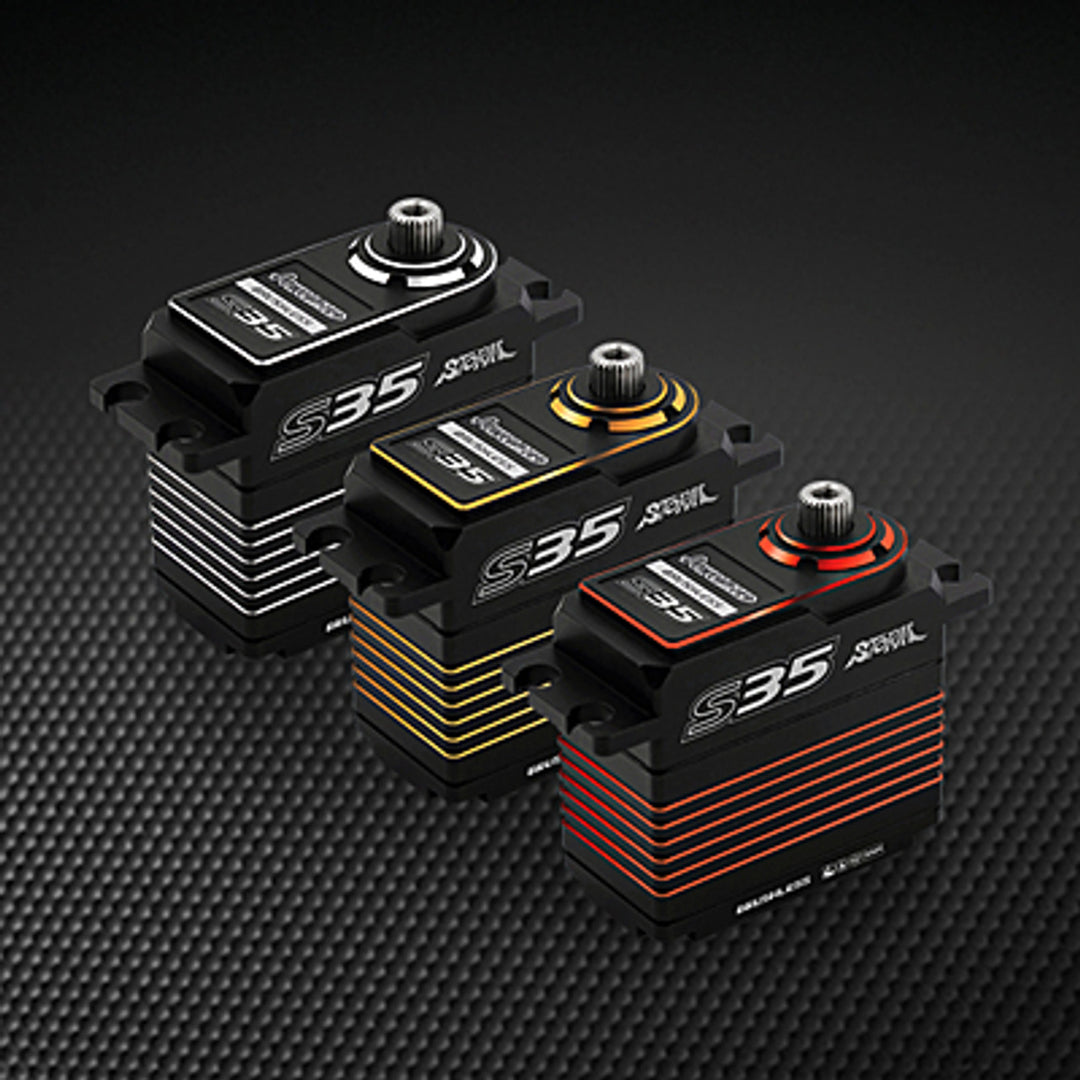

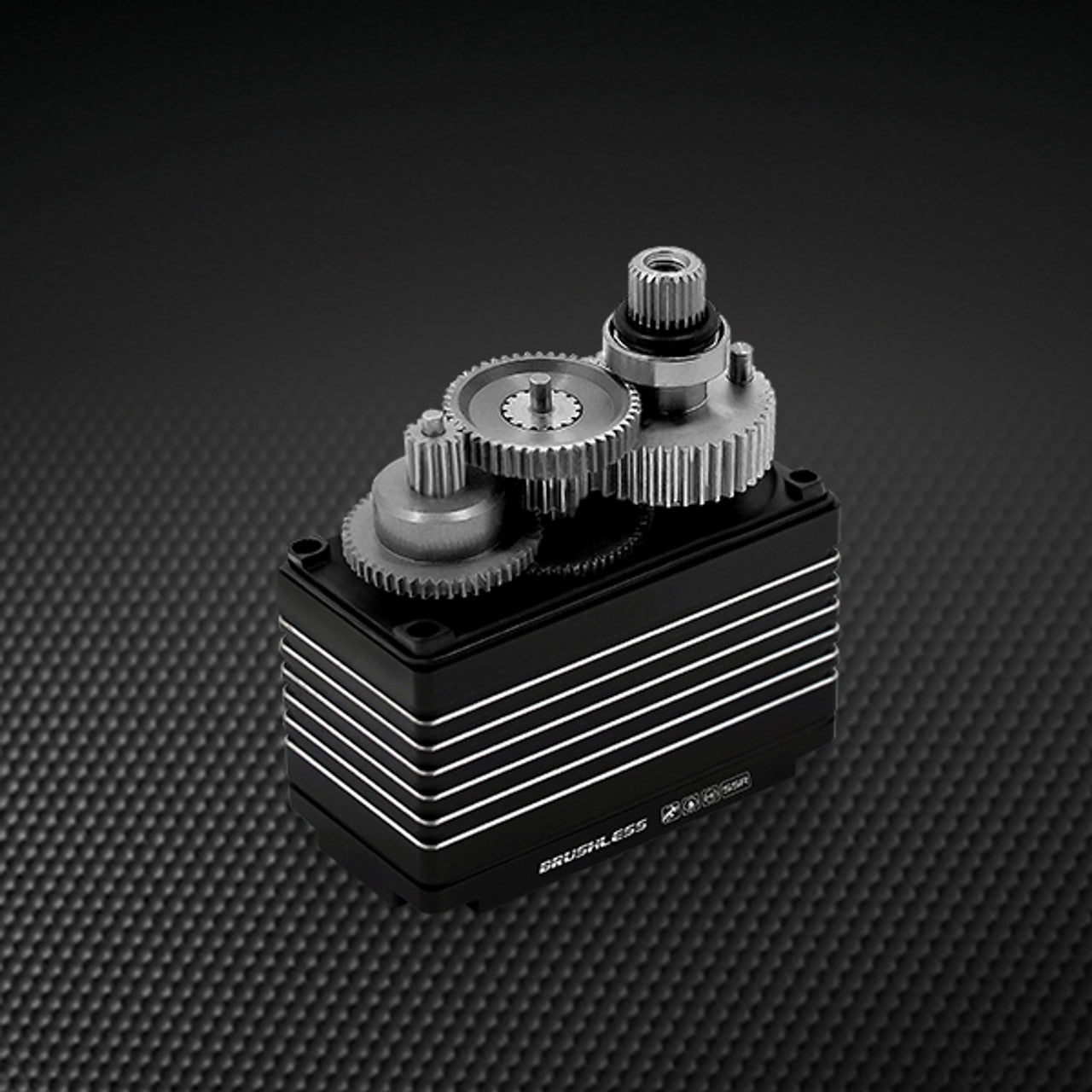

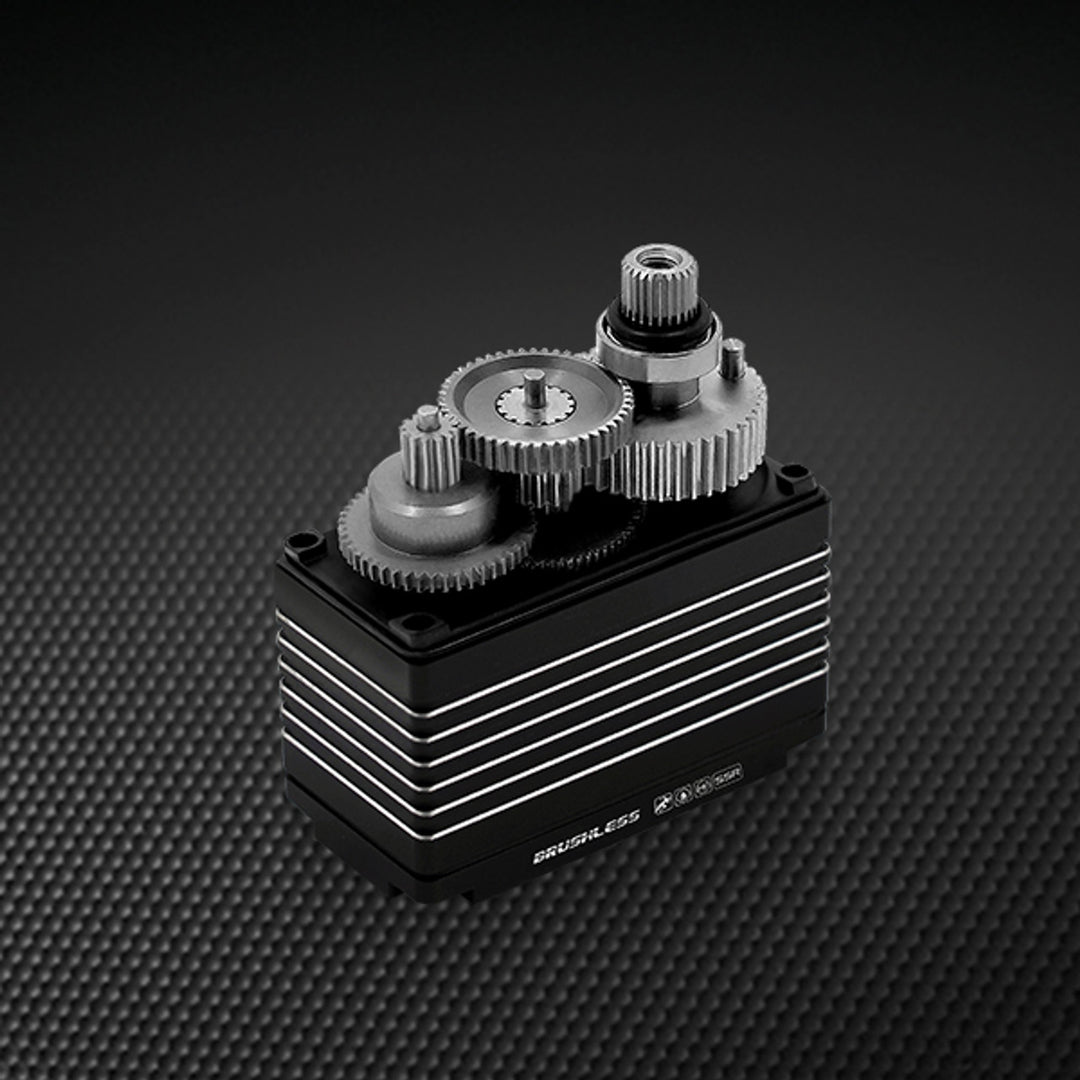

Servos feature all-aluminium housings in a 2-tone anodising that is available with silver, red or gold-colour details while the geartrains are made up using high-quality aluminium and steel gears. Japanese Noble potentiometers ensure highest possible precision and an updated PCB supports SSR and SUR modes. The line includes the S15 low-profile and S25 and S35 standard size servos all of which are usable with 6V to 8.4V input.

SPECIFICATIONS:
Torque(6.0V) 26.0 kg-cm (361.1 oz/in)
Torque(7.4V) 30.0 kg-cm (416.6 oz/in)
Torque(8.4V) 35.0 kg-cm (486.1 oz/in)
Speed 0.095 sec (6.0V) │ 0.075 sec (7.4V) │ 0.070 sec (8.4V)
Operating Voltage 6.0 ~ 8.4 DC Volts
Weight 75.0 g (2.65 oz)
Bearing Type Ball Bearing x 2
Motor Type Brushless Motor
Gear Type Titanium & Steel
Operating Temperature -20℃~60℃
Working frequence 1520μs / 333hz
Size 40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
