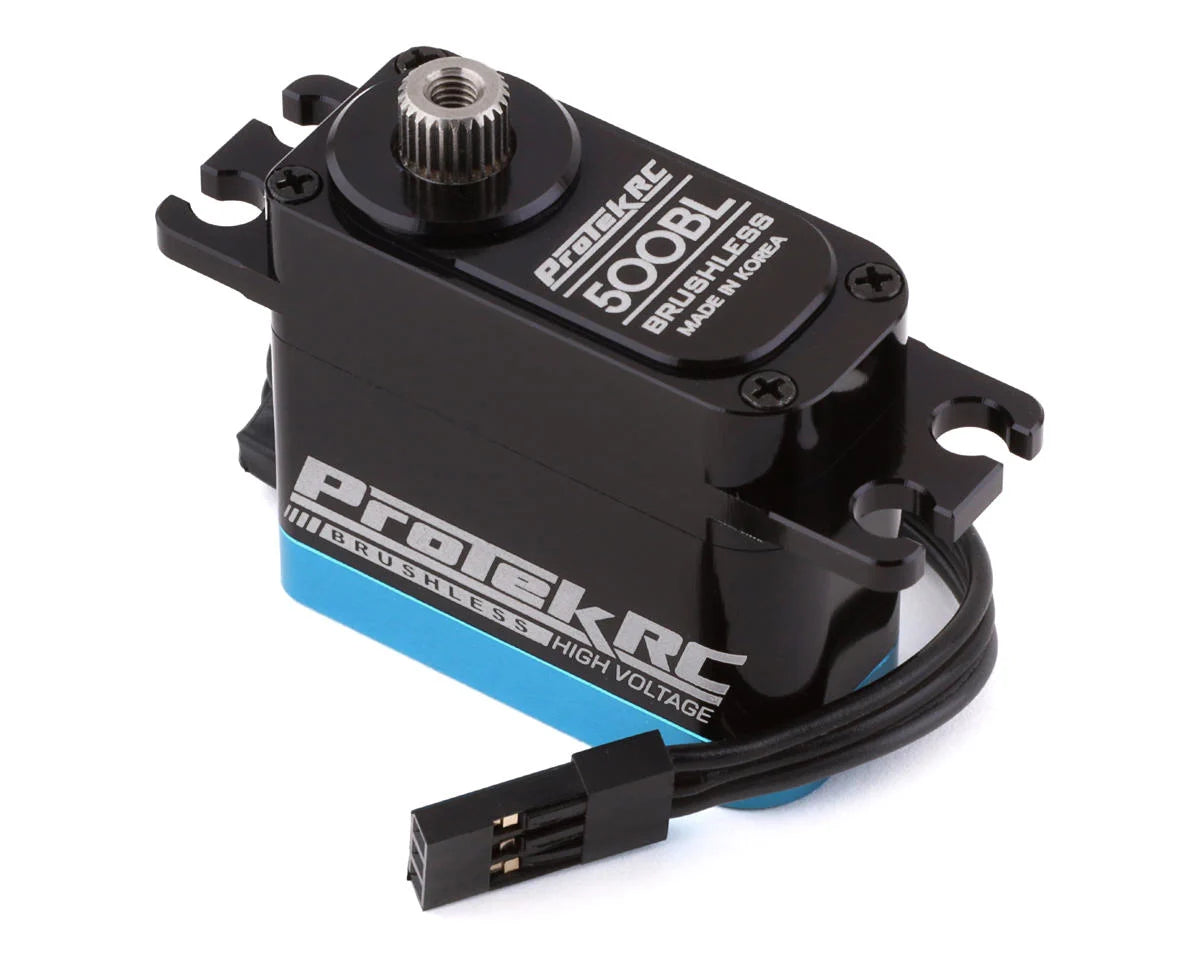

ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case)
ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case) is backordered and will ship as soon as it is back in stock.
Pickup available at ICRC Complex
Usually ready in 24 hours
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
ProTek RC 500BL "Black Label" 1/12 High Torque Brushless ...
ProTek RC 500BL "Black Label" 1/12 High Torque Brushless Mini Servo (High Voltage/Metal Case) is backordered and will ship as soon as it is back in stock.
Description
Description
- Lifetime Gear Warranty Backed by Amain Hobbies
- Ideal for any 1/12 & 1/10 Pan Cars and Pro Class Drag Racing applications
- Full aluminum black anodized case
- High voltage circuitry
- 0.08 transit speed, and 161 oz-in of torque @ 6.0V
- 0.06 transit speed, and 186 oz-in of torque @ 7.4V
- Full metal gears
- Brushless motor
| Servo Model |
500BL |
| Recommended Application | 1/12 & 1/10 Pan Car or Pro Class Drag Racing |
| Operating Voltage | 4.8V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
|
Operating Speed @ 7.4V |
0.06/60° sec |
| Dynamic Torque @ 6.0V |
161 oz-in (11.59 kg-cm) |
|
Dynamic Torque @ 7.4V |
186 oz-in (13.39 kg-cm) |
| Motor Type |
Brushless Digital |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 42g |
| Pulse/Frequency |
1520Us / 333hz |
| Dimensions | 34x30.80x15.50mm |
| Length (Bottom to Mount) |
21.30mm |
