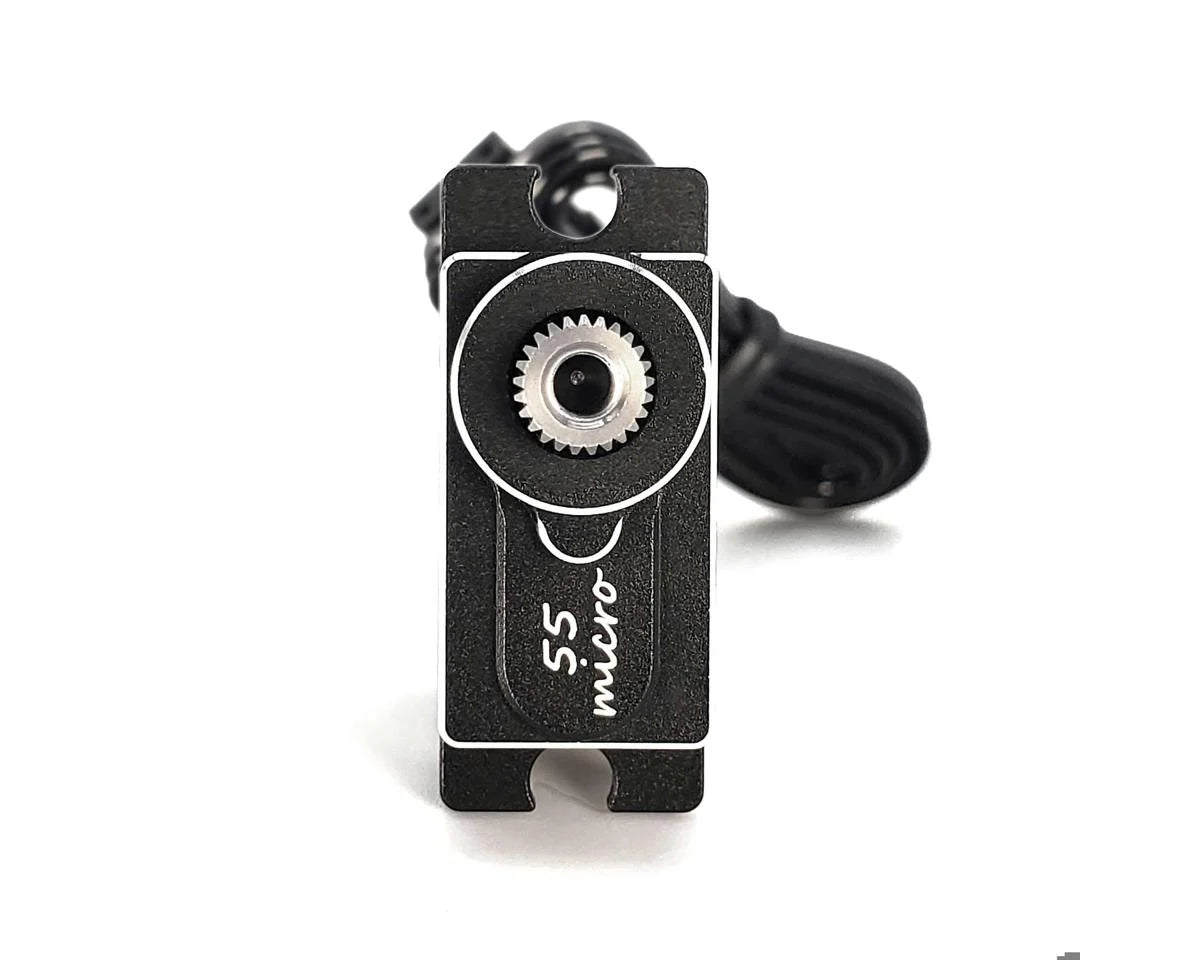

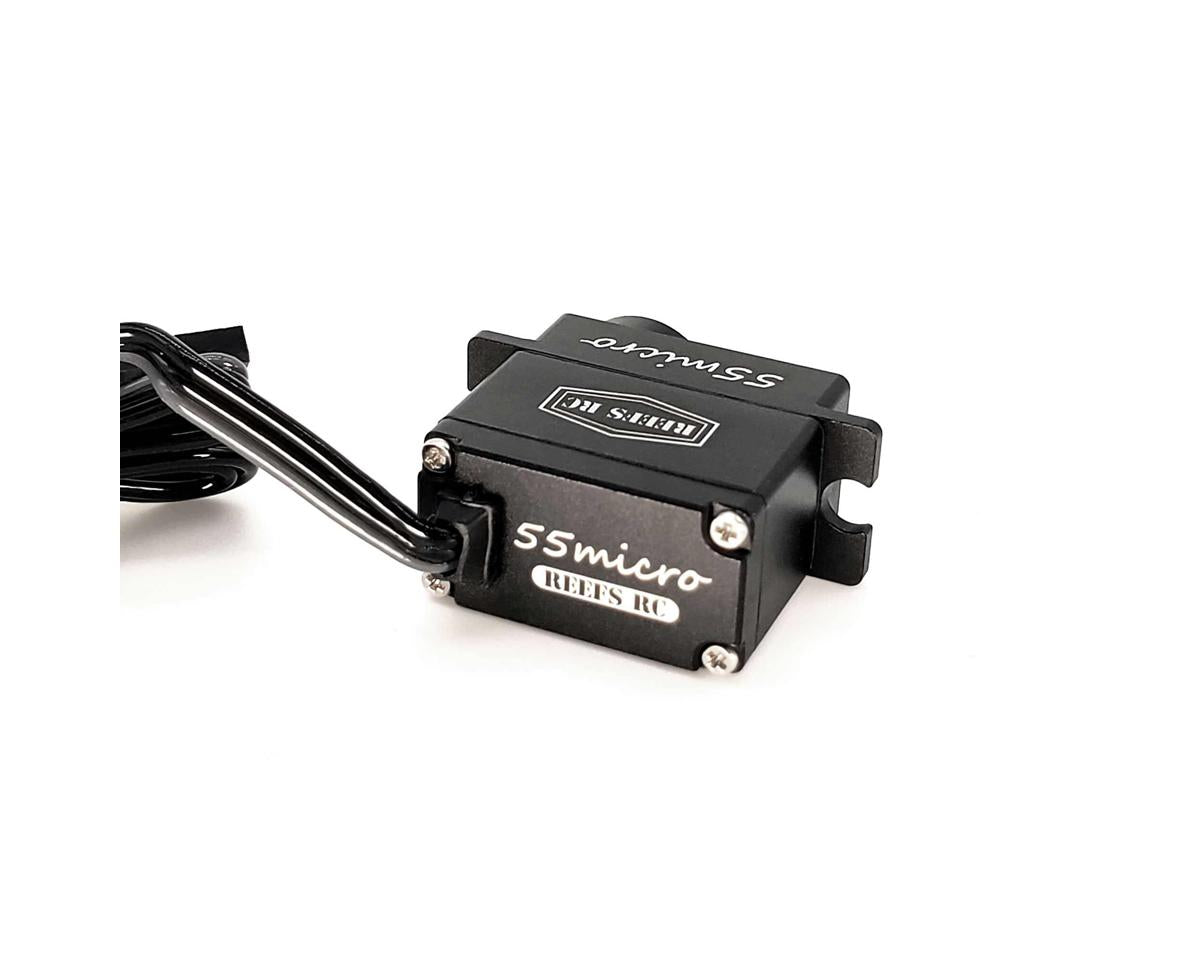

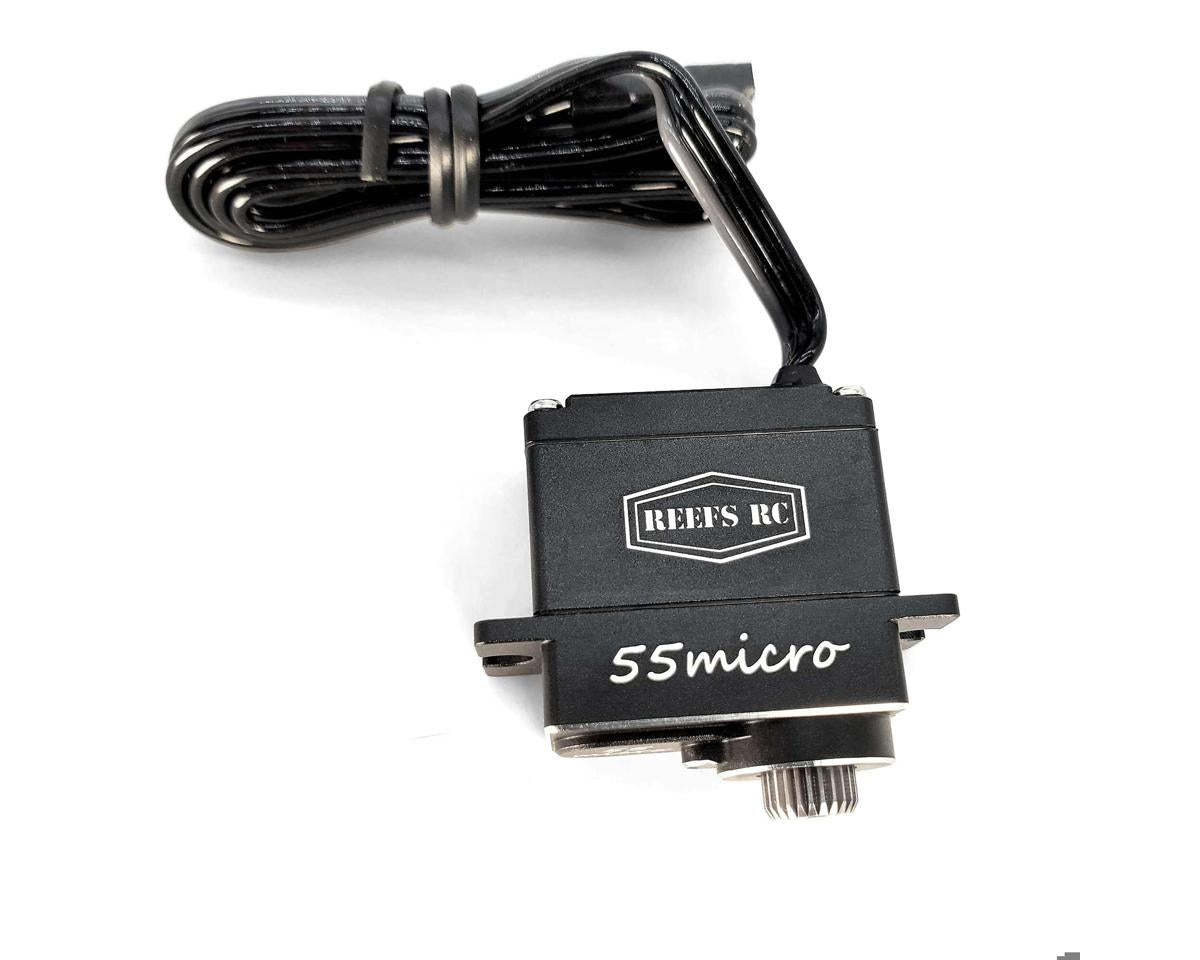

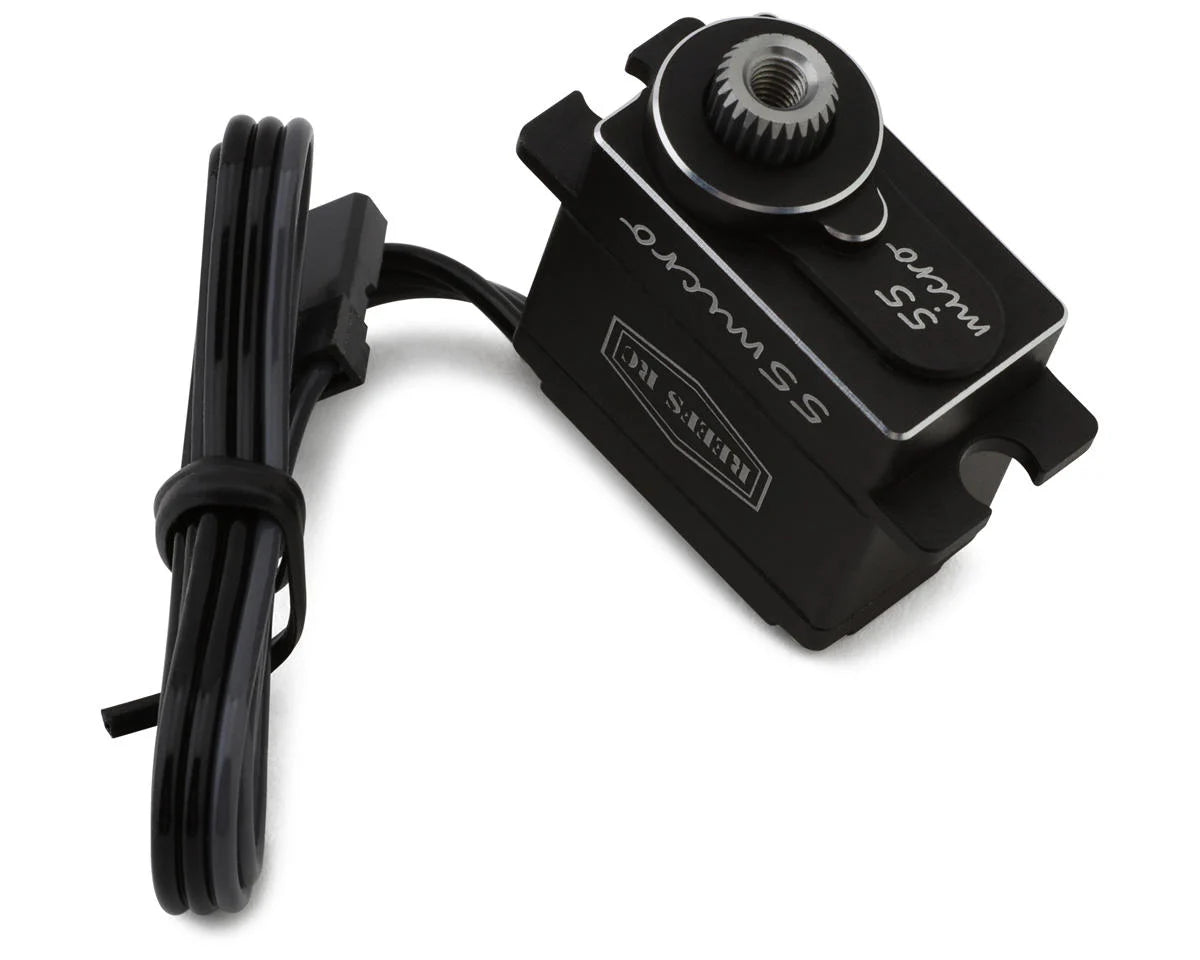

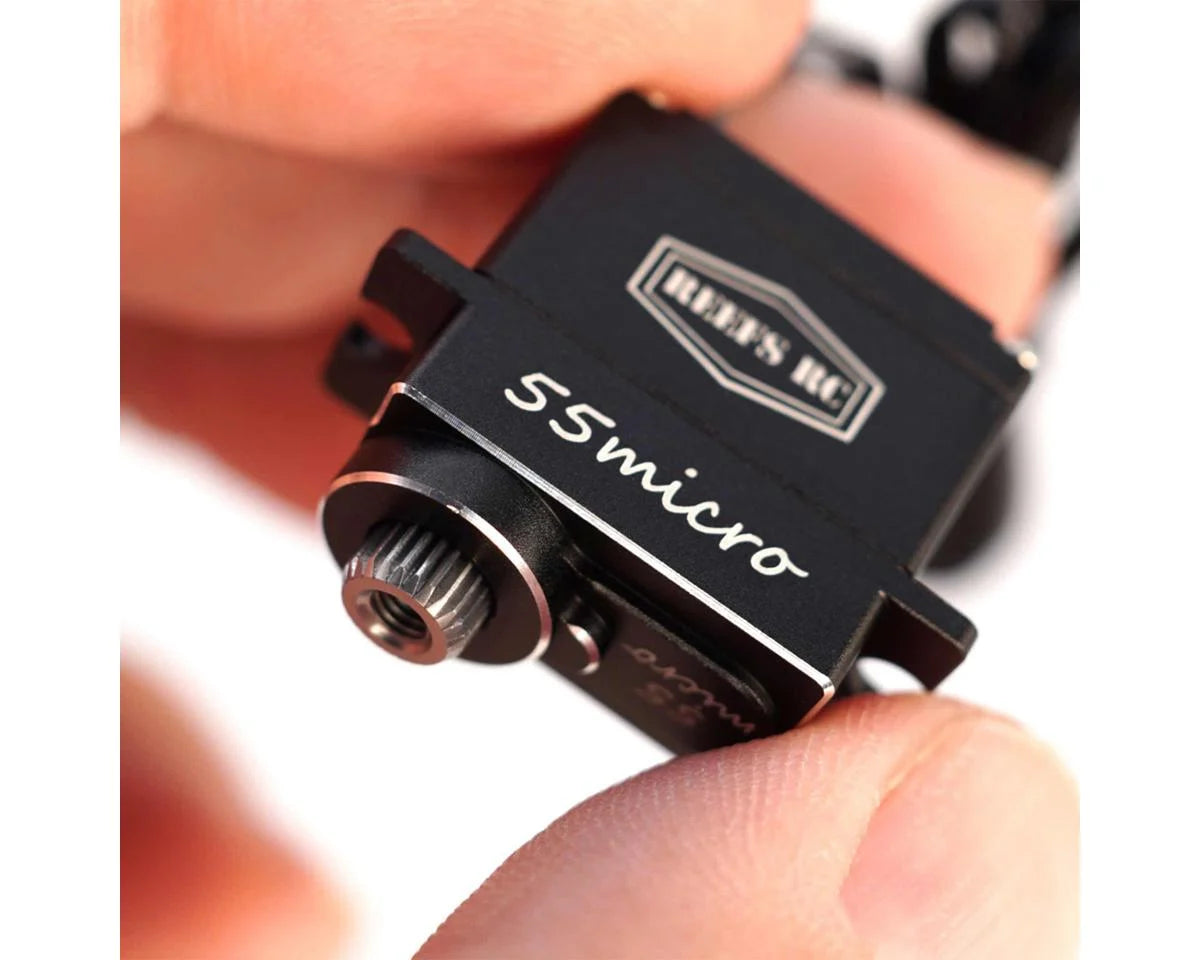

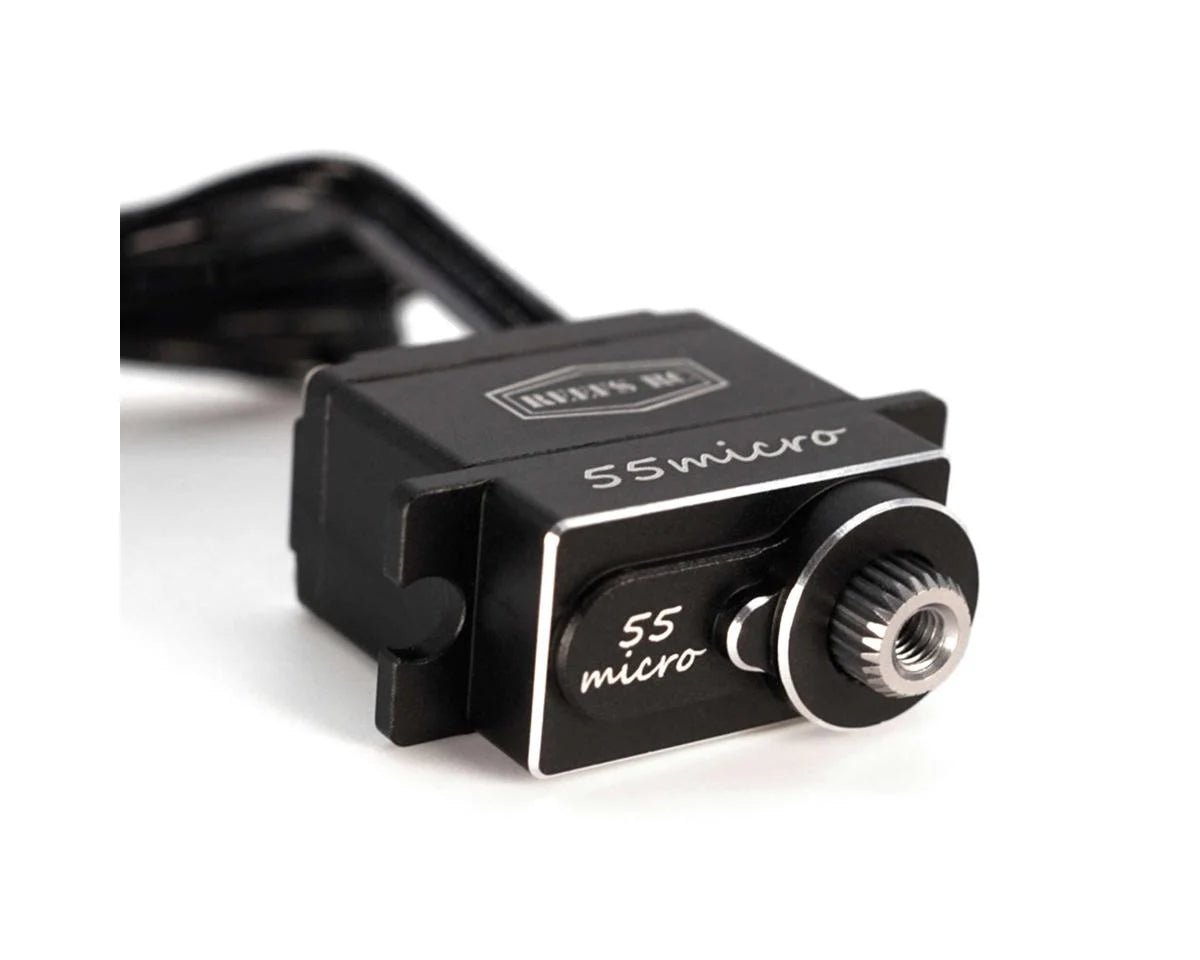

Reefs RC 55Micro Waterproof Metal Gear Digital Micro Servo (HV) For Traxxas (TRX-4/TRX-4M)

Servo Overview:

This is the 55Micro Waterproof Metal Gear Digital High Voltage Micro Servo. Designed specially to be a direct drop-in fit for the Traxxas TRX-4 with shifting servos and TRX-4M platforms, this small but mighty servo is high voltage capable with no need for BEC or to be bypassed! Additionally, the inclusion of the robust steel gears and the all CNC-machined aluminum case provide unparalleled durability and heat dissipation to ensure reliability under harsh conditions!

NOTE: Not recommended for Heavy modified TRX-4M.

Features:

• The ultimate upgrade for TRX-4 and TR-6 with shifting servos
• A great option for stock lightweight TRX-4M
• High voltage capable
• Waterproof design
• Durable all steel gears
• Fully Programmable with Reefs USB Link adaptor (SEHREEFS64 - Sold Separately)
• CNC-machined aluminum case

Specifications:

• Speed:
• @6.0V: 0.11sec/60°
• @7.4V: 0.09sec/60°
• @8.4V: 0.08sec/60°
• Torque:
• @6.0V: 41oz-in (2.95kg-cm)
• @7.4V: 48oz-in (3.45kg-cm)
• @8.4V: 55oz-in (3.96kg-cm)
• Motor: Digital Coreless
• Operating Voltage: 4.8-8.4V

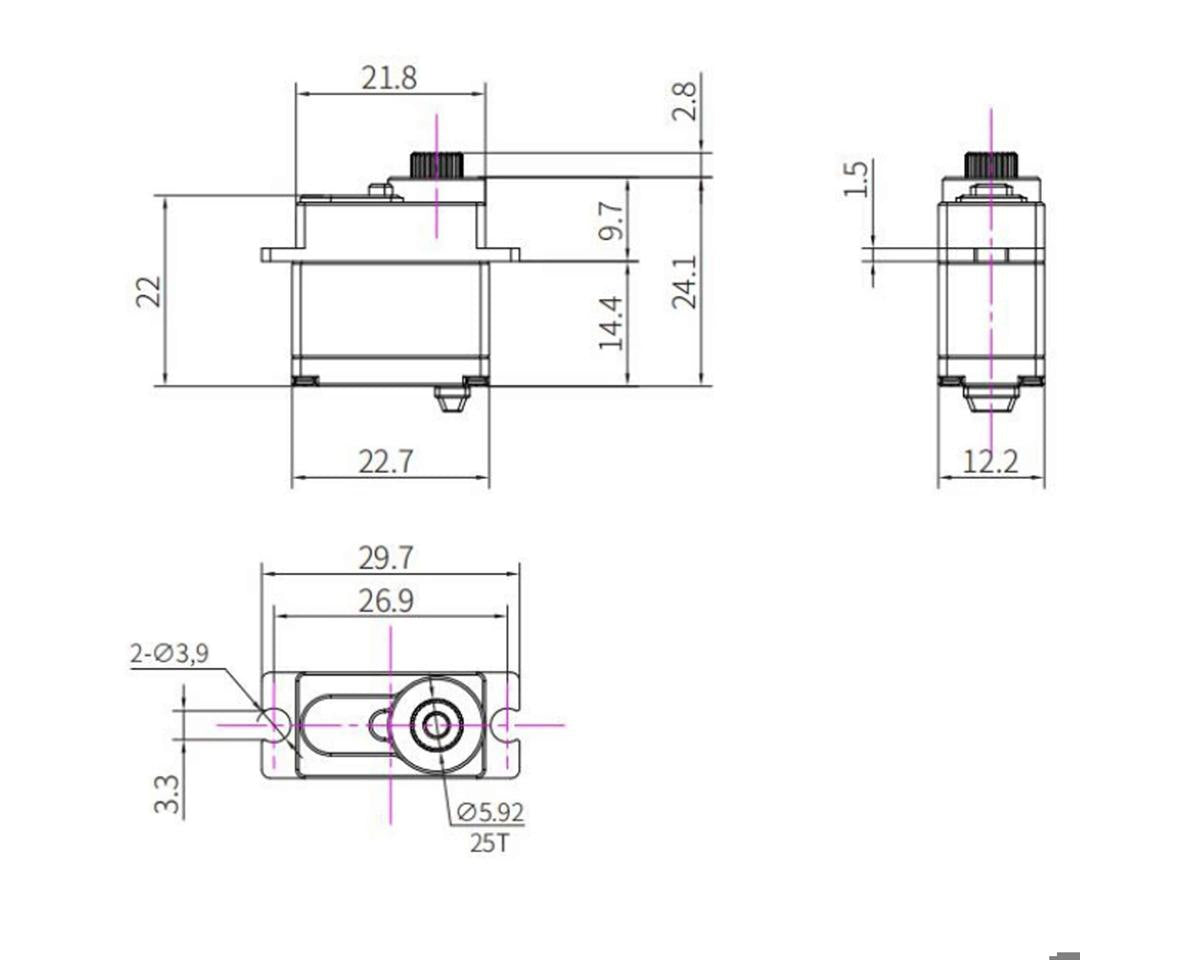

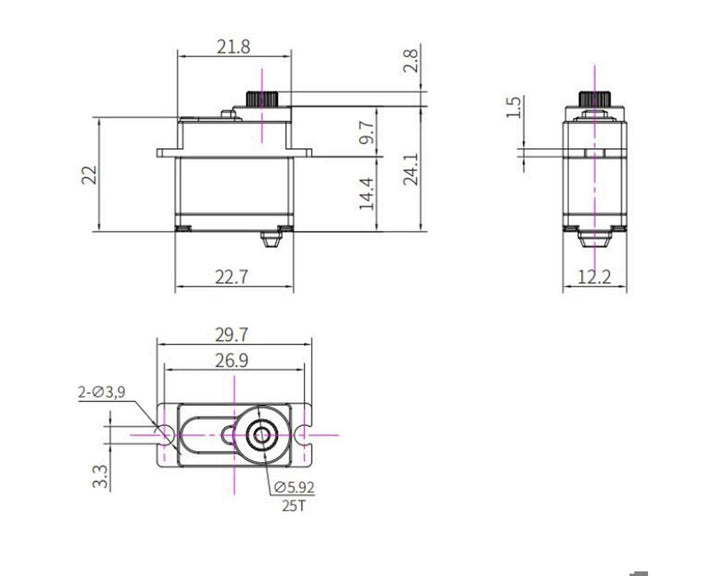

• Dimensions(LxWxH): 0.90x0.50x0.86in (22.9x12.8x22mm)
• Weight: 0.67oz (19g)
• Operating Spline: 25T

Includes:

• (1) 55Micro Waterproof Metal Gear Digital Micro Servo
• Assorted Servo Horns and Mounting Hardware
