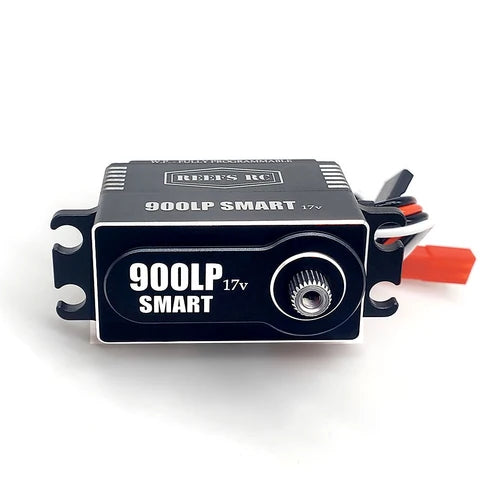

Reefs RC 900LP SMART 17V Brushless Direct Power Servo
Reefs RC 900LP SMART 17V Brushless Direct Power Servo is backordered and will ship as soon as it is back in stock.
Description
Description
WARNING!!: Does not work with Rhino ESC Systems! We recommend Holmes or Vt3k ESCs.
Recommend "true"+1200mah +100C battery or more, with an external Zener Diode (included).
The 900LP SMART brushless servo really has it all! Low-Profile for a smaller footprint and lighter weight, a huge amount of power, capable of up to 17V, awesome speeds all while boasting SMART Programming!
Ready to utilize for your next setup!
This thing is insane!
NOTE: NOT RECOMMENDED TO USE WITH RHINO ELECTRONICS

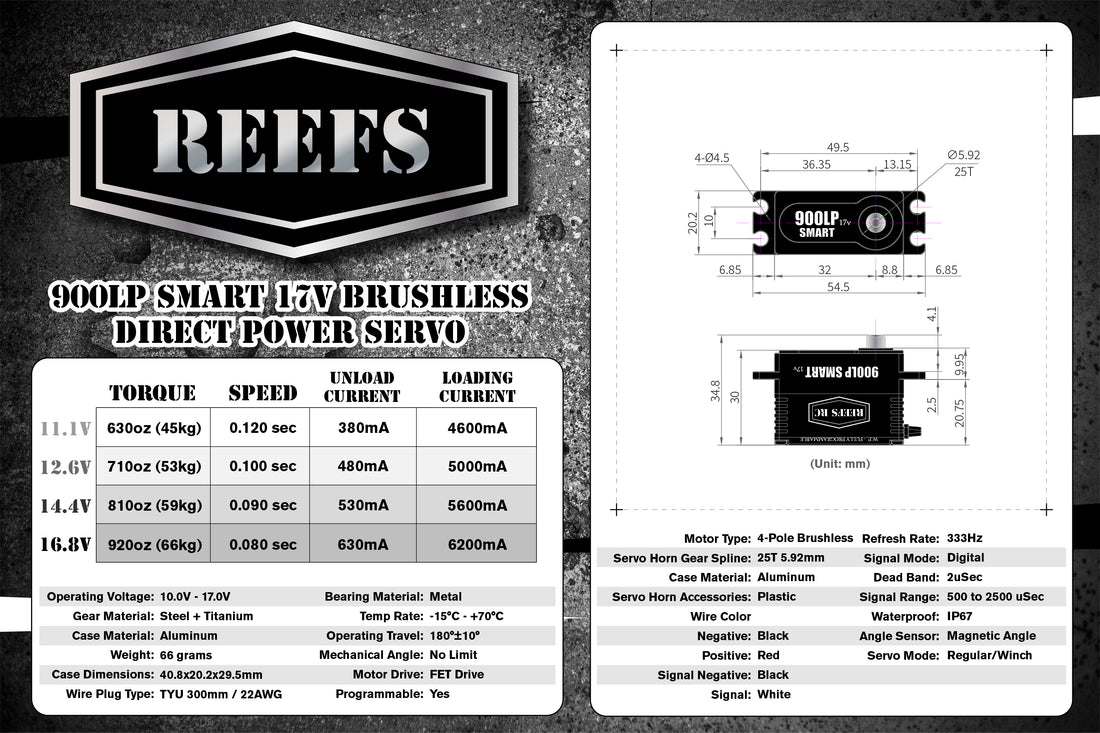

SPECIFICATIONS:
- High Torque High Speed Brushless SERVO or WINCH
- SMART - Comes as SERVO out of the Box. Easily switch to the preprogrammed WINCH Controller mode with the REEFS LINK*
- IP67 Rated WATERPROOF: 7 Point Seals
- Military Grade Construction
- Internal Steel Gears / All CNC Aluminum Casing
- 4-Pole Brushless Motor
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Bearing Type: 2 Ball Bearings / Weight: 2.3oz / 66g
- Voltage: 10V-17V
- Torque: 710oz (53kg)@12.6v / 810oz (59kg)@14.4v / 920oz (66kg)@16.8v
- Speed: .10sec @12.6v / .09sec @14.4v / .08sec @16.8v
- Dimension: 1.6 x .79 x 1.16 (LWH) / 40.8mm x 20.2mm x 29.5mm
- Spline: 25T
- Dead Band Width: 2μs
- FULLY PROGRAMMABLE with BUILT IN PREPROGRAMMED WINCH CONTROLLER (the USB Link is required to switch servo to winch mode)
Unload Current:
320mA@10.0V
380mA@11.1V
480mA@12.6V
530mA@14.4V
630mA@16.8V
Load Current:
4300mA@10.0V
4800mA@11.1V
5800mA@12.6V
6500mA@14.4V
7500mA@16.8V
