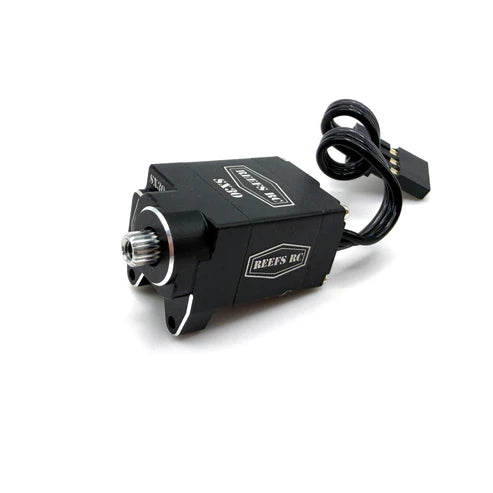

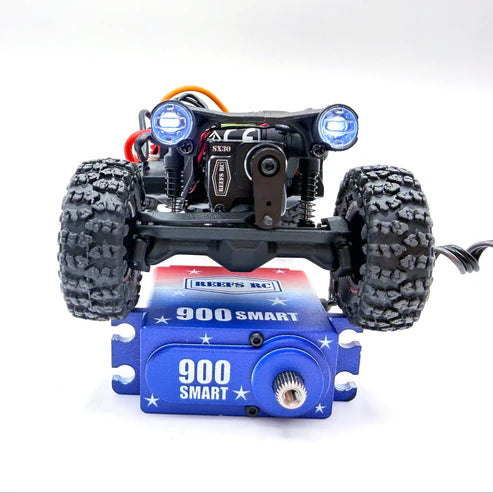

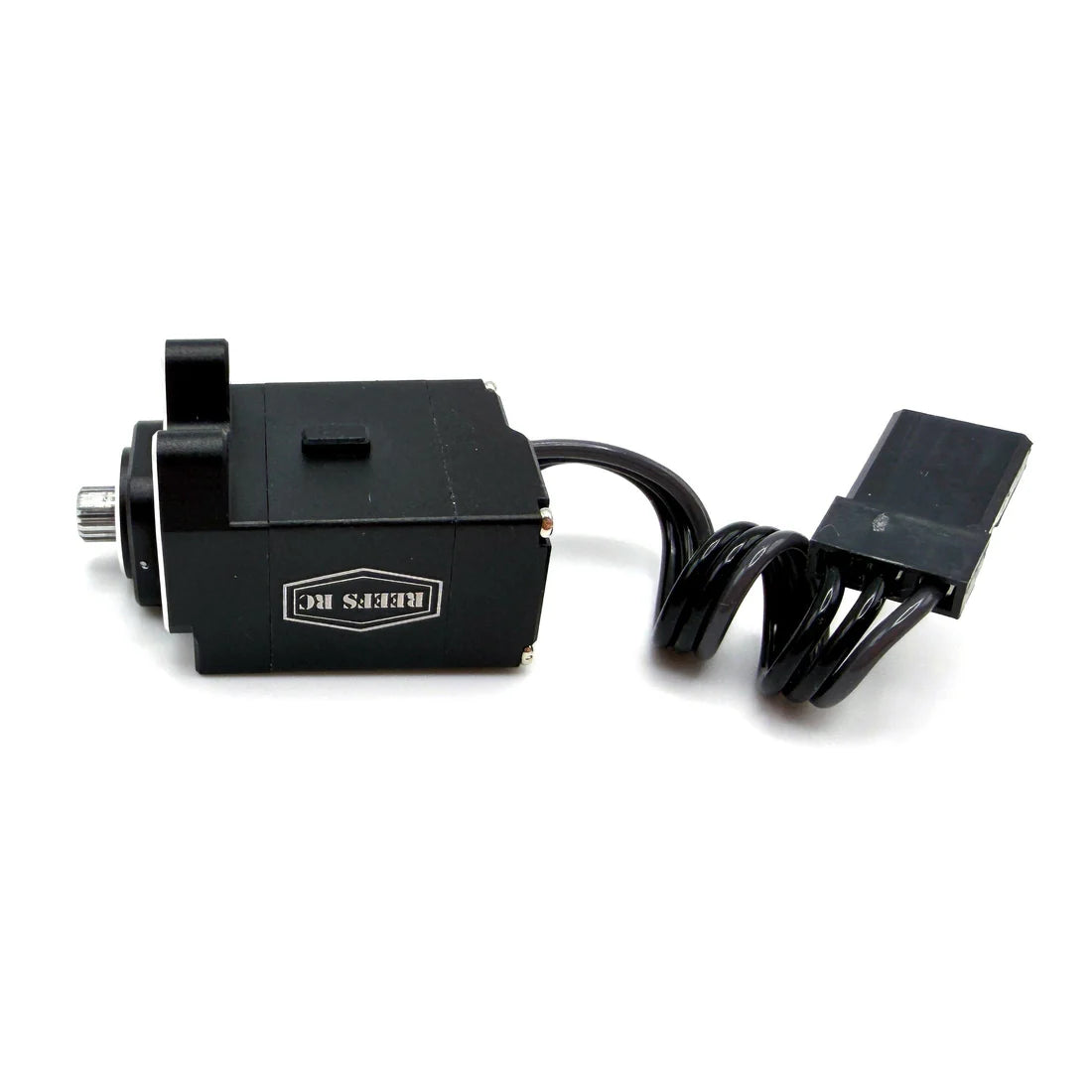

REEFS is proud to introduce our high-torque metal gear servo designed specifically for the Axial SCX30. Housed in a machined aluminum case, this servo delivers an impressive 35 oz-in of torque at 6V—five times the torque of the stock servo.
Built with all-metal gears and twice the weight of the stock servo, it adds valuable low front-end weight, helping improve weight bias and stability on these lightweight rigs.

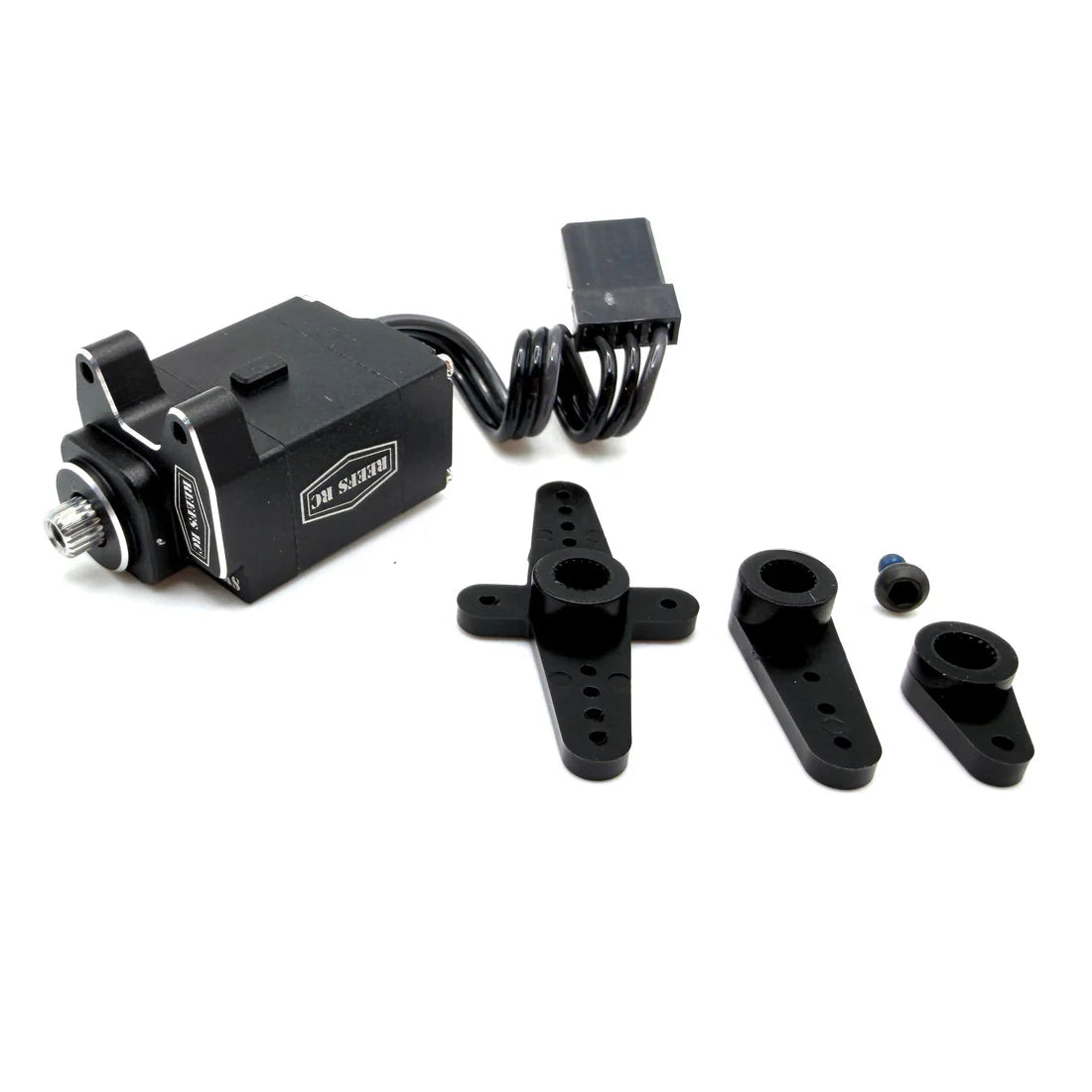

Each servo includes three different lengths of black nylon servo arms. For those looking to upgrade.
Installation is quick and easy—only seven screws need to be removed and replaced, so you can be up and running in minutes with increased torque and added weight to improve your SCX30’s performance.
High Torque
Military Grade Construction
Pulse Width Modulation Control
SMART Chip Technology
Programable with REEFS Optional "LINK V2" (Optional)
(Optional)
Water Resistant
Voltage 4.8v - 8.4v
Internal: Metal Gears
CNC Aluminum Casing
Sealed Bearing
Temp Rate: -15C°~ +70C
Operating Travel: 180°±10°
Mechanical Angle: No Limit
Motor Drive: IC Drive
Weight: .29oz / 8.2g
24.4 x 15.2 x 11.1mm (case only) (LWH)
Torque: 35oz (2.5kg)@ 6.0v
39oz (2.8kg)@ 7.4v
42oz (3.0kg)@ 8.4v
Speed: .075 sec @ 6.0v
.066 sec @ 7.4v
.06 sec @ 8.4v
Spline: 20Tφ4.0mm
Dead Band Width: 2uSec
BEC Not Required,
Recommended for Max Perf.
UnloadCurrent
120mA@4.8V
150mA@6.0V
200mA@7.4V
230mA@8.4V
LoadingCurrent
800mA@4.8V
1000mA@6.0V
1200mA@7.4V
1400mA@8.4V
REEFS285
