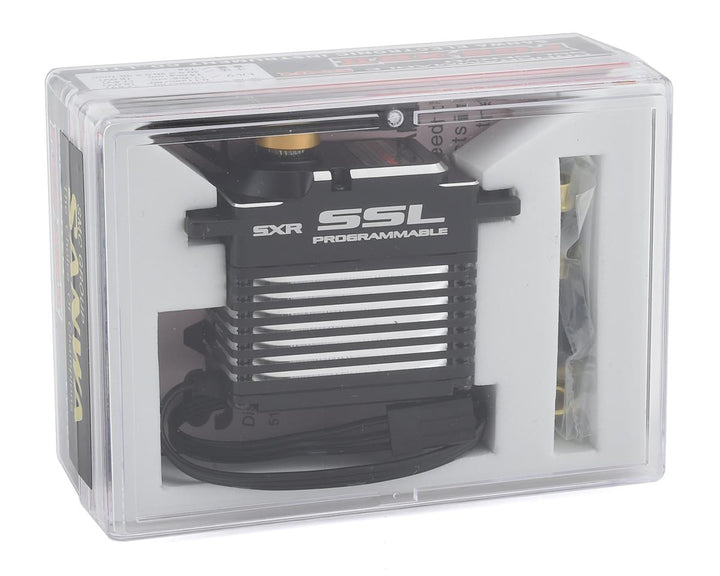

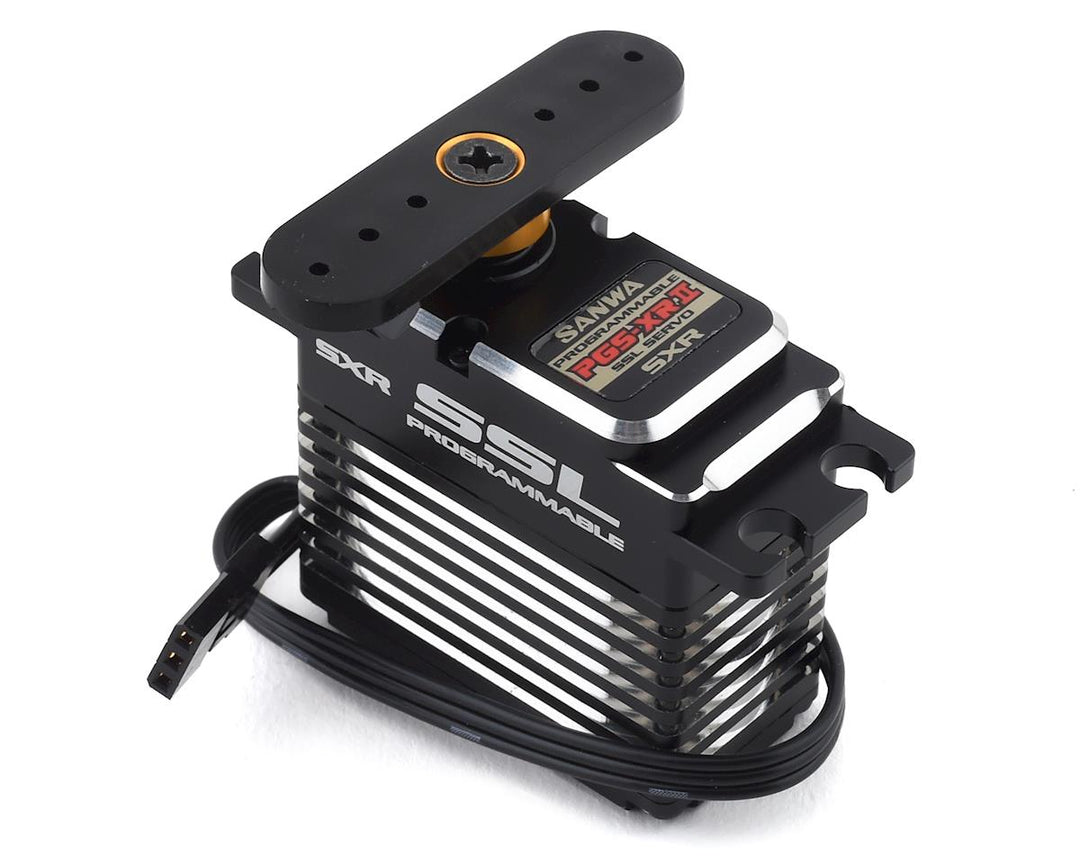

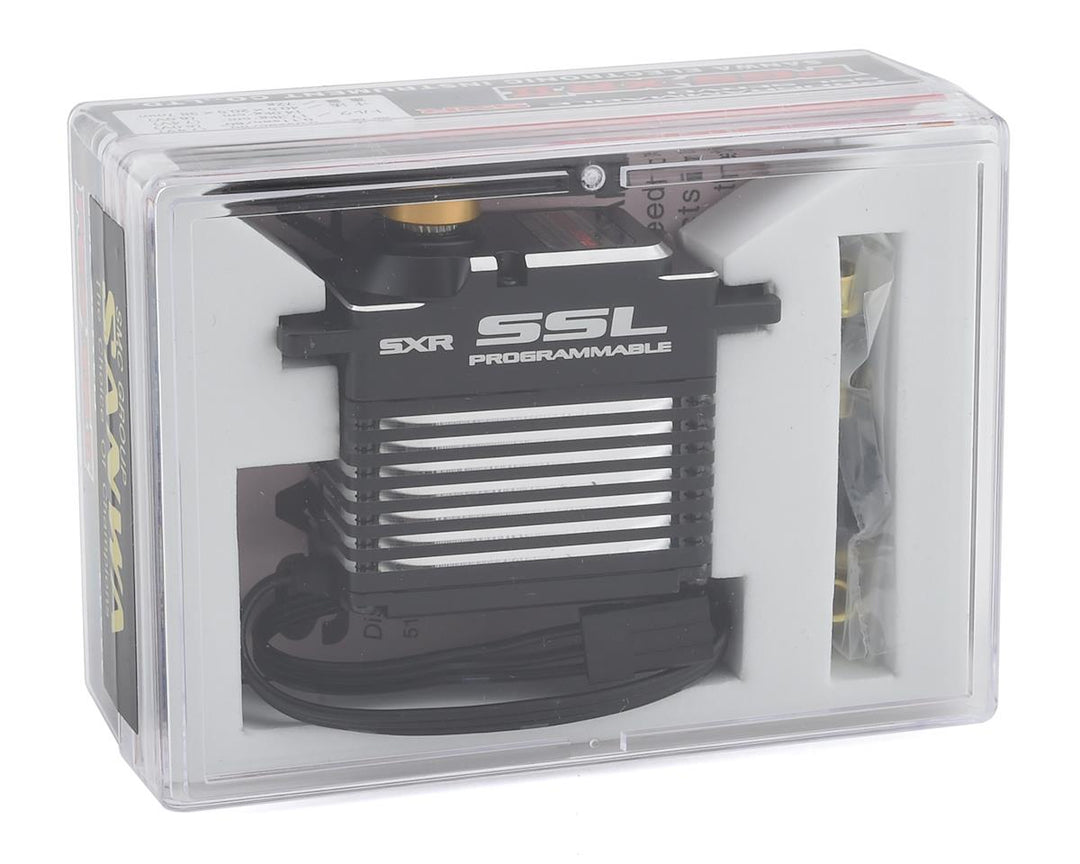

Sanwa/Airtronics PGS-XR II High Speed Brushless Servo (High Voltage)

Features:

• FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
• SSL-COMPATIBLE PROGRAMMABLE SERVO: Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
• PGS SETTING GEAR-COMPATIBLE
• SUPER RESPONSE (SSR) MODE-COMPATIBLE
• HIGH RESPONSE (SHR) MODE-COMPATIBLE
• Li-Po 2 CELL-COMPATIBLE
• HIGH TORQUE TYPE
• BRUSH LESS MOTOR
• FULL ALUMINUM CASE
• FULL METAL GEAR (Strengthening Gears)
• ALUMINUM HEAT SINK
• Black Harness
• Programmable Servo to be compatible with SSL & Telemetry at Launch
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
• Initial Setting on Setting Gear is necessary.

• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• ◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
• ◎MAX-PW (MAX Duty Adjustment)
• ※ Setting Gear is necessary for ◎setting.
• PGS-Servo Explanation

• Speed:
• @7.4V: 0.09 sec/60 (7.4V)
• @6.0V: 0.11 sec/60 (6.0V)
• Torque:
• @7.4V: 240.25 oz-in (17.3 kg-cm)
• @6.0V: 194.42 (14.0 kg-cm)
• Dimensions: 40.5x20.5x38.7mm
• Weight: 72 g
