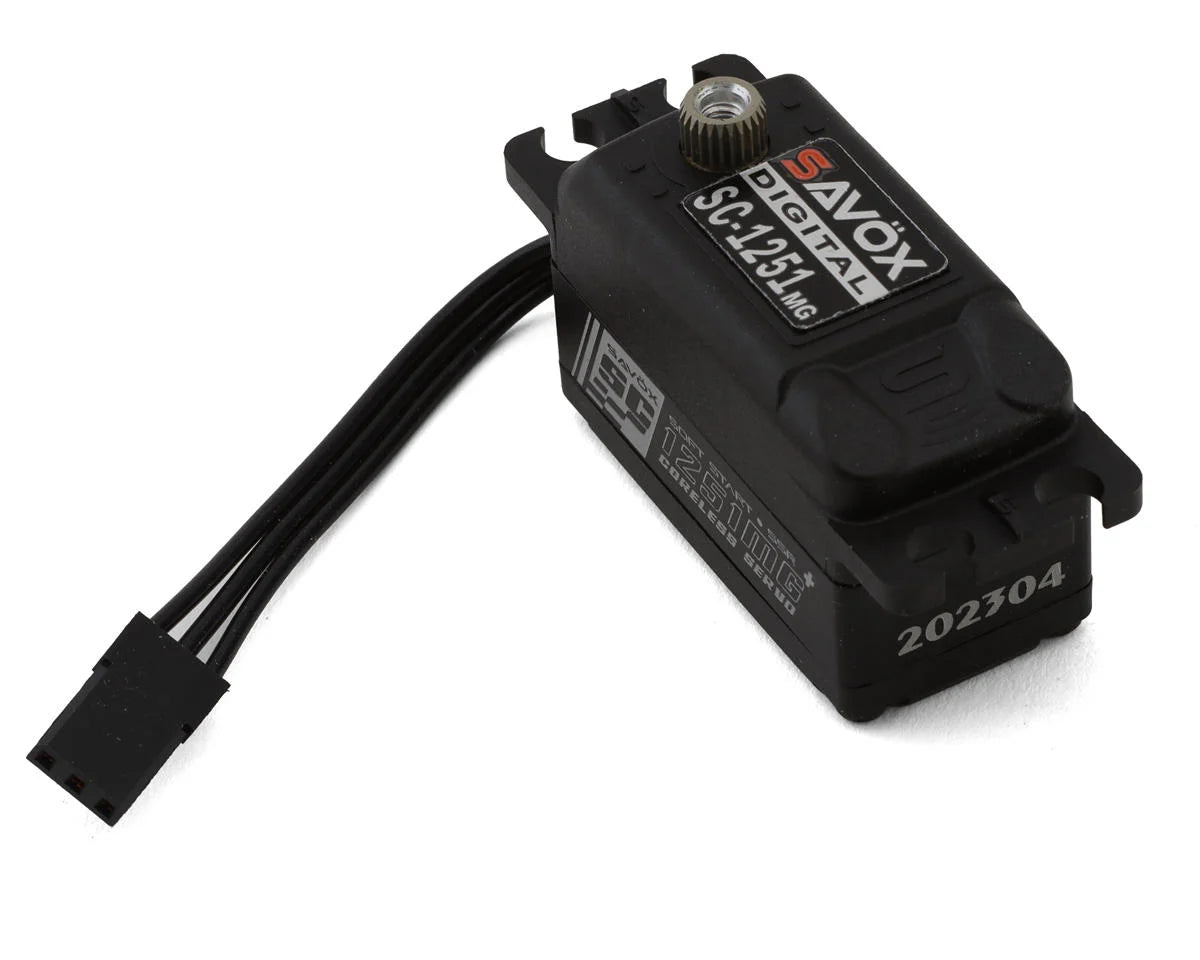

Savox SC-1251MG Black Edition Low Profile High-Speed Digital (HV) Servo w/Soft Start

Servo Overview:

Savox SC-1251MG Black Edition Low Profile High-Speed Digital Servo. Features an all-aluminum case that provides excellent heat dissipation, and a high-efficiency digital coreless motor with all metal gears that ensure supreme durability against the harshest conditions! Designed and specified to suit and feed the demand for a high-speed low-profile steering servo with a smooth feel! Get the Savox SC-1251MG to elevate your steering performance and precision to a higher level!

Features

• Ideal for 1/10 On-Road applications
• Soft Start and Sanwa SSR compatible
• Combines leading-edge technology with super high 12-bit (4096) resolution
• High-efficiency coreless digital motor for smooth operation and efficiency
• Capable of High Voltage (HV) operation
• Aluminum case provides cooler operating temperatures
• All metal gears

Specifications:

• Speed:
• @6.0V: 0.09sec/60°
• Torque:
• @6.0V: 97.2oz-in (9kg-cm)
• Motor:
• Operating Voltage: 6.0V-8.4V
• Operating Temperature: 14°-122°F (-10°-50°C)
• Operating Travel: 90° (1000 - 2000 µ second)
• Maximum Travel: Appx 160° (700 - 2300 µ second)
• Refresh Rate: 240 Hz
• Dimensions: 40.3x20.2x25.4mm
• Weight: 44.5g
• Operating Spline: 25T

Includes:

• (1) SC-1251MG Black Edition Low Profile Coreless Digital Servo

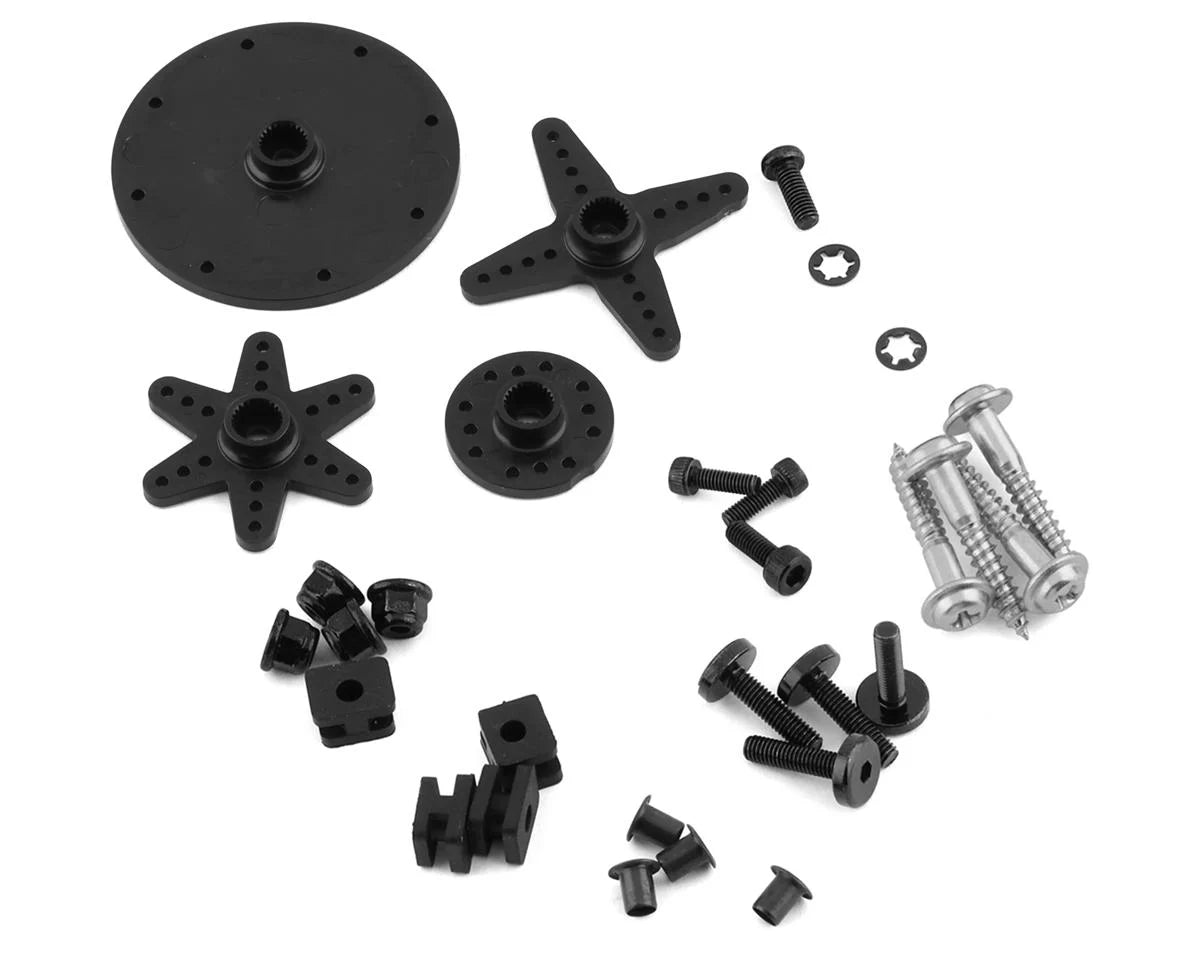

• Composite Horns
• Mounting Hardware
