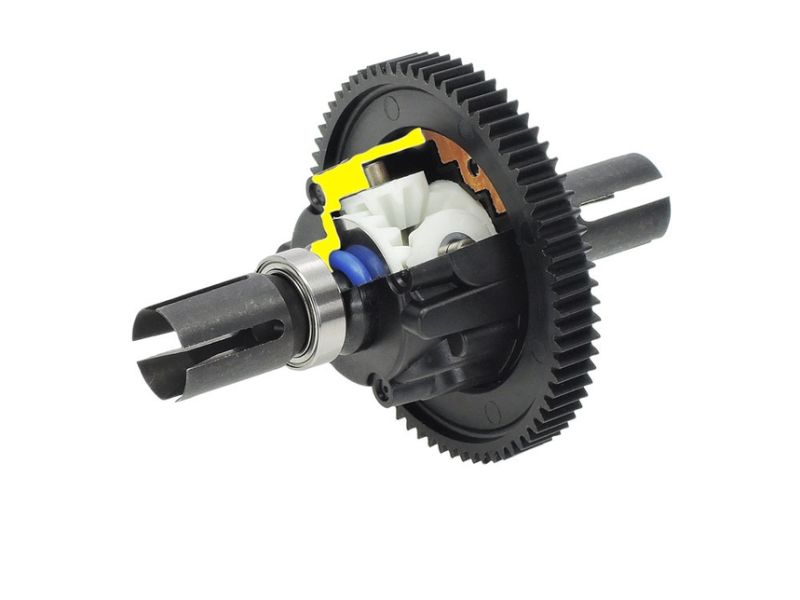

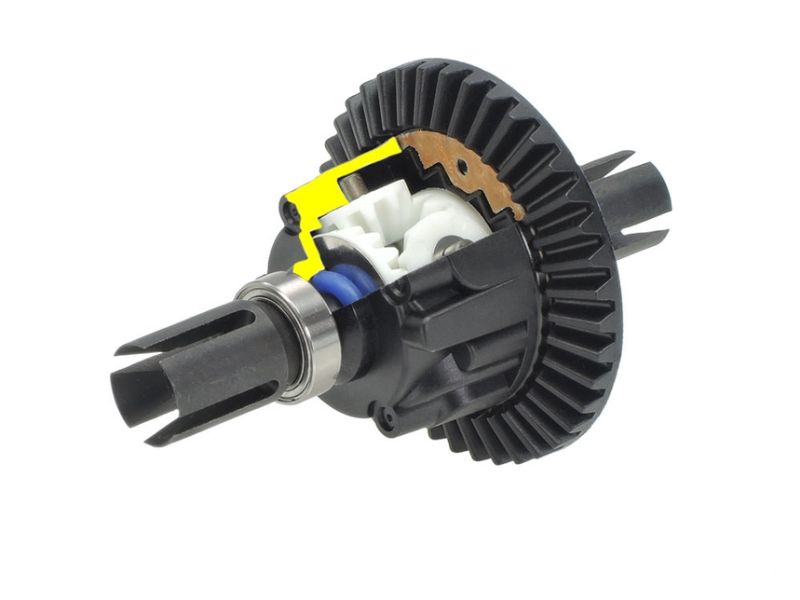

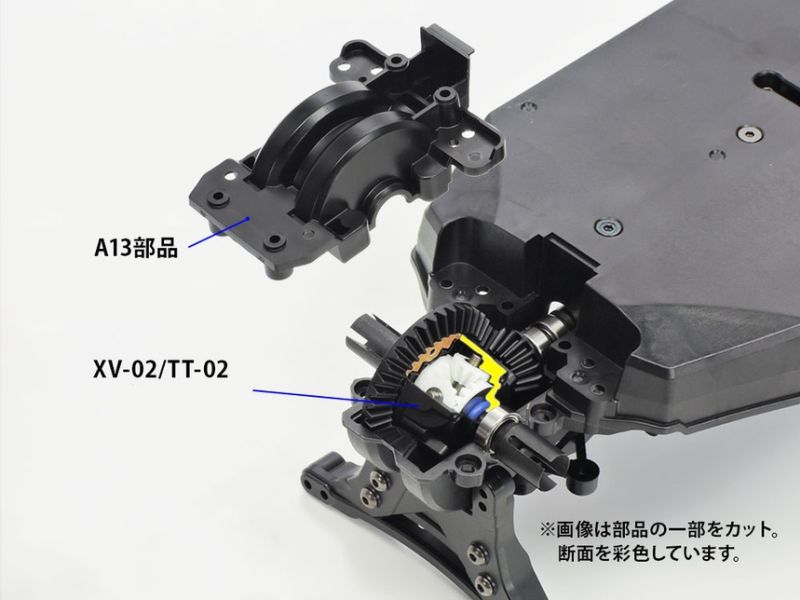

This is a gear differential unit for use on the XV-02 and TT-02 chassis. When using it on the TT-02 chassis, it allows you to tune the differential action, for the front and rear, with the use of different viscosity oils. When using it on the XV-02, you can use it not only for the front and rear diffs, but also as a center oil-filled diff unit, which will give you even more tuning options!
When using as a center oil-filled diff unit, on the XV-02 chassis, make sure to use with Item 22050 (06 Module Spur Gear 70T).

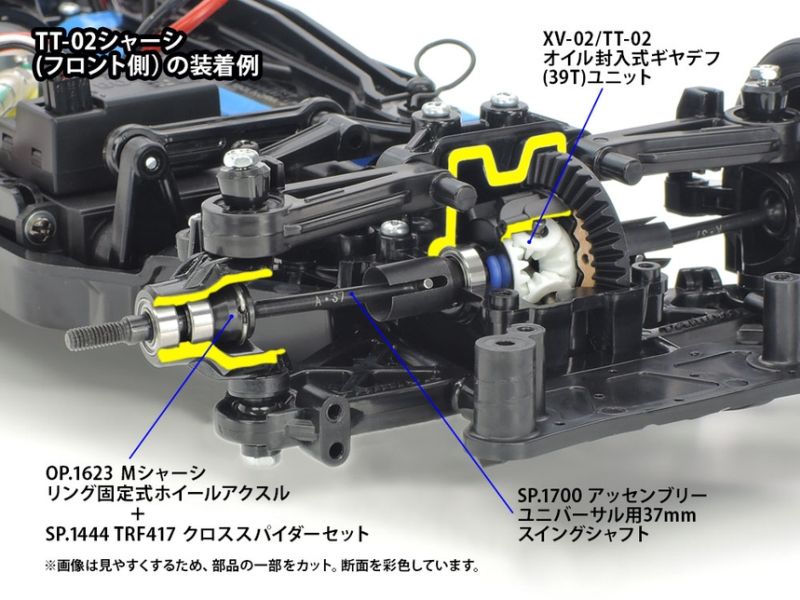

When using on TT-02 Chassis, use items: 54623, 51700, 51444.

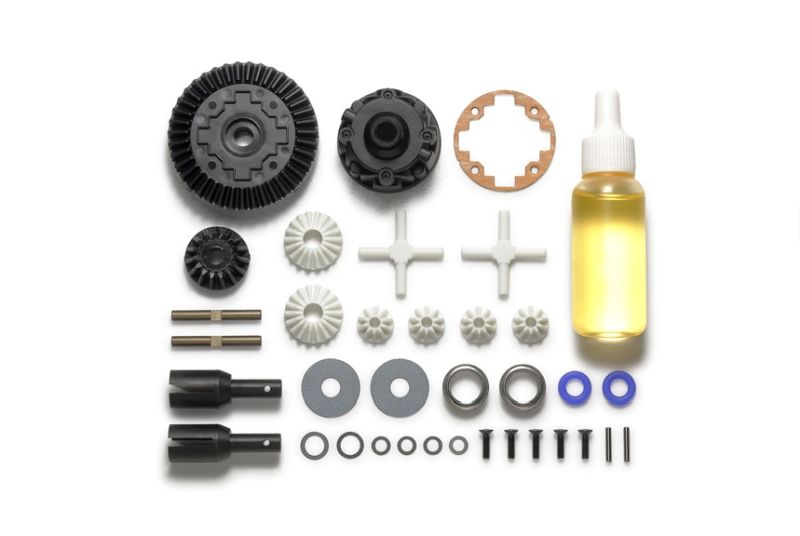

Includes:
- Differential Joints x2
- Gear Differential Ring Gear (39T) x1
- Bevel Pinion Gear (for 39T gear) x1
- Differential Case x1
- Gasket x1
- GV Gears x2
- 2.8x23.4mm Cross Shafts x2
- 2x8mm Countersunk Hex Head Screws x4
- 5mm O-Rings x2
- 5x15.2x0.2mm Shims x2
- 5x7x0.1mm Shims x2
- 3x5x0.1mm Shims x4
- 1280 Ball Bearings x2
- Silicone Oil #3000
