Tamiya TT-02R 4WD Touring Car Chassis Kit

Tamiya TT-02R 4WD Touring Car Chassis Kit

Regular price $152.99 USD
Regular price Sale price $152.99 USD
Sale Sold out

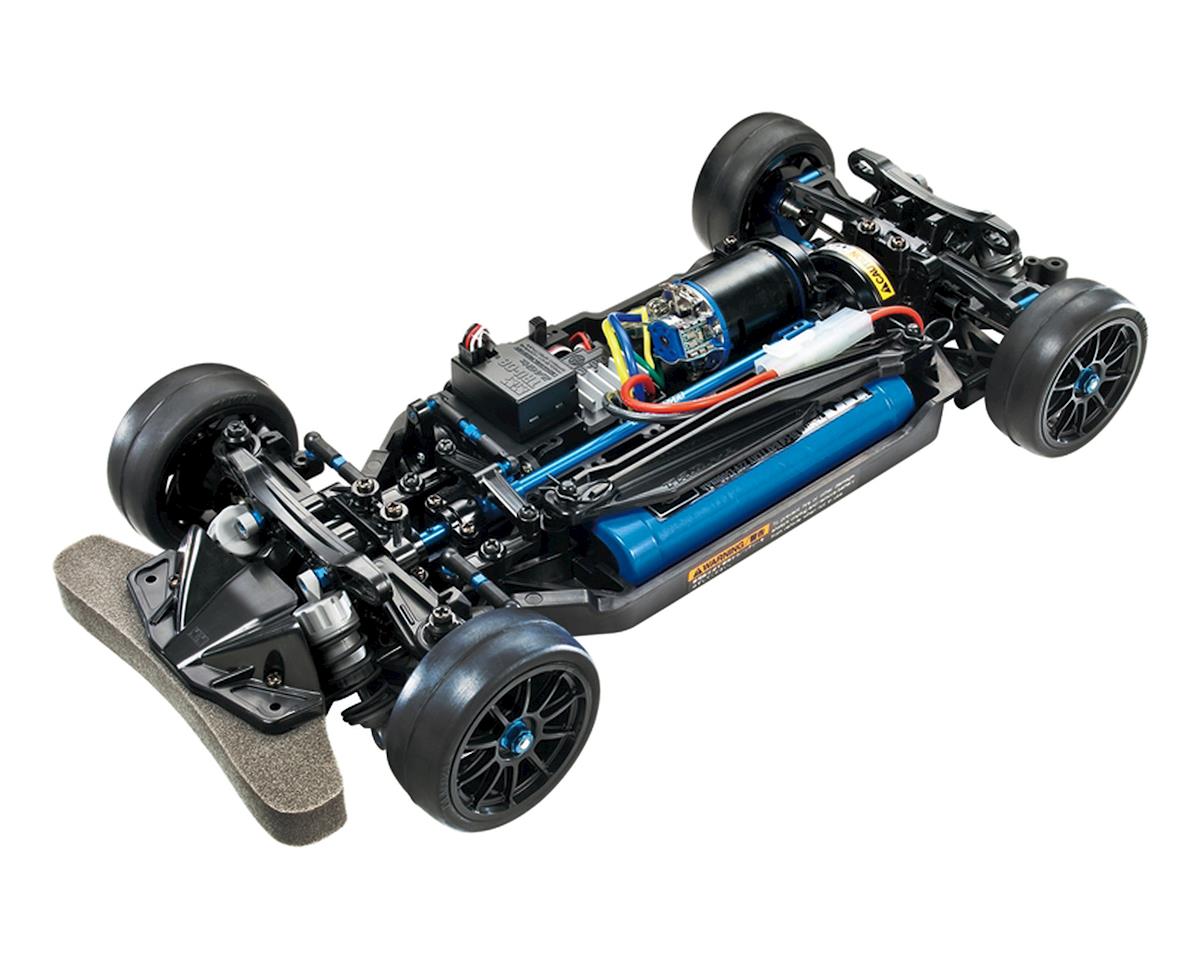

The Tamiya TT-02R 4WD Touring Car Kit is a refined, race-spec version of the TT-02 chassis that features a wide range of option parts and redesigned components to make it ready to race. The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.

NOTE: Finished chassis shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

  • Aluminum uprights (3-degree toe-in)
  • Aluminum motor mount
Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Chassis Material: ABS Plastic
Chassis Type: TT-02R
Construction Type Assembly: Kit
Differential Type: Gear
Drive Type: 4WD
Requires A: Requires 2-channel radio, steering servo, ESC, 7.2-volt battery with charger and tires.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully Independent Double Wishbone
Terrain: Use On-Road

Included Hop-Up-Option parts:
  • TAM53159 4mm Aluminum Flange Lock Nut (Blue)
  • TAM54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
  • TAM54501 TT-02 Aluminum Propeller Shaft
  • TAM53642 5mmAluminum Ball Connector (Blue)
  • TAM54500 TT-02 High-Speed Gear Set (68T)
  • TAM54502 TT-02 Aluminum Propeller Joint
Needed To Complete:
  • 2-Channel Radio and Receiver
  • Steering Servo
  • 1/10 ESC
  • 540 Sized Motor
  • 257mm Wheelbase Body
  • Polycarbonate Paint
  • 7.2-7.4V Battery Pack
  • Compatible Charger
  • Tools
