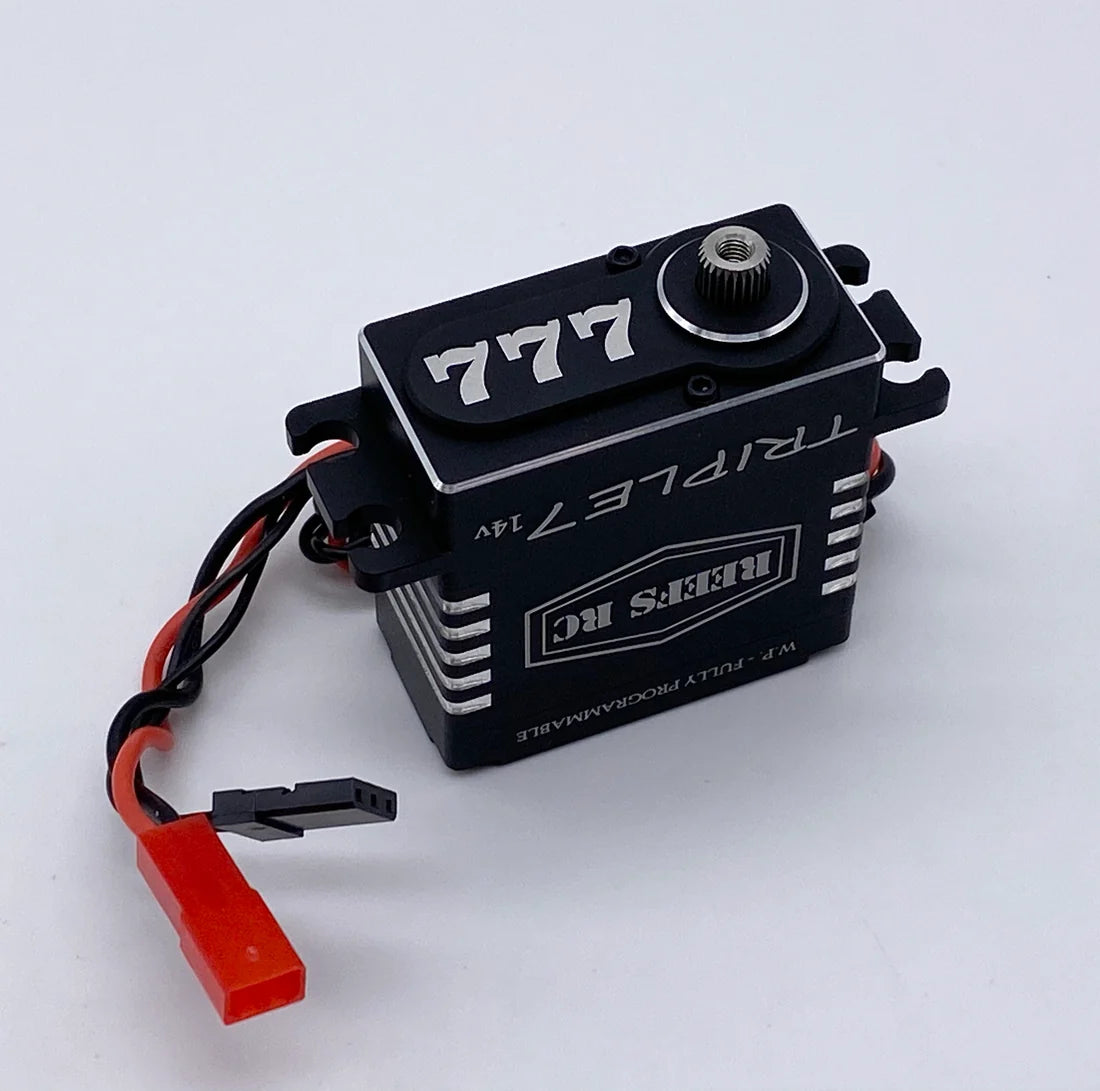

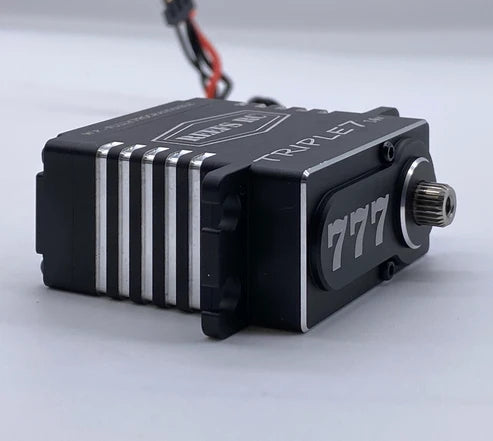

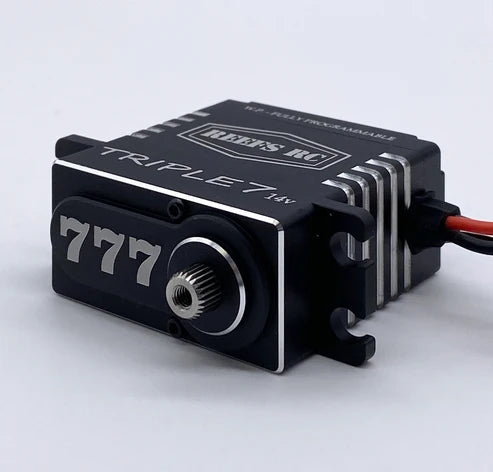

Reefs RC Triple7 Direct Power Brushless Servo (14v)
Reefs RC Triple7 Direct Power Brushless Servo (14v) is backordered and will ship as soon as it is back in stock.
Description
Description
Our first direct power servo, and still one of the best. The Triple7 has both the speed and power to impress, and can be programmed for even more.

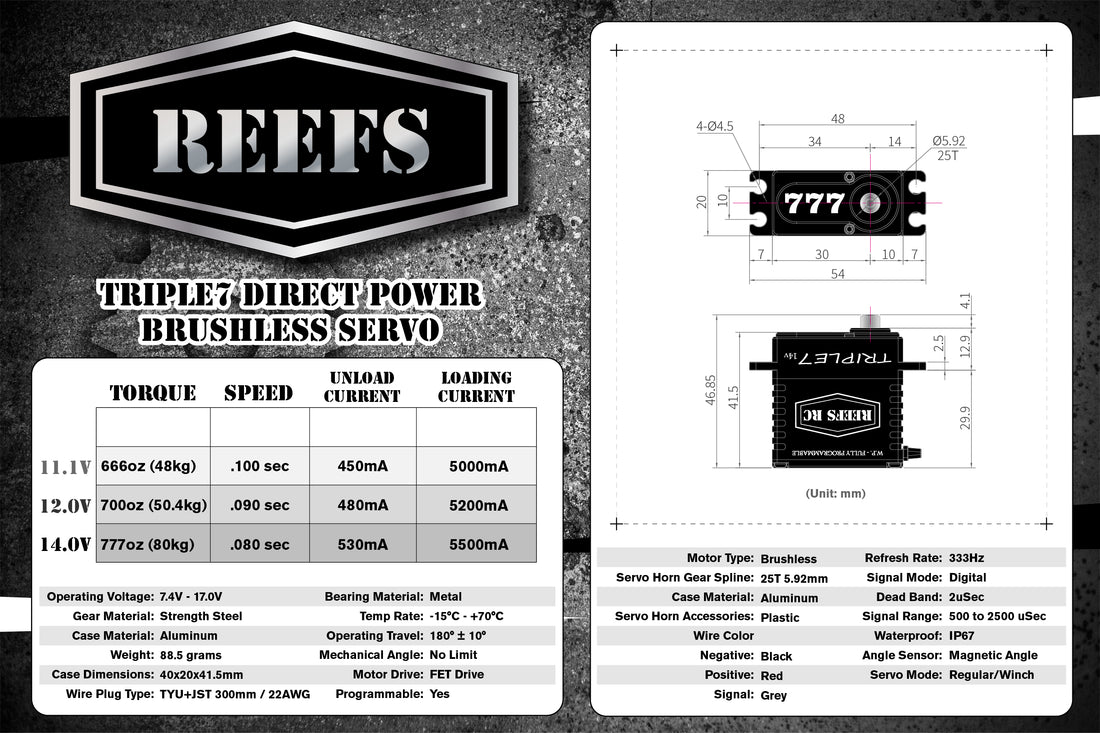

SPECIFICATIONS:
- High Torque High Speed Brushless Servo
- IP67 Rated WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software (REEFS LINK required)
- Voltage: 10V - 14V MAX
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 3 Ball Bearings / Weight: 3.12oz
- Dimensions: 1.57 x .78 x 1.63 (LWH)
- Torque: 666oz (48kg)@11.1v/ 700oz (50.4kg)@12.0v/ 777oz (56kg)@14v
- Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v
- Spline: 25T
- Dead Band Width: 2¦Ìs
UnloadCurrent
380mA@11.1V
450mA@12.0V
480mA@12.6V
LoadingCurrent
4000mA@11.1V
4500mA@12.0V
4800mA@12.6V
Product Notes: Maximum input voltage of 14 volts. Use an M3x8mm max screw size for servo horn. Do not leave servo plugged into battery when not in use or damage will occur to battery pack due to over-discharge.
Item# REEF777
